| Type code | VFOH-LE |
|---|---|
| Valve function | Exhaust air flow control non-return function |
| Pneumatic connection 1 | QS-10 |
| Pneumatic connection 2 | G¼ |
| Actuation type | Manual |
| Adjusting element | External hexagon |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 520 l/min |
| Standard nominal flow rate in non-return direction | 345 l/min … 535 l/min |
| Ambient temperature | 0 °C … 150 °C |
| Mounting position | Any |

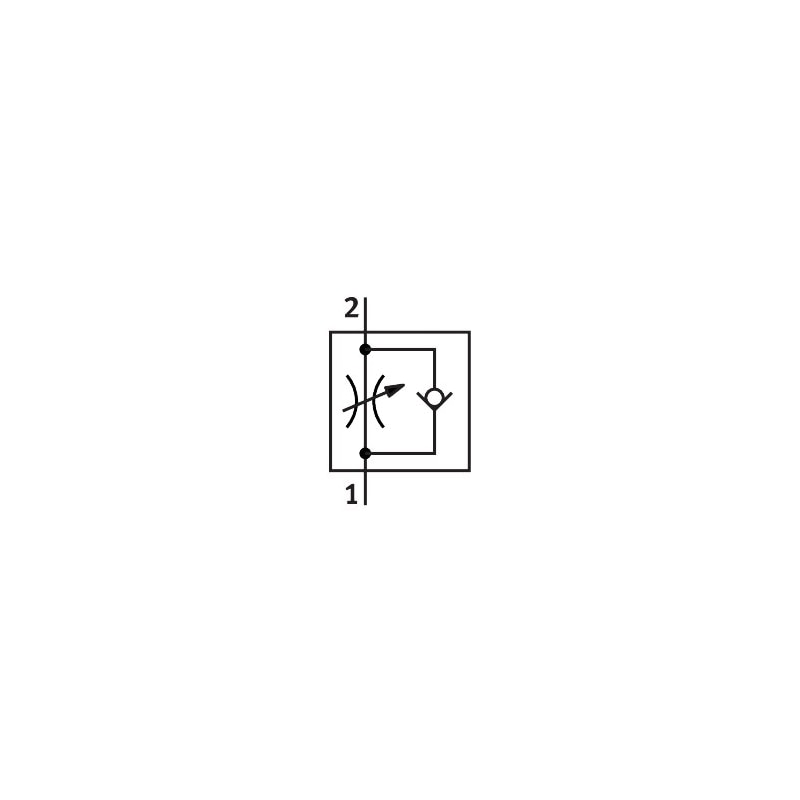

| Symbol | 991452 |
| Operating pressure for entire temperature range | 0.2 bar … 10 bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 840 l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 635 l/min … 790 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Storage temperature | -10 °C … 150 °C |
| Temperature of medium | 0 °C … 150 °C |
| Nominal tightening torque | 5 Nm |
| Tolerance for nominal tightening torque | ± 10% |
| Product weight | 48 g |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Hollow bolt material | Wrought aluminum alloy |
| Releasing ring material | Brass, nickel-plated |
| Material of adjusting screw | High-alloy stainless steel |
| Swivel joint material | BrassNickel-plated |
VFOH
VFOH-LE-A-G14-Q10
$57.34
Corrosion-resistant stop/flow control valve. Controlled via hexagon head.
| Weight | 0.117462 lbs |
|---|---|
| Dimensions | 1.811024 × 1.771654 × 0.590551 in |
| Valve Function | Exhaust air one-way flow control function |
| Standard nominal flow rate in flow control direction | 520 l/min |
| Standard nominal flow rate in blocked direction | 345 l/min – 535 l/min |
| Pneumatic connection, port 1 | QS-10 |
| Adjustment component | External hex |
