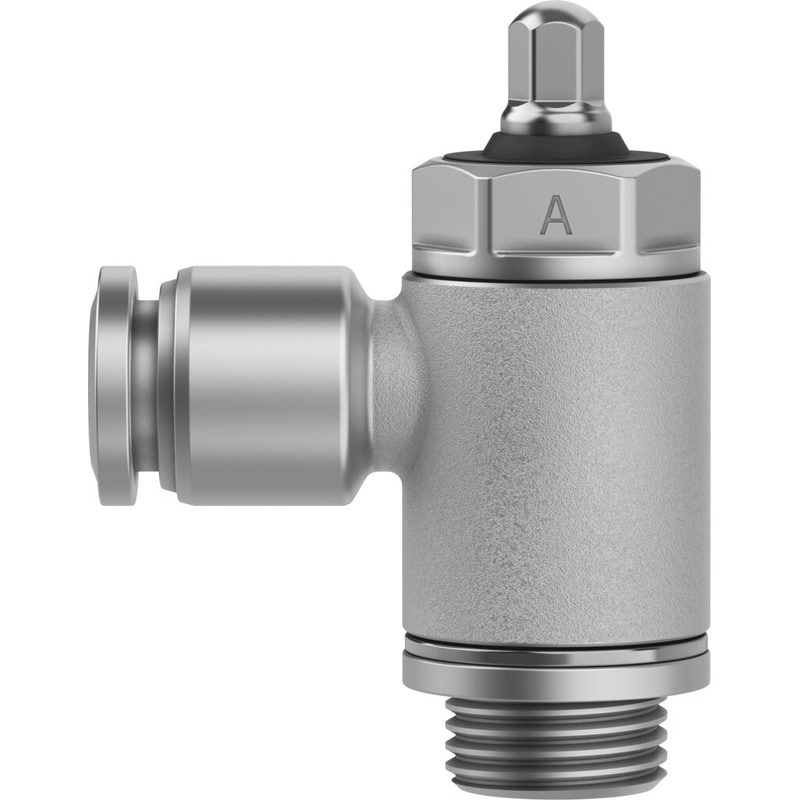

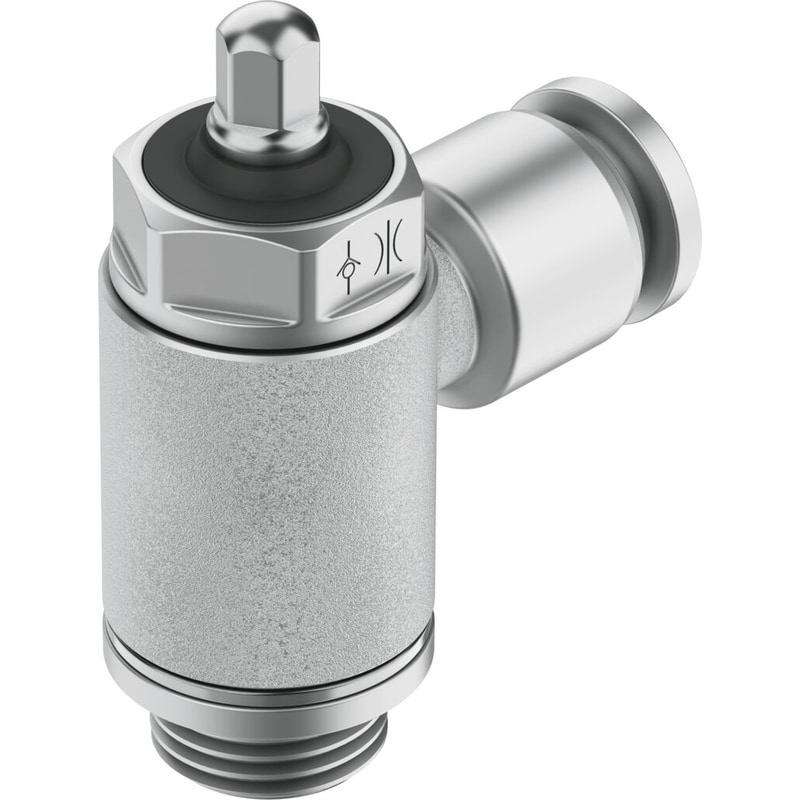

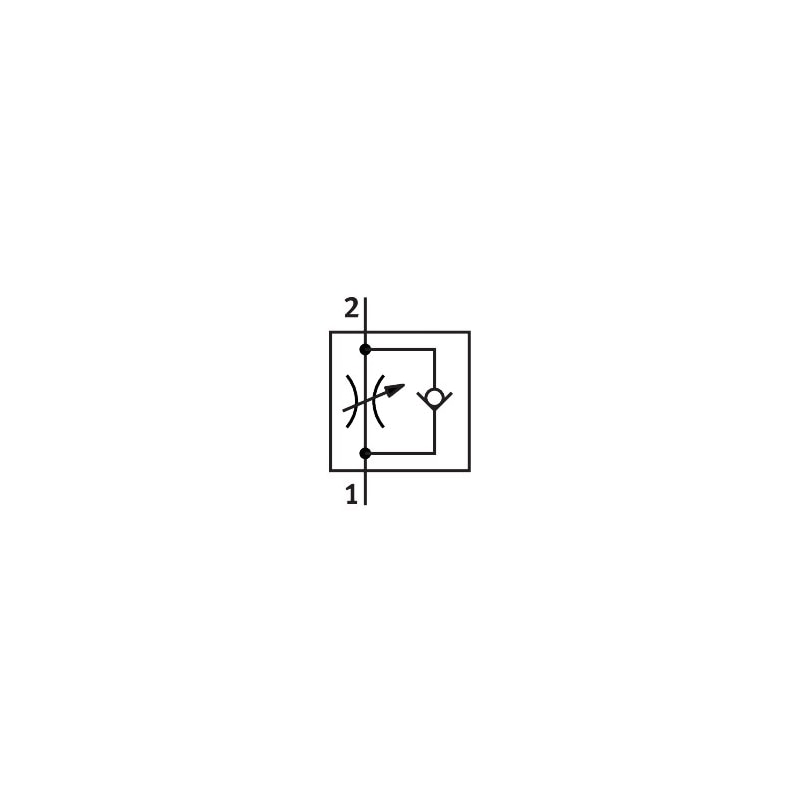

one-way flow control valve VFOH-LE-A-G14-Q8 Valve function=One-way flow control function for exhaust air, Pneumatic connection, port 1=QS-8, Pneumatic connection, port 2=G1/4, Type of actuation=manual, Adjusting element=External hex
VFOH-LE-A-G14-Q8
$52.37
SKU: 578800
UNSPSC: 40141603
GTIN: 4052568262747
Valve function | One-way flow control function for exhaust air |
---|---|
Pneumatic connection, port 1Â | QS-8 |
Pneumatic connection, port 2Â | G1/4 |
Type of actuation | manual |
Adjusting element | External hex |
Mounting type | Threaded |
Standard nominal flow rate in flow control direction | 530 l/min |
Standard nominal flow rate in non-return direction | 402 … 578 l/min |
Ambient temperature | 0 … 150 °C |
Assembly position | Any |
Operating pressure complete temperature range | 0.2 … 10 bar |
Standard flow rate in direction of flow control: 6 -> 0 bar | 720 l/min |
Standard flow rate in blocked direction: 6 -> 0 bar | 610 … 760 l/min |
