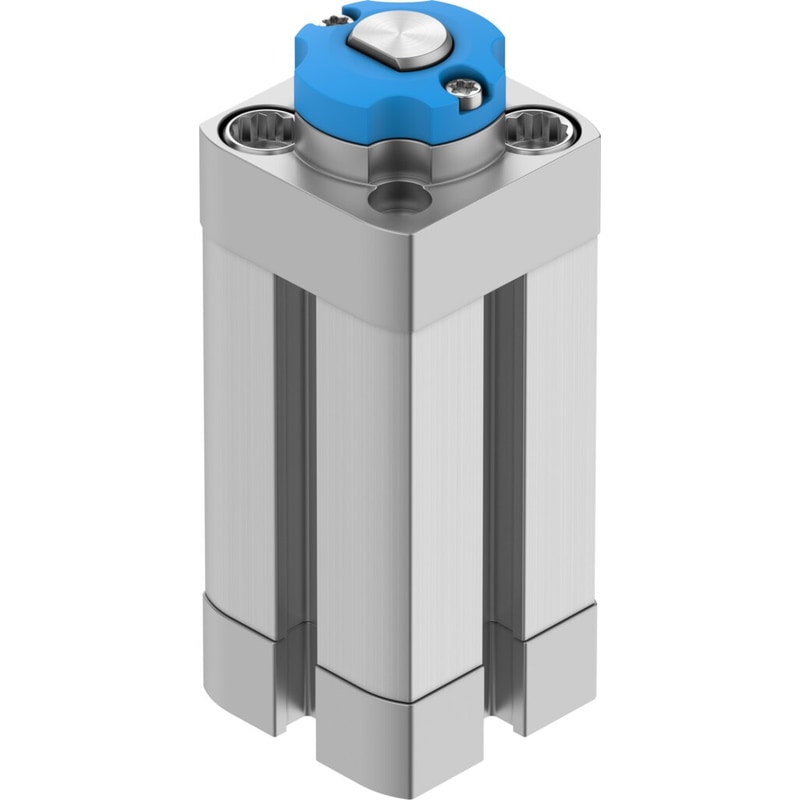

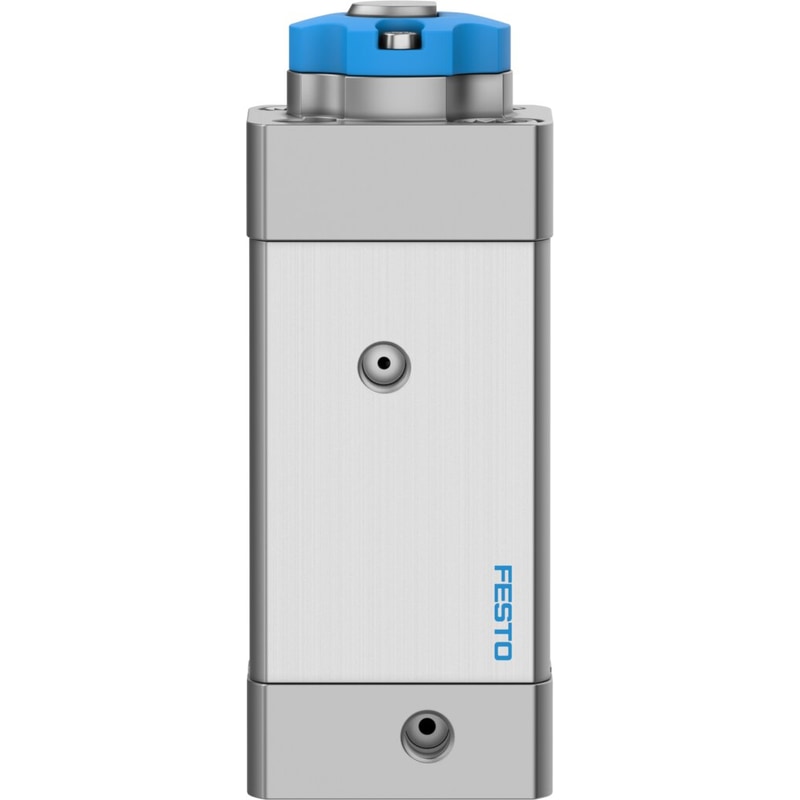

stopper cylinder DFSP-Q-16-10-DF-PA Stroke=10 mm, Piston diameter=16 mm, Piston rod thread=M3, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 10 mm |
|---|---|
| Piston diameter | 16 mm |
| Piston rod thread | M3 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | PistonPiston rodProfile barrelNon-rotating |
| Position detection | For proximity sensor |
| Piston-rod end | Female thread |
| Variants | Non-rotating piston rod |
| Protection against torque/guide | Flattened piston rod |
| Operating pressure | 1 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
