| Drive pinion effective diameter | 28.65 mm |
|---|---|
| Working stroke | 400 mm |
| Size | 80 |
| Stroke reserve | 0 mm |
| Toothed belt elongation | 0.0024 |
| Toothed belt pitch | 3 mm |
| Type code | EGC |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with toothed beltElectromechanical linear axis |
| Motor type | Servo motorStepper motor |
| Symbol | 991212 |
| Max. acceleration | 50 m/s² |
| Max. speed | 5 m/s |
| Repetition accuracy | ±0.08 mm |
| Duty cycle | 1 |
| Degree of protection | IP40 |
| Ambient temperature | -10 °C … 60 °C |
| 2nd moment of area Ix | 844000 mmâ´ |
| 2nd moment of area Iy | 1160000 mmâ´ |
| Max. force Fy | 3050 N |
| Max. force Fz | 3050 N |
| Max. no-load resistance to shifting | 28 N |
| Max. feed force Fx | 350 N |
| Torsion moment of inertia It | 551000 mmâ´ |
| Mass moment of inertia JH per meter of stroke | 0.19 kgcm² |
| Mass moment of inertia JL per kg of payload | 2.05 kgcm² |
| Feed constant | 90 mm/U |
| Material of end caps | Wrought aluminum alloyAnodized |
| Profile material | Wrought aluminum alloyAnodized |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Drive cover material | AnodizedWrought aluminum alloy |
| Slide carriage material | Steel |
| Guide rail material | Steel |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Wrought aluminum alloyAnodized |
| Toothed belt clamping component material | Cast stainless steel |
| Toothed belt material | Polychloroprene with glass cord and nylon coating |
EGC-TB
EGC-80-400-TB-KF-0H-GK
$2,165.40

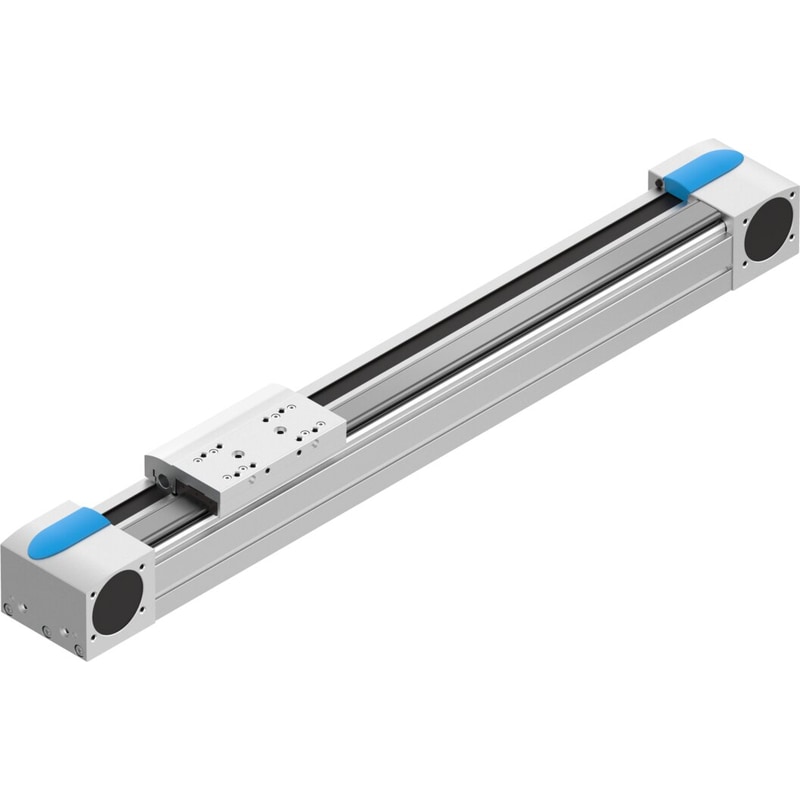

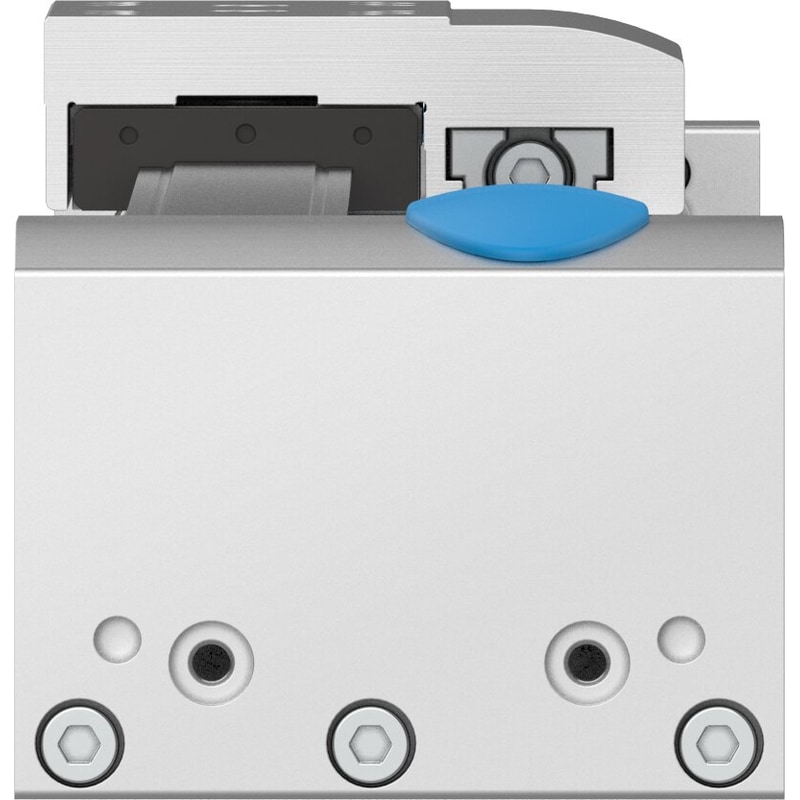

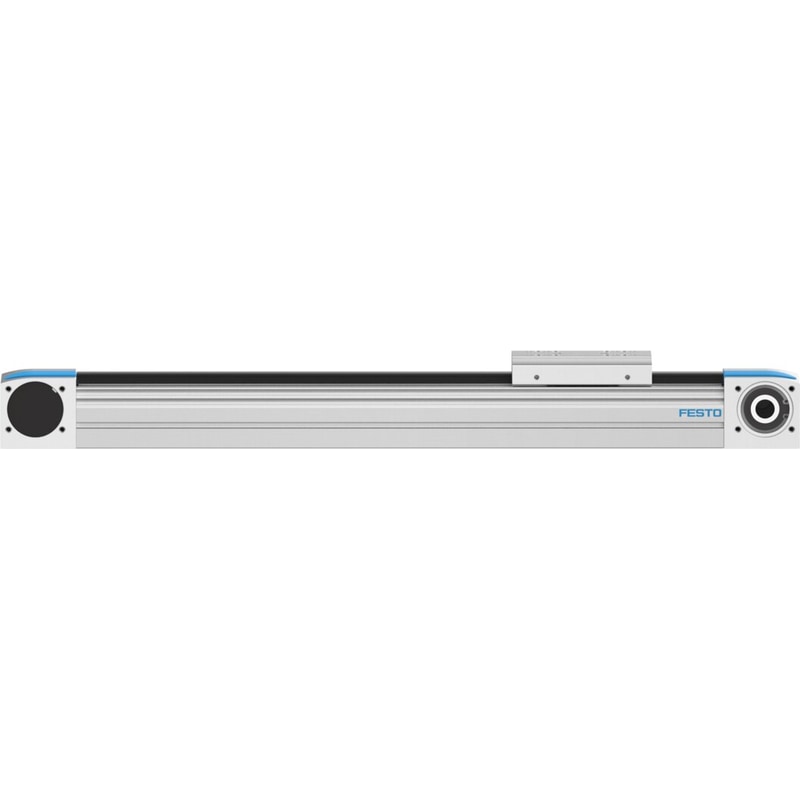

The heavy duty belt driven linear actuator EGC-TB has a unique, optimized cross section for maximum rigidity and resilience. As a dynamic linear actuator, it attains high speeds even with large loads and long strokes.
| Weight | 12.555326 lbs |
|---|---|
| Dimensions | 27.165354 × 2.952756 × 3.346457 in |
| Size | 80 |
| Max. feed force Fx | 350 N |
| Repetition accuracy | ?0.08?mm |
| Working stroke | 400 mm |
