SKU: 575615
UNSPSC: 40141603
GTIN: 4052568261528

SKU: 575615 Category:

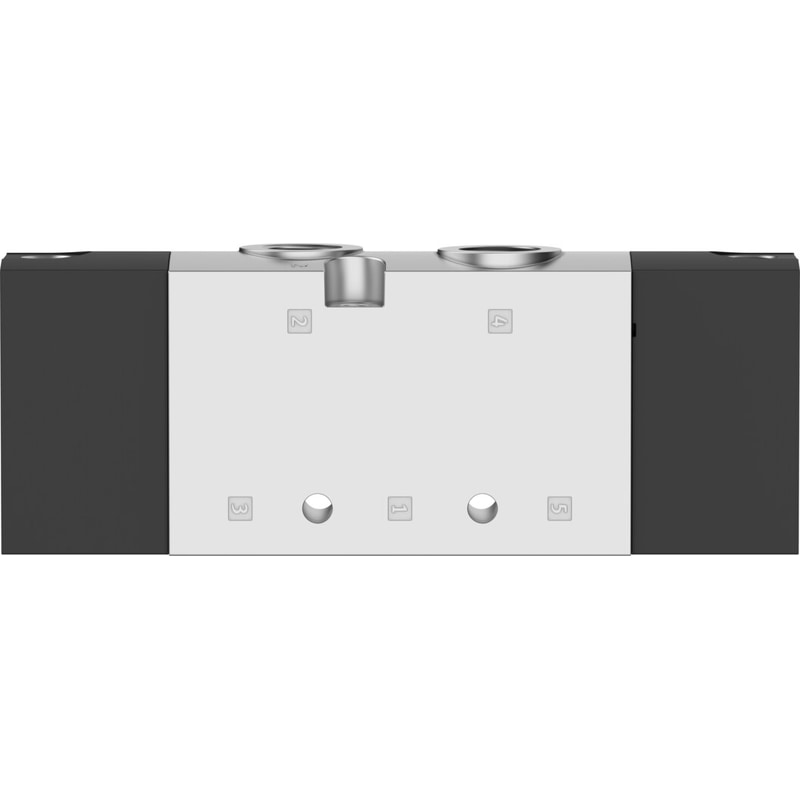

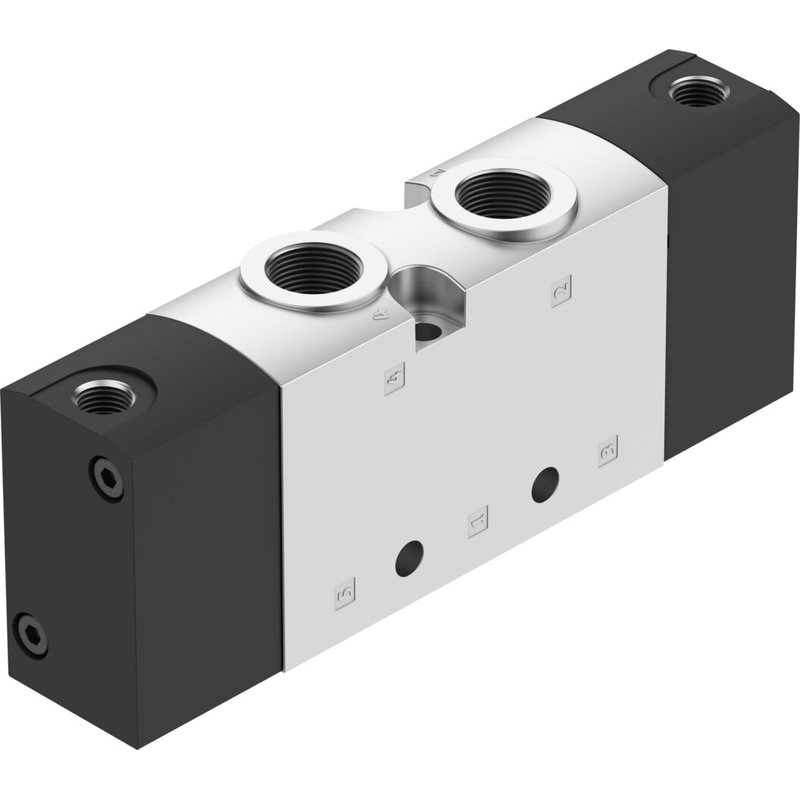

Sturdy, elegant valve with easy handling.

Valve function 5/2, bistable
Material of screws Steel, nickel-plated
Lap Overlap
Actuation type Pneumatic
Valve size 31 mm
Standard nominal flow rate 2300 l/min
Pneumatic working port G3/8
Operating pressure -0.9 bar … 10 bar
Design Piston gate valve
Certification c UL us – Recognized (OL)
Nominal width 9.4 mm
Type code VUWS
Exhaust air function With flow control option
Sealing principle Soft
Mounting position Any
Manual override None
Type of control Direct
Pilot air supply port Internal
Flow direction Reversible
Symbol 00991037
Pilot pressure 1.5 bar … 10 bar
Changeover time 13 ms
Explosion prevention and protection Observe the information on the certificateZone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
Temperature of medium -10 °C … 60 °C
Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature -10 °C … 60 °C
Product weight 545 g
Type of mounting With through-holeOn terminal stripOptionally:
