| Lap | Underlap |
|---|---|
| Nominal width | 2 mm |
| Type code | VZ |
| Actuation type | Pneumatic |
| Design | Poppet valve with return spring |

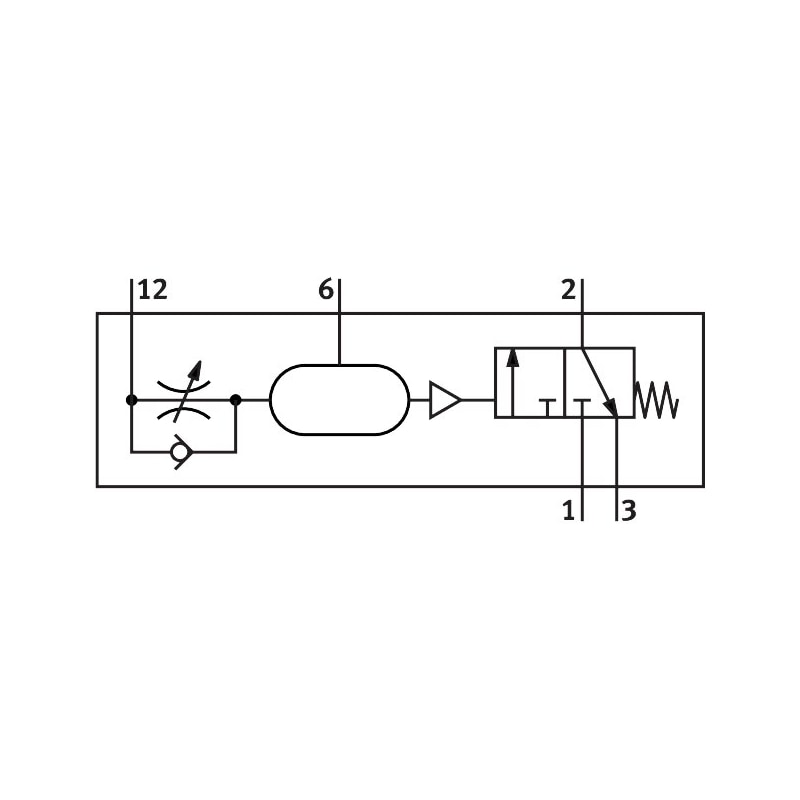

| Symbol | 991130 |
| Note on forced dynamization | Switching frequency at least once a week |
| Operating pressure | 2.5 bar … 8 bar |
| Standard nominal flow rate | 90 l/min |
| Adjustable delay time | 0.25 s … 5 s |
| Pause period for reset | ≥ 55 ms |
| Repetition accuracy of time setting | ± 0.5 s |
| Explosion prevention and protection | Zone 2 (ATEX)Observe the information on the certificateZone 1 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 150 g |
| Type of mounting | On mounting frameOptionally:Front panel mounting |
| Pneumatic connection | PK-3 |
| Housing material | Die-cast zinc |
| Weight | 0.425492 lbs |
|---|---|
| Dimensions | 3.464567 × 3.188976 × 1.771654 in |
