| Valve function | 2×3/2, closed, monostable |
|---|---|
| Lap | Overlap |
| Actuation type | Electrical |
| Valve size | 18 mm |
| Standard nominal flow rate | 880 l/min |
| Pneumatic working port | G1/4 |
| Operating voltage | 24V DC |
| Operating pressure | 1.5 bar … 8 bar |
| Design | Piston gate valve |
| Reset method | Pneumatic spring |
| Degree of protection | IP40With plug socketIP65 |
| Certification | c CSA us (OL)c UL us – Recognized (OL)RCM compliance mark |
| Nominal width | 5.7 mm |
| Type code | VUVG |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | CoveredNon-detentingDetenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |

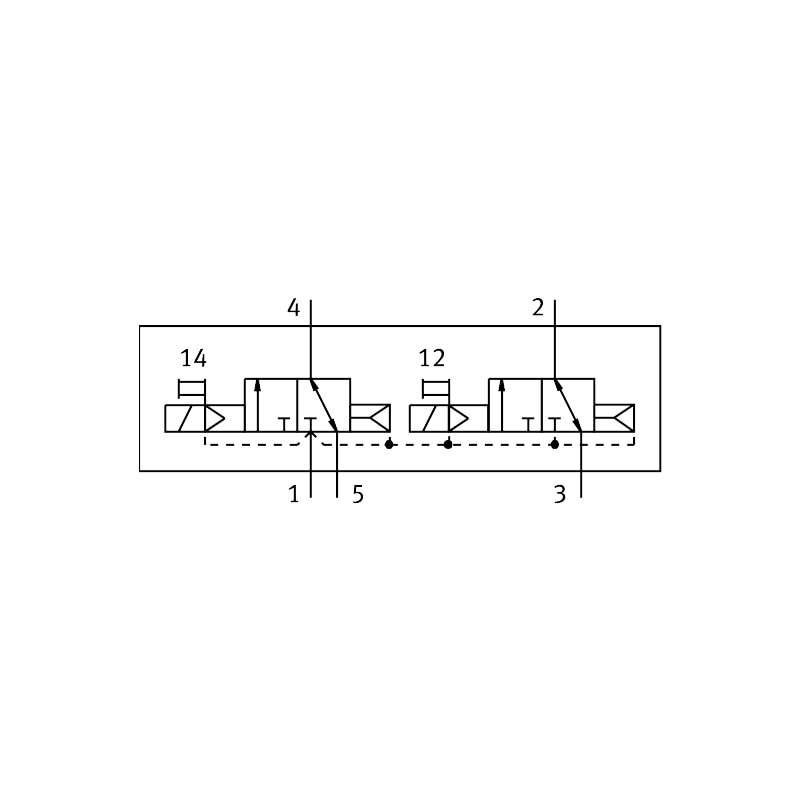

| Symbol | 992904 |
| Pilot pressure | 1.5 bar … 8 bar |
| Switching time off | 25 ms |
| Duty cycle | 1 |
| Max. positive test pulse with 0 signal | 700 µs |
| Max. negative test pulse on 1 signal | 900 µs |
| Coil characteristics | 24 V DC: 1.0 W24 V DC: low-current phase 0.3 W, high-current phase 1.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Restricted ambient and media temperature | -5 – 50 °CWithout holding power reduction |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | -5 °C … 60 °C |
| Ambient temperature | -5 °C … 60 °C |
| Product weight | 164 g |
| Electrical connection | Via electrical sub-base |
| Type of mounting | With through-holeOptionally:On terminal strip |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant |
| Seals material | HNBRNBR |
| Housing material | Wrought aluminum alloy |
VUVG

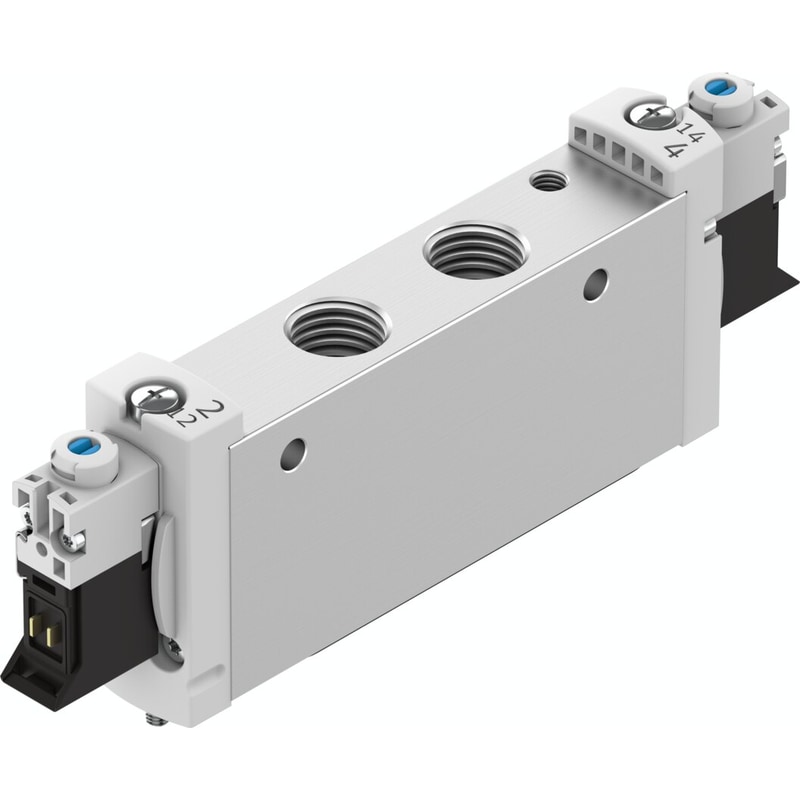

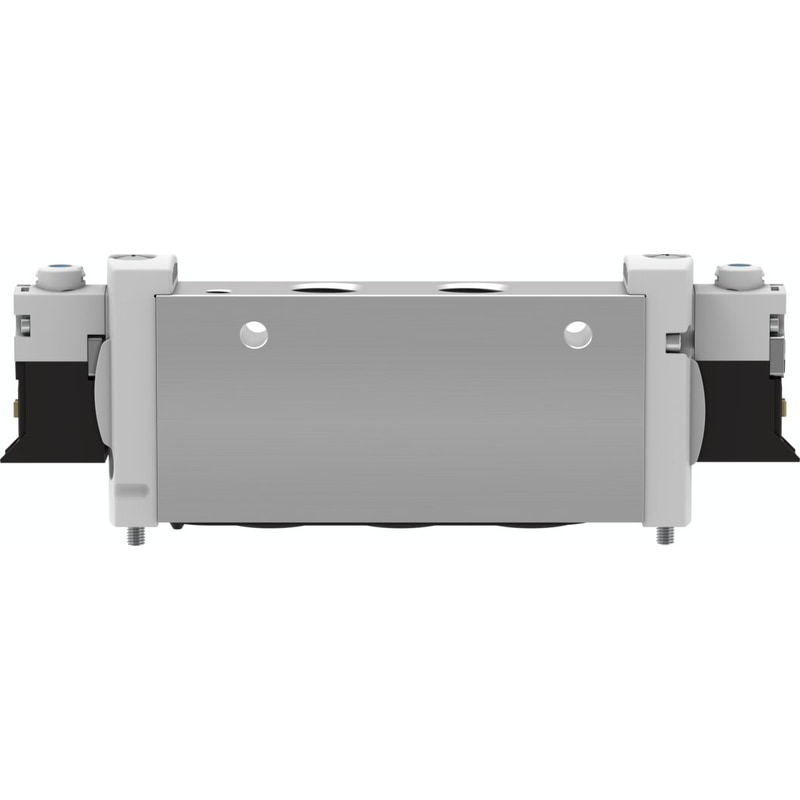

VUVG-L18-T32C-AT-G14-1P3
$101.96
The interior of this universal valve has a new design that is an outstanding combination of flow intensity and compact design. Both as an individual valve or as a valve manifold, the entire VUVG family is designed to cater precisely for all requirements.
| Weight | 0.3814 lbs |
|---|---|
| Dimensions | 5.11811 × 1.574803 × 0.708661 in |
