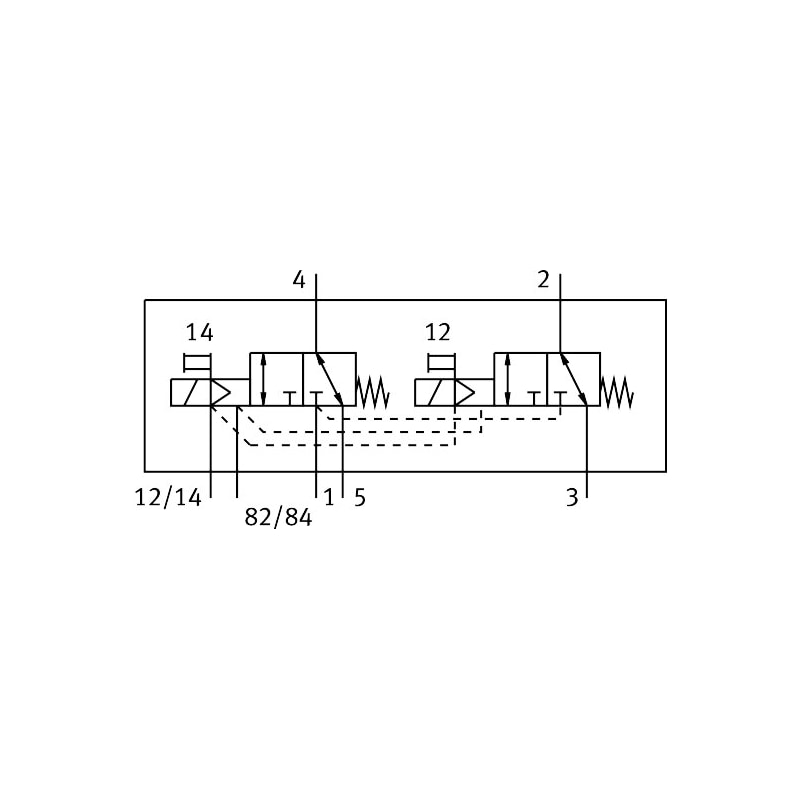

| Valve function | 2×3/2, closed, monostable |
|---|---|
| Lap | Overlap |
| Actuation type | Electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 140 l/min |
| Pneumatic working port | Flange |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar … 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | IP65IP40With plug socket |
| Certification | c CSA us (OL)c UL us – Recognized (OL)RCM compliance mark |
| Nominal width | 1.8 mm |
| Type code | VUVG |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | DetentingNon-detentingCovered |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Symbol | 992945 |
| Pilot pressure | 2 bar … 8 bar |
| Suitability for vacuum | yes |
| On switching time | 8 ms |
| Duty cycle | 1 |
| Max. positive test pulse with 0 signal | 700 µs |
| Max. negative test pulse on 1 signal | 900 µs |
| Coil characteristics | 24 V DC: 1.0 W24 V DC: low-current phase 0.3 W, high-current phase 1.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Restricted ambient and media temperature | Without holding power reduction-5 – 50 °C |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | -5 °C … 60 °C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 °C … 60 °C |
| Product weight | 54 g |
| Electrical connection | Via electrical sub-base |
| Type of mounting | On terminal strip |
| Note on materials | RoHS-compliant |
| Seals material | NBRHNBR |
| Housing material | Wrought aluminum alloy |
VUVG

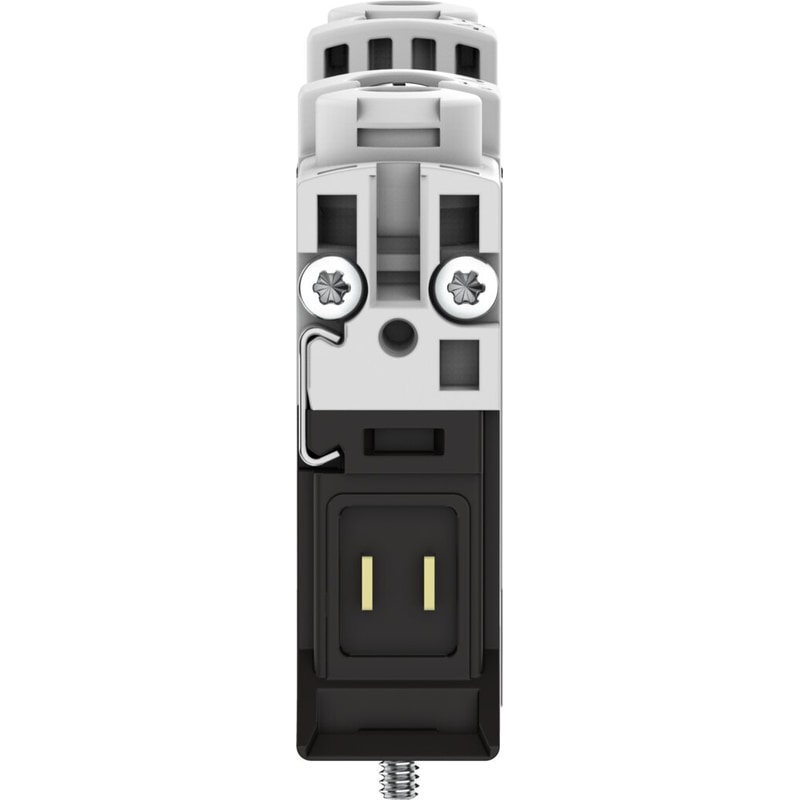

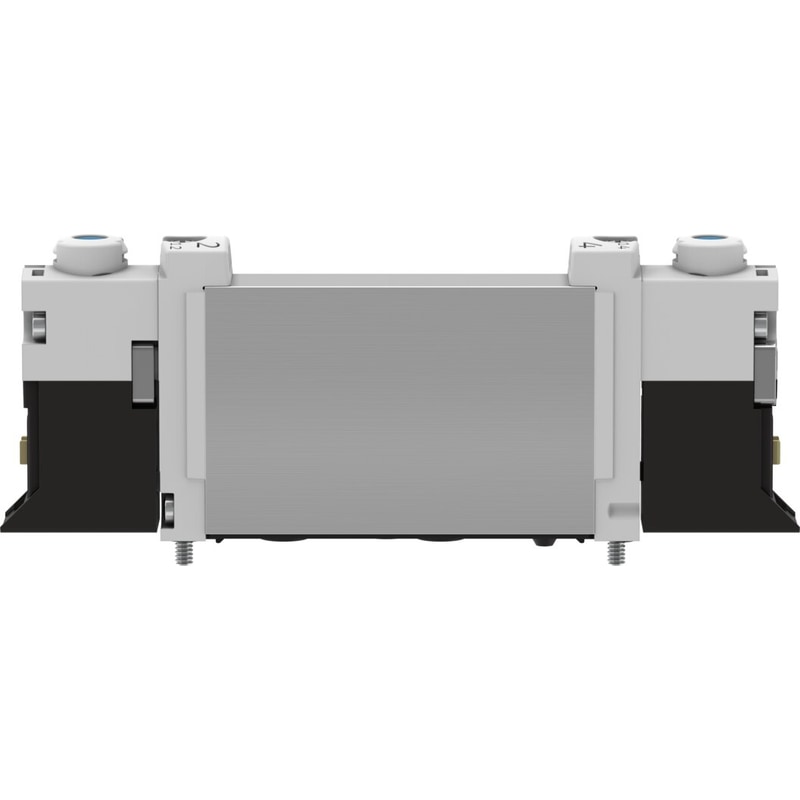

VUVG-B10-T32C-MZT-F-1P3
$92.51
The interior of this universal valve has a new design that is an outstanding combination of flow intensity and compact design. Both as an individual valve or as a valve manifold, the entire VUVG family is designed to cater precisely for all requirements.
| Weight | 0.15051 lbs |
|---|---|
| Dimensions | 3.543307 × 1.181102 × 0.787402 in |
