Compact, all-purpose solenoid valve with electric central power supply and common ground.
Valve function | 2×3/2, open, monostable |
---|---|
Lap | Overlap |
Actuation type | Electrical |
Valve size | 14 mm |
Standard nominal flow rate | 610 l/min |
Pneumatic working port | G1/8 |
Operating voltage | 24V DC |
Operating pressure | 1.5 bar … 10 bar |
Design | Piston gate valve |
Reset method | Pneumatic spring |
Degree of protection | IP65IP67 |
Certification | c CSA us (OL)c UL us – Recognized (OL) |
Type code | VUVG |
Exhaust air function | With flow control option |
Sealing principle | Soft |
Mounting position | Any |
Manual override | Non-detentingDetenting |
Type of control | Pilot-controlled |
Pilot air supply port | External |

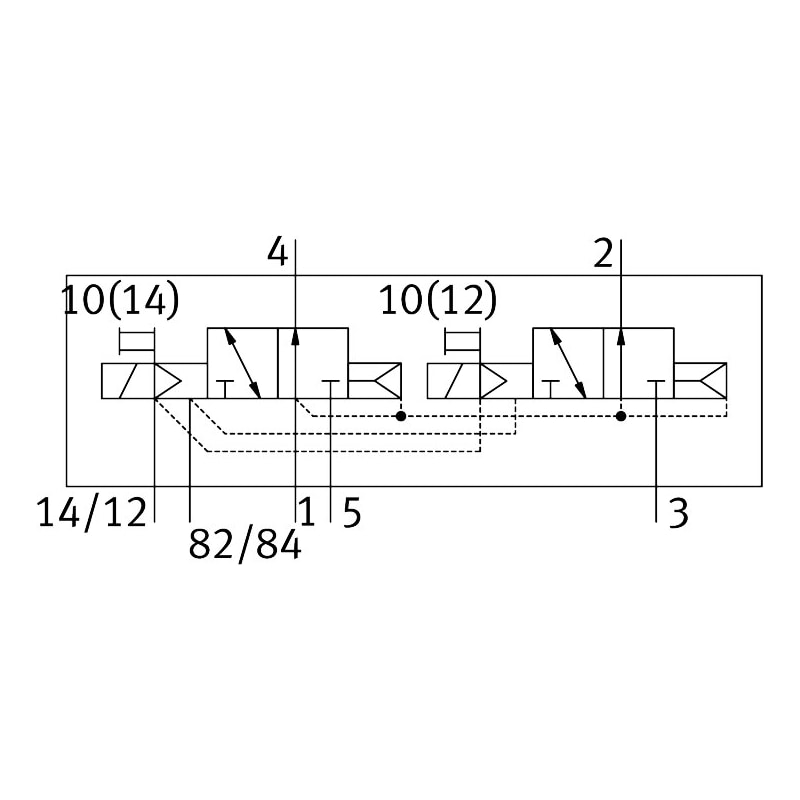

Symbol | 00992906 |
Signal status display | LED |
Pilot pressure | 1.5 bar … 8 bar |
Max. switching frequency | 3 Hz |
Switching time off | 29 ms |
On switching time | 10 ms |
Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1600 µs |
Max. negative test pulse on 1 signal | 3000 µs |
Coil characteristics | 22 V DC: 1.0 W |
Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
