VUVG-S10-T32H-MZT-M7-1T1L

$135.97

SKU: 573403
UNSPSC: 40141603
GTIN: 4052568220051

SKU: 573403 Category: Tag: Brand:

Compact, all-purpose solenoid valve with electric central power supply and common ground.

Valve function2×3/2, open/closed, monostable
LapOverlap
Actuation typeElectrical
Valve size10 mm
Standard nominal flow rate140 l/min
Pneumatic working portM7
Operating voltage24V DC
Operating pressure-0.9 bar … 10 bar
DesignPiston gate valve
Reset methodMechanical spring
Degree of protectionIP65IP67
Certificationc UL us – Recognized (OL)c CSA us (OL)
Type codeVUVG
Exhaust air functionWith flow control option
Sealing principleSoft
Mounting positionAny
Manual overrideNon-detentingDetenting
Type of controlPilot-controlled
Pilot air supply portExternal
Flow directionReversible

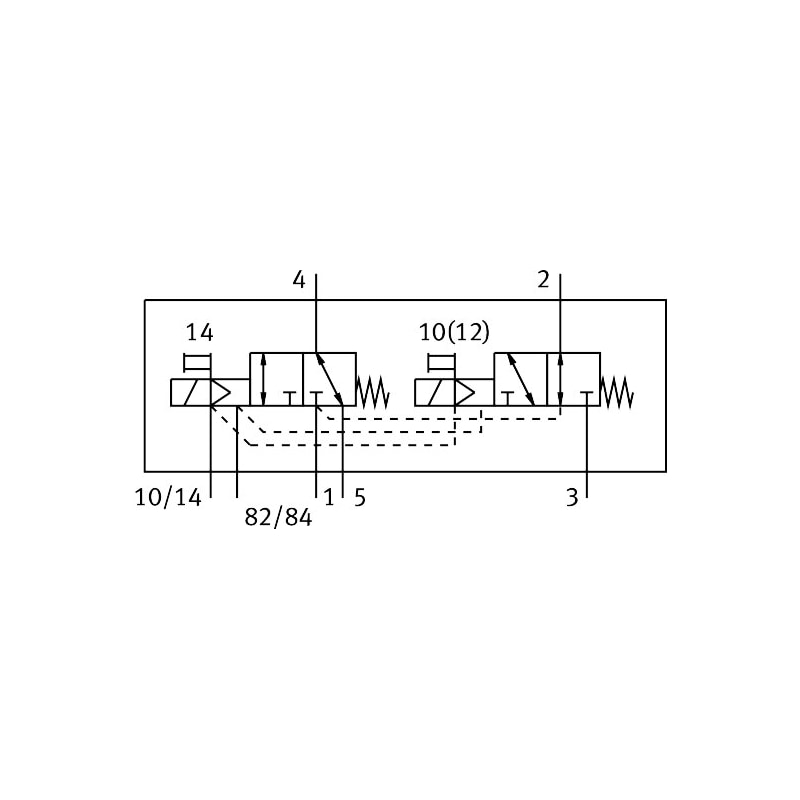

Symbol00992947
Signal status displayLED
Pilot pressure2 bar … 8 bar
Max. switching frequency3 Hz
Switching time off20 ms
On switching time10 ms
Duty cycle100%
Max. positive test pulse with 0 signal1600 µs
Max. negative test pulse on 1 signal3000 µs
Coil characteristics22 V DC: 1.0 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
