Compact, all-purpose solenoid valve with electric central power supply and common ground.
| Valve function | 2×3/2, open, monostable |
|---|---|
| Lap | Overlap |
| Actuation type | Electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 160 l/min |
| Pneumatic working port | M7 |
| Operating voltage | 24V DC |
| Operating pressure | 1.5 bar … 10 bar |
| Design | Piston gate valve |
| Reset method | Pneumatic spring |
| Degree of protection | IP65IP67 |
| Certification | c CSA us (OL)c UL us – Recognized (OL) |
| Type code | VUVG |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | DetentingNon-detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |

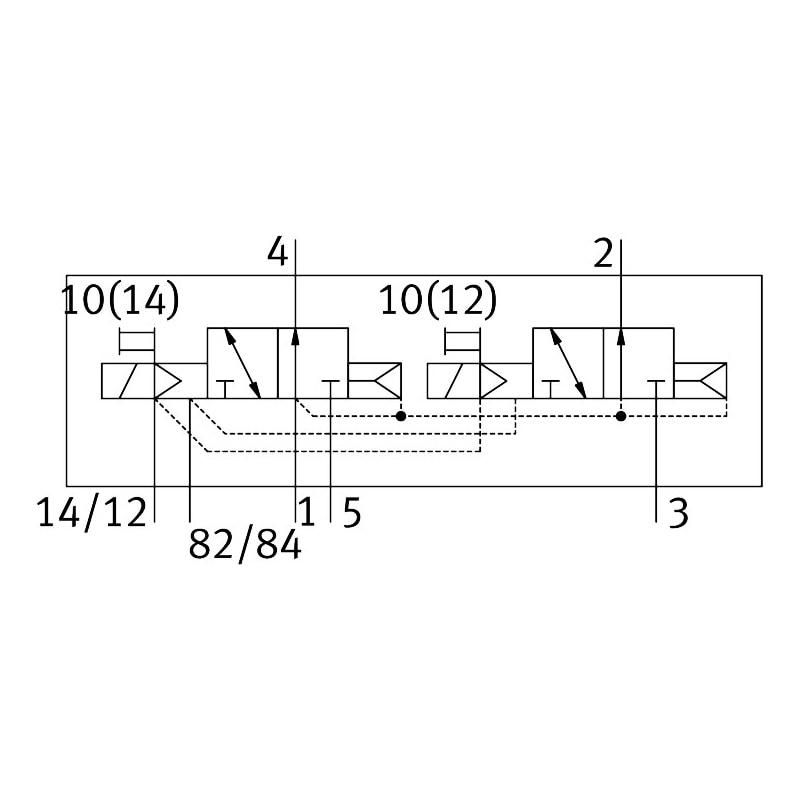

| Symbol | 00992906 |
| Signal status display | LED |
| Pilot pressure | 1.5 bar … 8 bar |
| Max. switching frequency | 3 Hz |
| Switching time off | 20 ms |
| On switching time | 8 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1600 µs |
| Max. negative test pulse on 1 signal | 3000 µs |
| Coil characteristics | 22 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
