Name: Soft start/quick exhaust valve MS9-SV-G-C-V24-S-VS
Brand: Festo
SKU: 570737
Availability: InStock

Soft start/quick exhaust valve MS9-SV-G-C-V24-S-VS

$647.73

SKU: 570737
UNSPSC: 40141603
GTIN: 4052568217273

soft-start/quick exhaust valve MS9-SV-G-C-V24-S-VS For the soft-start and quick exhaust of system components. Series=MS, Size=9, Grid dimension=90 mm, Safety function=Exhausting, Performance level (PL)=Exhausting / up to Category 1, Performance Level c

Series	MS
Size	9
Grid dimension	90 mm
Safety function	Exhausting
Performance level (PL)	Exhausting / up to Category 1, Performance Level c
Design structure	Piston slide
Type of actuation	electrical
Sealing principle	soft
Exhaust-air function	not throttleable
Manual override	None
Type of reset	mechanical spring
Type of piloting	Piloted
Valve function	3/2 closed, monostablePressure build-up function

Weight	9.561448 lbs
Dimensions	22.440945 × 8.661417 × 9.645669 in
Series	MS
Size	9
Width dimension	90 mm
Safety function	Exhausting
Performance Level (PL)	Exhaust/up to category 1, performance level c
Structural design	Piston gate valve
Actuation type	Electrical
Sealing principle	Soft
Exhaust air function	Without flow control option
Manual override	None
Reset method	Mechanical spring
Type of control	Pilot-controlled

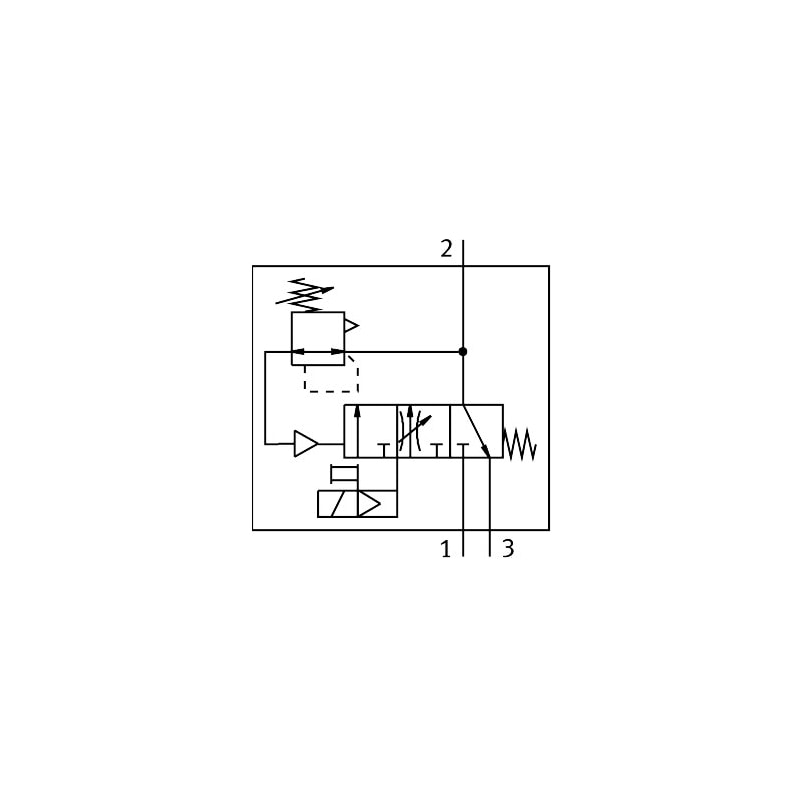

Symbol	00995240
Valve Function	3/2, closed, monostable \| Pressure build-up function
Operating pressure	3.5 bar … 16 bar
Normal nominal flow rate (normalized to DIN 1343)	8300 l/min … 16550 l/min
Standard flow rate exhaust 6-> 0 bar	19730 l/min … 21720 l/min
Duty cycle	100%
Coil characteristics	24 V DC: 8.4 W
Nominal operating voltage DC	24 V
Permissible voltage fluctuations	+/- 10 %
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
Note on materials	RoHS-compliant
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Noise level	93 dB(A)
Degree of protection	IP65
Temperature of medium	0 °C … 60 °C
Ambient temperature	0 °C … 60 °C
Storage temperature	0 °C … 60 °C
Shock resistance	Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Vibration resistance	Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
CE marking (see declaration of conformity)	As per EU EMC directive, as per EU machinery directive, As per EU RoHS directive
UKCA marking (see declaration of conformity)	To UK instructions for EMC, To UK instructions for machines, To UK RoHS instructions
Type of mounting	Optionally: \| Line installation \| With accessories
Mounting position	Any
Product weight	3200 g
Pressure gauge connection	G1/8, G1/4
Pneumatic connection 3	G1 \| 1 NPT
Electrical connection	Form A \| Plug \| as per EN 175301-803 \| Rectangular design
Housing material	Die-cast aluminum
Seals material	NBR
Piston slide material	Brass
Cover material	Wrought aluminum alloy
Lower cover material	PA

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Soft start/quick exhaust valve MS9-SV-G-C-V24-S-VS

Reviews

Reach Out

Connect With Us

Soft start/quick exhaust valve MS9-SV-G-C-V24-S-VS

Reviews

Frequently Bought Together

U-1/2-B

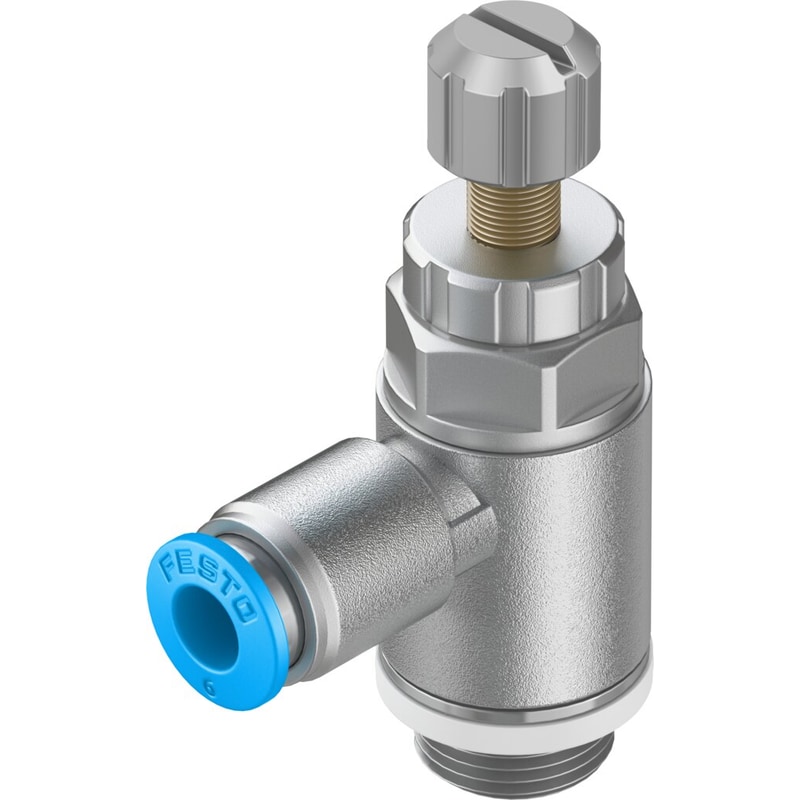

GRLA-1/4-QS-8-RS-D
