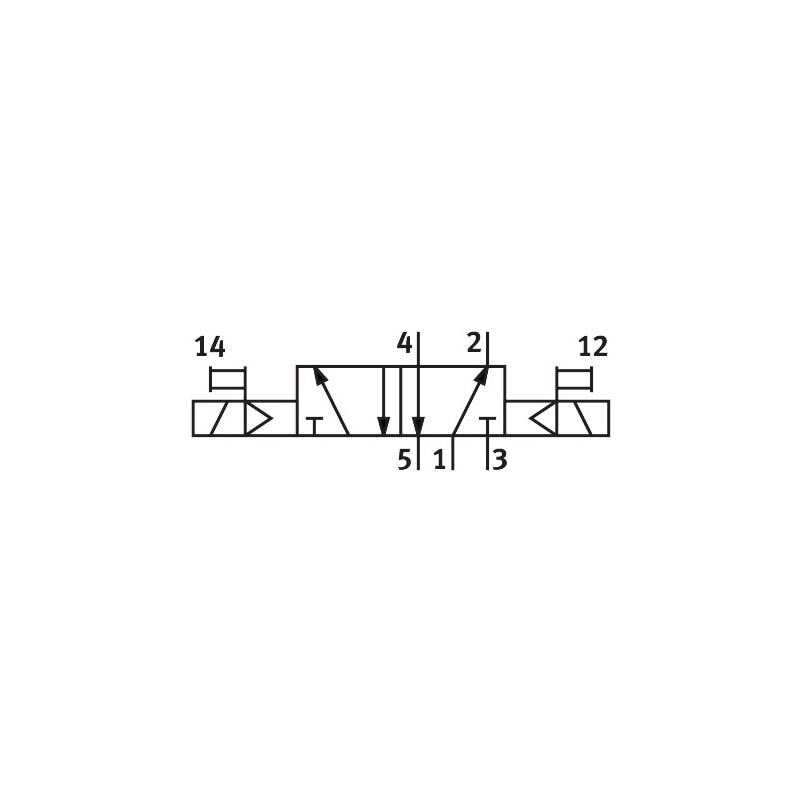

solenoid valve VSVA-B-B52-D-D2-1R5L Valve function=5/2 bistable, Type of actuation=electrical, Width=52 mm, Standard nominal flow rate=2800 l/min, Operating pressure=3 – 10 bar
| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Width | 52 mm |
| Standard nominal flow rate | 2,800 l/min |
| Operating pressure | 3 … 10 bar |
| Design structure | Piston slide |
| Protection class | IP65NEMA 4 |
| Authorisation | C-Tickc CSA us (OL)c UL us – Recognized (OL) |
| Nominal size | 15 mm |
| Grid dimension | 59 mm |
| Exhaust-air function | throttleable- via flow control plate- via individual sub-base |
| Sealing principle | soft |
| Assembly position | Any |
