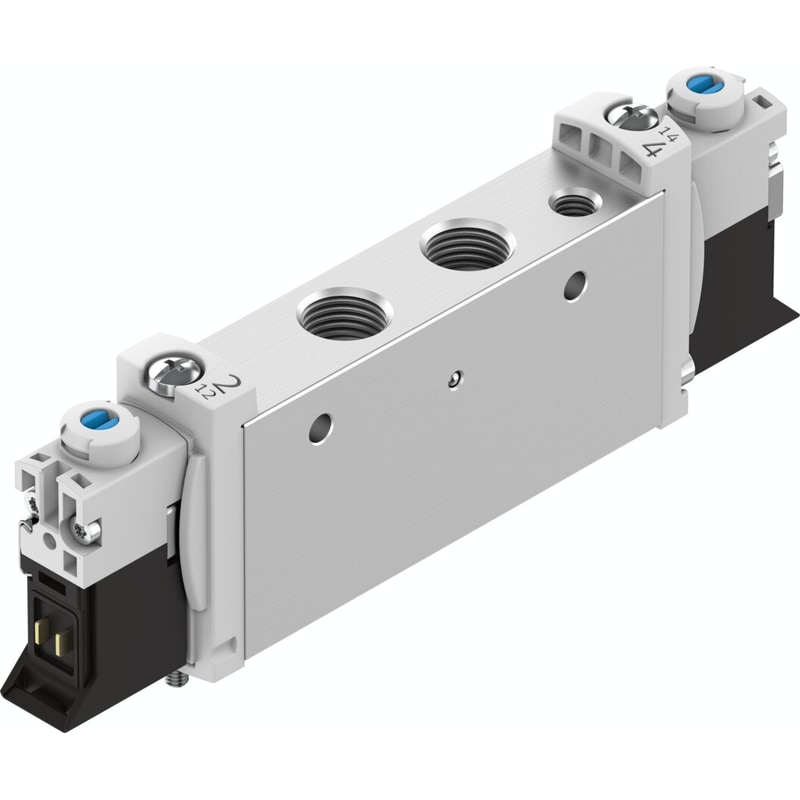

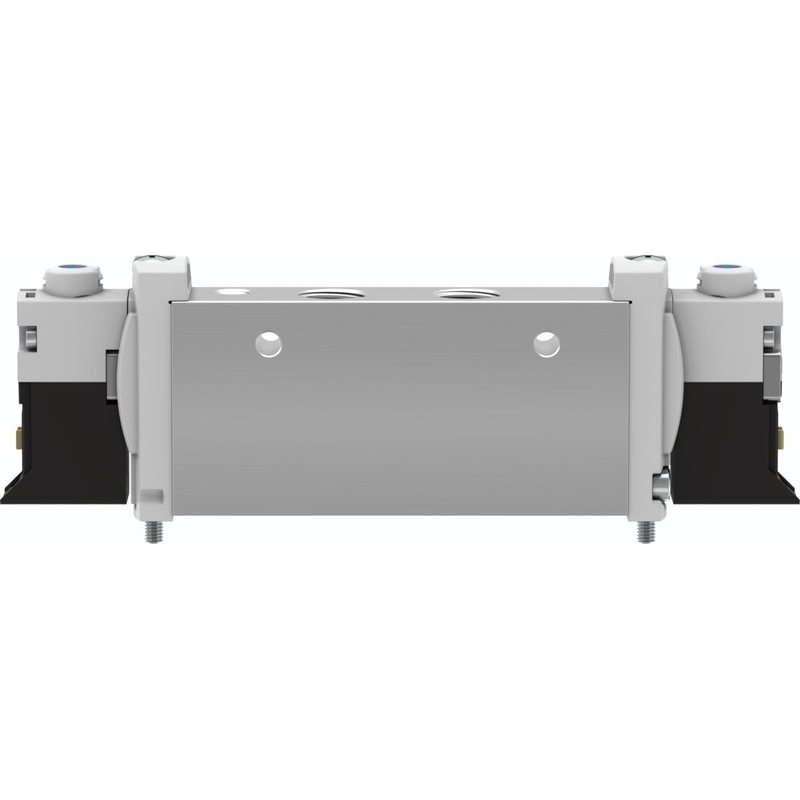

The interior of this universal valve has a new design that is an outstanding combination of flow intensity and compact design. Both as an individual valve or as a valve manifold, the entire VUVG family is designed to cater precisely for all requirements.
| Valve function | 5/3, closed |
|---|---|
| Lap | Overlap |
| Actuation type | Electrical |
| Valve size | 14 mm |
| Standard nominal flow rate | 620 l/min … 650 l/min |
| Pneumatic working port | G1/8 |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar … 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | IP40IP65With plug socket |
| Certification | c CSA us (OL)RCM compliance markc UL us – Recognized (OL) |
| Nominal width | 5.6 mm |
| Type code | VUVG |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Non-detentingDetentingCovered |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |

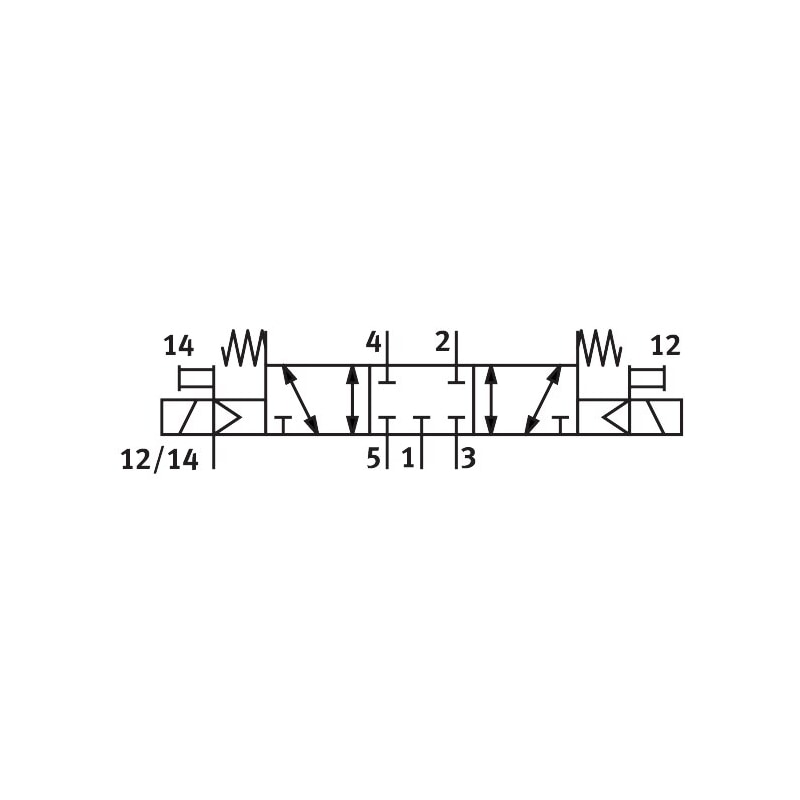

| Symbol | 00991751 |
| Pilot pressure | 3 bar … 8 bar |
| Suitability for vacuum | yes |
| Switching time off | 40 ms |
| On switching time | 12 ms |
| Changeover time | 20 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700 µs |
| Max. negative test pulse on 1 signal | 900 µs |
| Coil characteristics | 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W24 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
