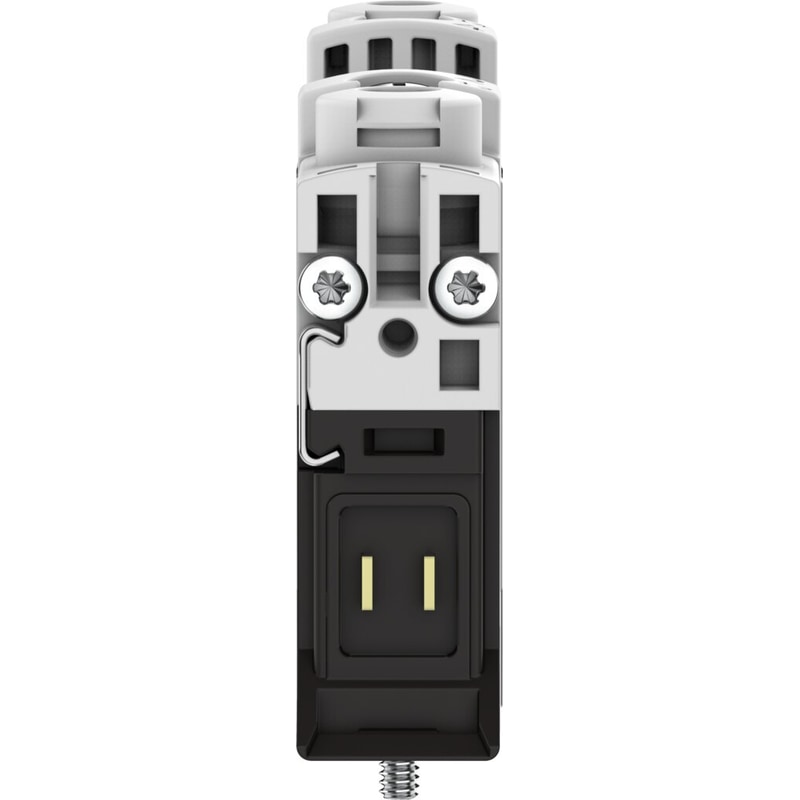

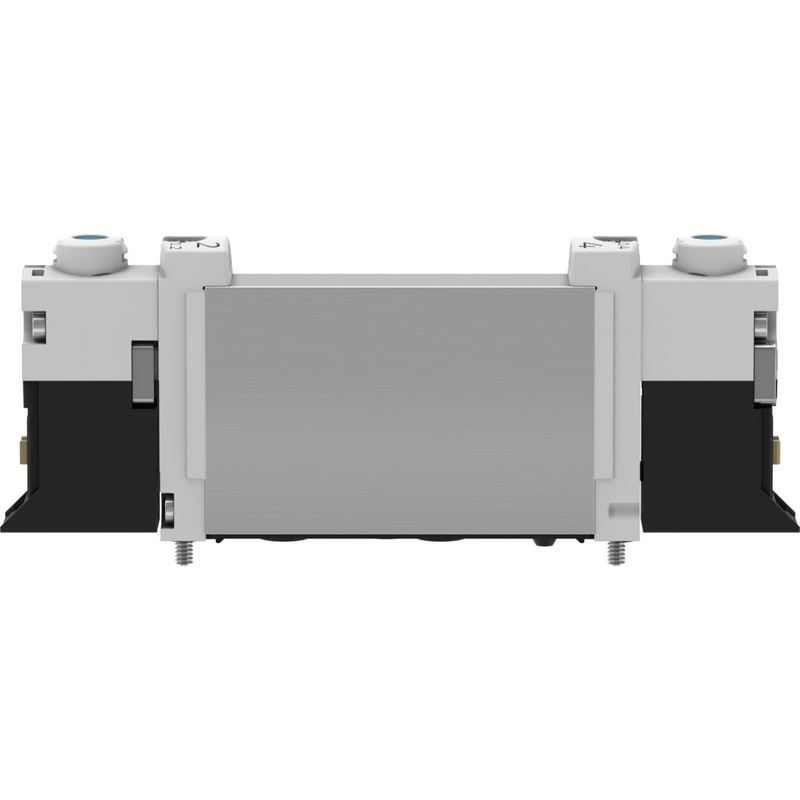

VUVG-B10-T32H-AZT-F-1P3

$73.41

SKU: 566489
UNSPSC: 40141603
GTIN: 4052568213954

SKU: 566489 Category: Tag:
Festo

The interior of this universal valve has a new design that is an outstanding combination of flow intensity and compact design. Both as an individual valve or as a valve manifold, the entire VUVG family is designed to cater precisely for all requirements.

Valve function 2×3/2, open/closed, monostable
Lap Overlap
Actuation type Electrical
Valve size 10 mm
Standard nominal flow rate 150 l/min … 170 l/min
Pneumatic working port Flange
Operating voltage 24V DC
Operating pressure 1.5 bar … 10 bar
Design Piston gate valve
Reset method Pneumatic spring
Degree of protection IP40IP65With plug socket
Certification c UL us – Recognized (OL)c CSA us (OL)RCM compliance mark
Nominal width 2.7 mm
Type code VUVG
Exhaust air function With flow control option
Sealing principle Soft
Mounting position Any
Manual override Non-detentingDetentingCovered
Type of control Pilot-controlled
Pilot air supply port External

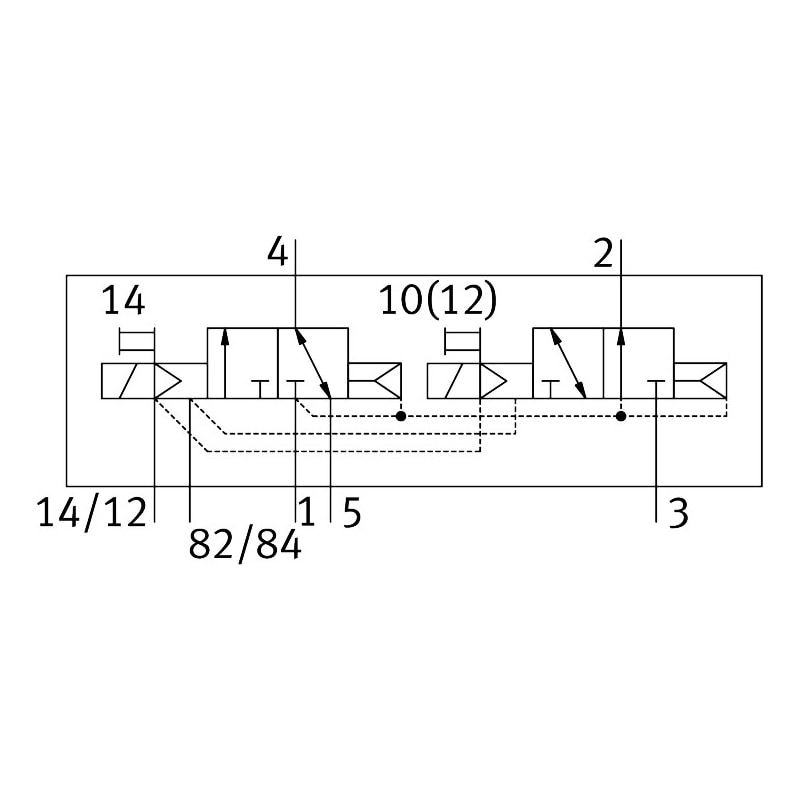

Symbol 00992909
Pilot pressure 1.5 bar … 8 bar
Suitability for vacuum no
Switching time off 16 ms
On switching time 6 ms
Duty cycle 100%
Max. positive test pulse with 0 signal 700 µs
Max. negative test pulse on 1 signal 900 µs
Coil characteristics 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W24 V DC: 1.0 W
Permissible voltage fluctuations +/- 10 %
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
