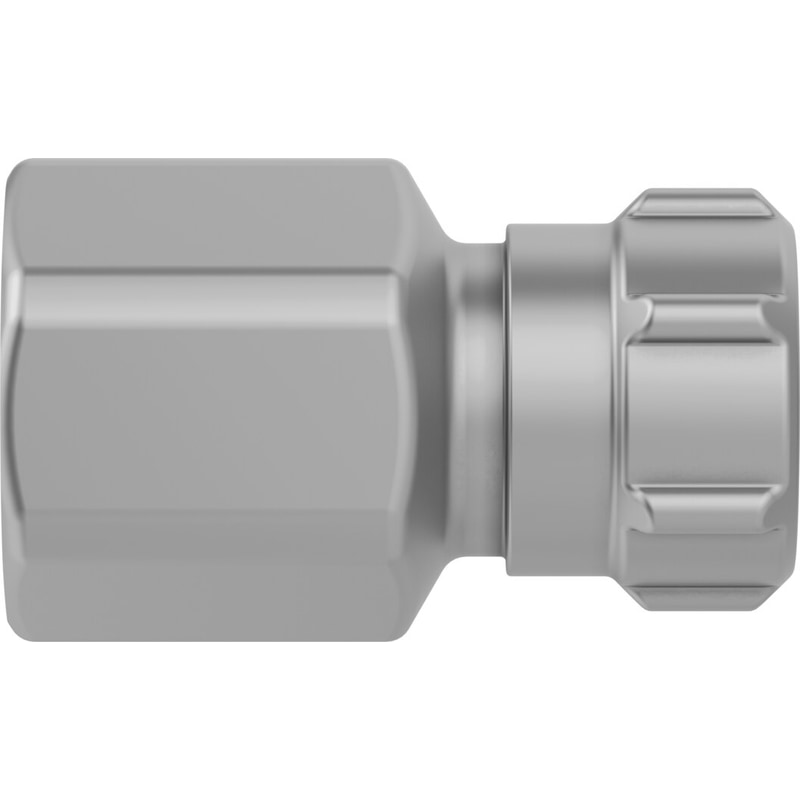

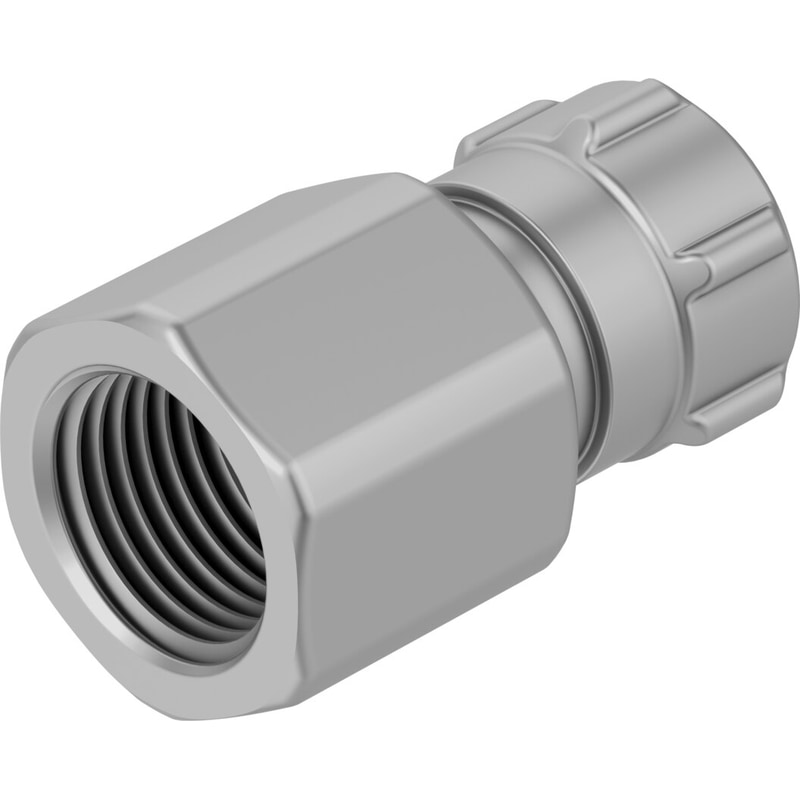

quick connector ACK-1/8-PK-3 Female thread with sealing ring. Nominal size=2,4 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Operating medium=(* Compressed air in accordance with ISO8573-1:2010 [7:-:-], * Water as per manufacturer’s declaration at www.festo.com), Note on operating and pilot medium=Lubricated operation possible
| Fitting Type | n/a |
|---|---|
| Nominal size | 2.4 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Ambient temperature | ‘-10 … 60 °C |
| Maritime classification | see certificate |
| connection 1Â | Female thread G1/8 |
| connection 2Â | For tubing outside diameter 4 mm |
| Materials note | Conforms to RoHS |
| Material housing | Aluminium |
