| Stroke | 50 mm |
|---|---|
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Wide rod clevis/swivel mounting | 19.5 mm |
| Type code | DW |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Design | Piston rod with rod clevisCylinder barrelSwivel mounting on bearing capPiston |
| Velocity control | Integrated flow control at both ends |
| Position sensing | For proximity sensor |
| Piston rod end | External thread with rod clevis |
| Operating pressure | 1 bar … 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Ambient temperature | -10 °C … 60 °C |
| Impact energy in the end positions | 1.3 J |
| Cushioning length | 20 mm |
| Theoretical force at 6 bar, retracting | 1682 N |
| Theoretical force at 6 bar, advancing | 1870 N |
| Moving mass at 0 mm stroke | 741 g |
| Additional weight per 10 mm stroke | 42 g |
| Additional moving mass per 10 mm stroke | 25 g |
| Alternative connections | See product drawing |
| Type of mounting | With accessoriesWith swivel mounting on bearing cap |
| Pneumatic connection | G1/4 |
| Rod clevis material | Cast steelTempered steel |
| Note on materials | RoHS-compliant |
| Scraper material | Bronze |
| Cover material | Die-cast aluminumAnodized |
| Seals material | NBR |
| Piston rod material | Hard-chrome-platedTempered steel |
| Material of cylinder barrel | Wrought aluminum alloyAnodized |
DW

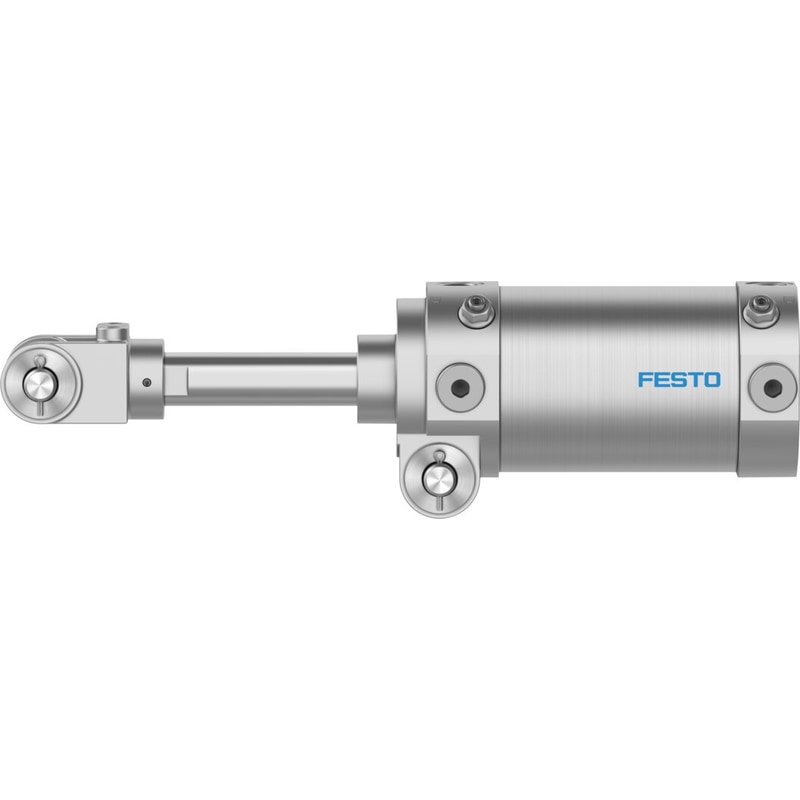

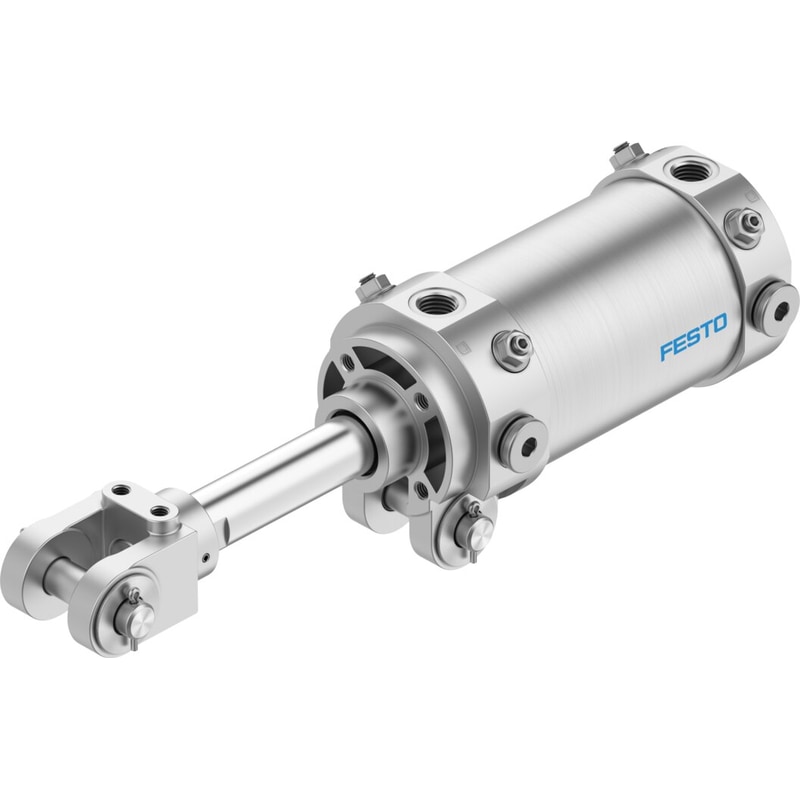

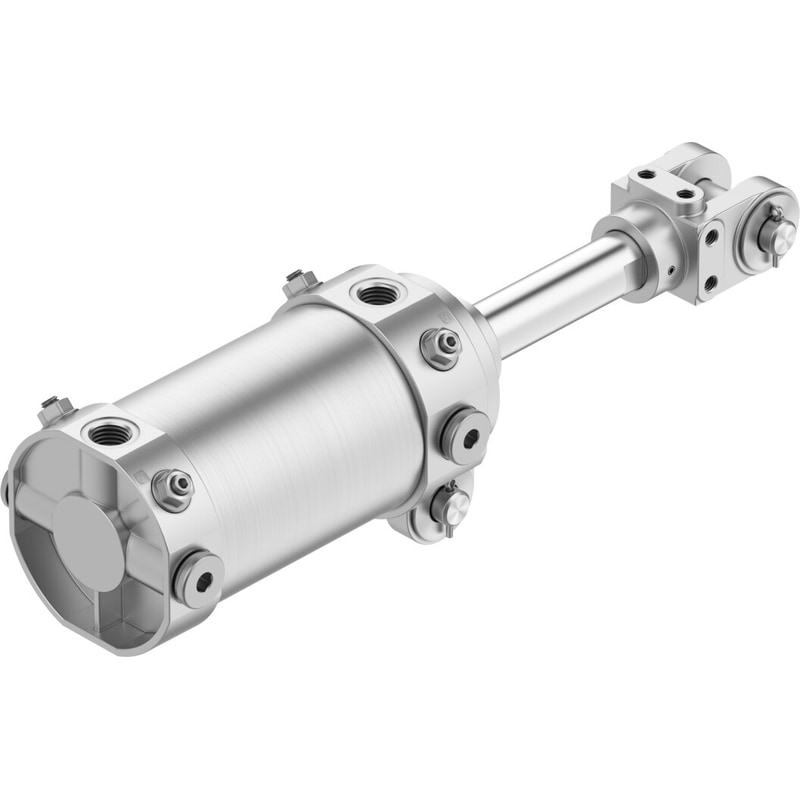

DWB-63-50-Y-AB-G
$248.13
Ideal for clamping components in welding processes: the round cylinder DW in an articulated design. Joint yoke on the bearing cap.
| Piston diameter | 63 mm |
|---|---|
| Stroke | 50 mm |
| Pneumatic connection | G1/4 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 1870 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 1682 N |
