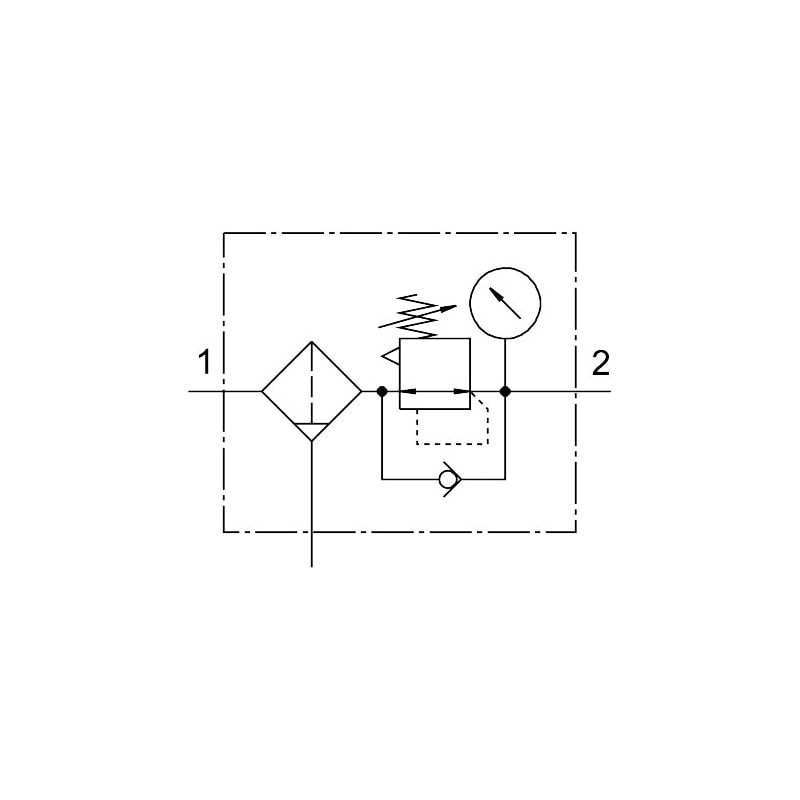

filter regulator MS9-LFR-NG-D6-CUM-DI-AG-PSI-AS Maximum output pressure 7 bar, 5 µm filter, with pressure gauge, lockable regulator head, metal bowl guard, manual condensate drain, flow direction from left to right. Size=9, Series=MS, Actuator lock=with accessories, lockable, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| Size | 9 |
|---|---|
| Series | MS |
| Actuator lock | with accessories, lockable |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual rotary |
| Design structure | Directly actuated filter diaphragm regulator |
| Max. condensate volume | 220 ml |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 … 20 bar |
| Pressure regulation range | 0.5 … 7 bar |
| Max. pressure hysteresis | 0.4 bar |
