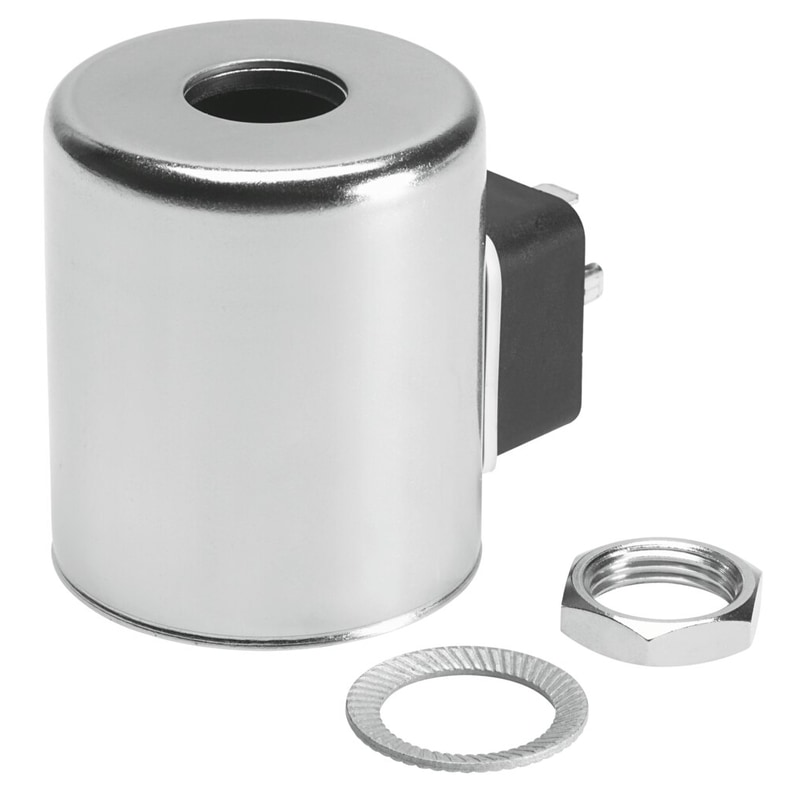

solenoid coil VACC-S18-35-A1-3A Solenoid coil, 18 mm shaft, type A connection pattern, to ENÂ 175Â 301, 230Â VÂ AC/50-60Â Hz Type of actuation=electrical, Assembly position=Any, Switching position indicator=No, Duty cycle=100%, Insulation class=H
| Type of actuation | electrical |
|---|---|
| Assembly position | Any |
| Switching position indicator | No |
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 230 V AC: 50/60 Hz, power: 3.5 VA |
| Permissible voltage fluctuation | ‘-15 % / +10 % |
| CE mark (see declaration of conformity)Â | to EU directive low-voltage devices |
| Corrosion resistance classification CRCÂ | 4 – Very high corrosion stress |
| Protection class | IP65 |
| Ambient temperature | ‘-20 … 60 °C |
| Product weight | 580 g |
| Electrical connection | Plugto EN 175301-803Plug pattern type A to EN 175301-803 |
