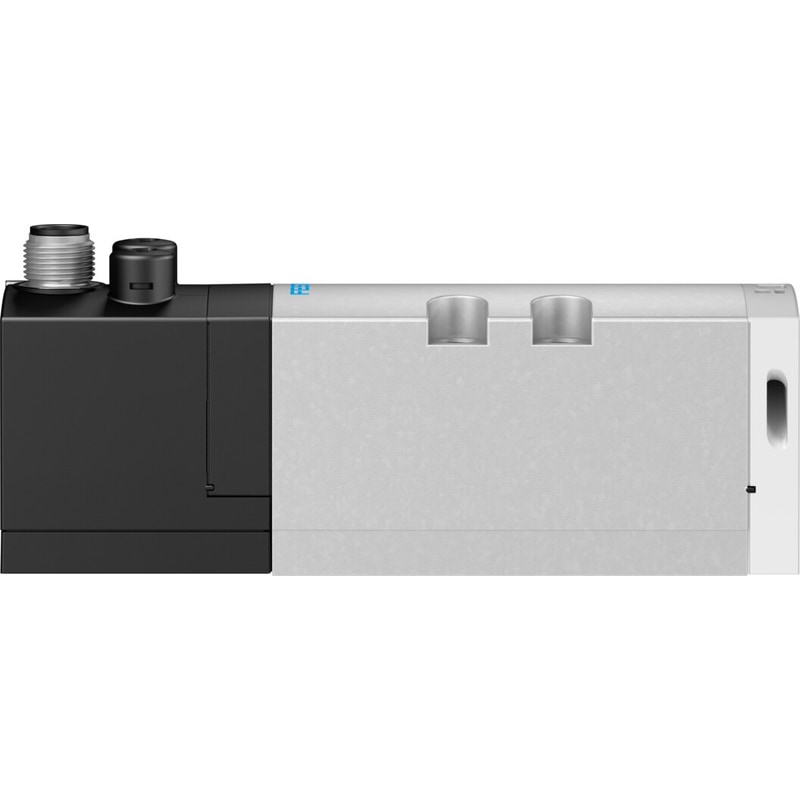

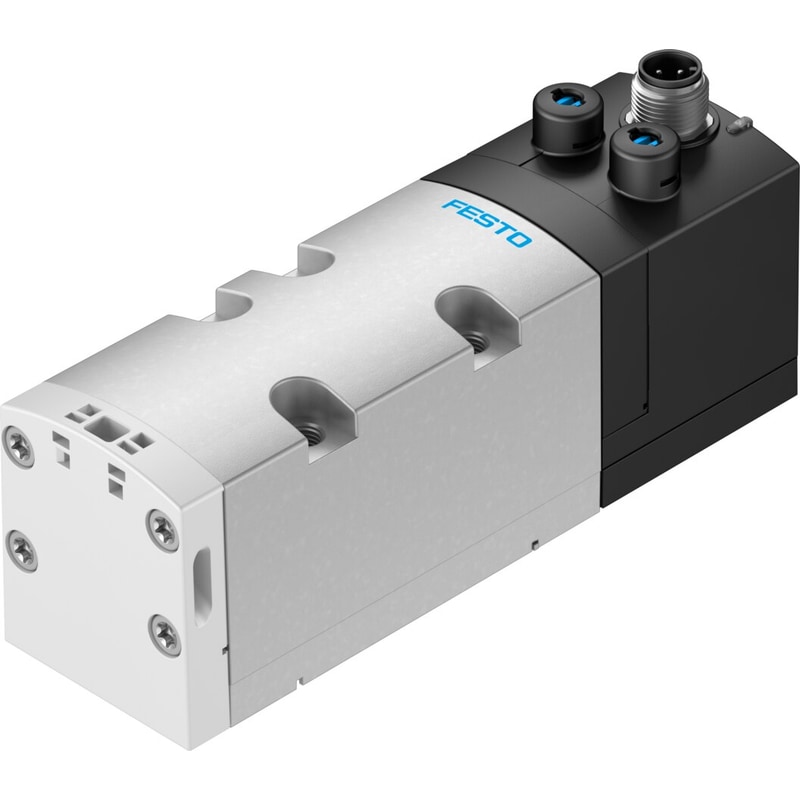

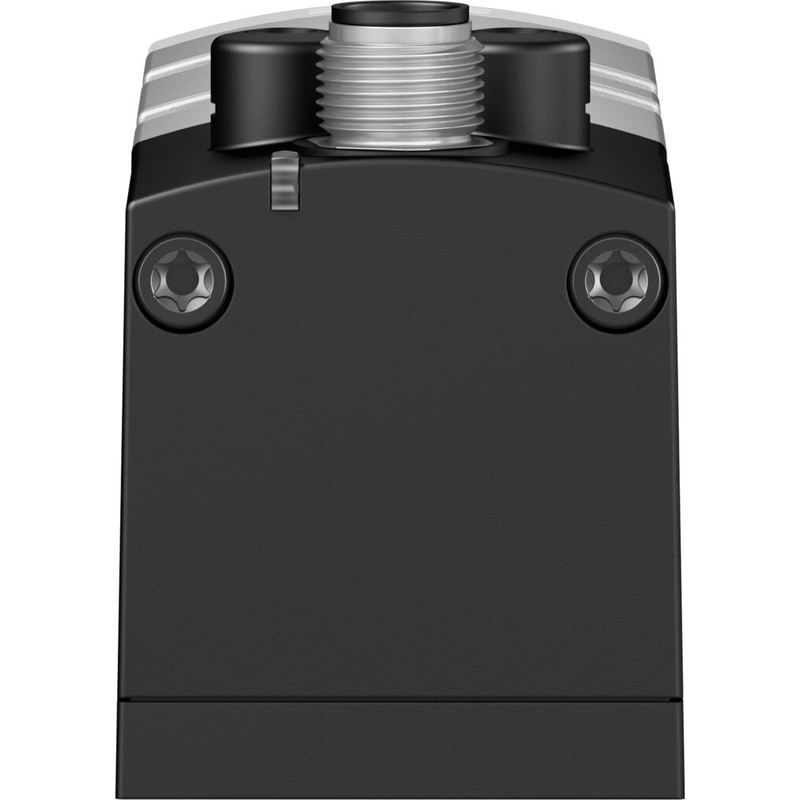

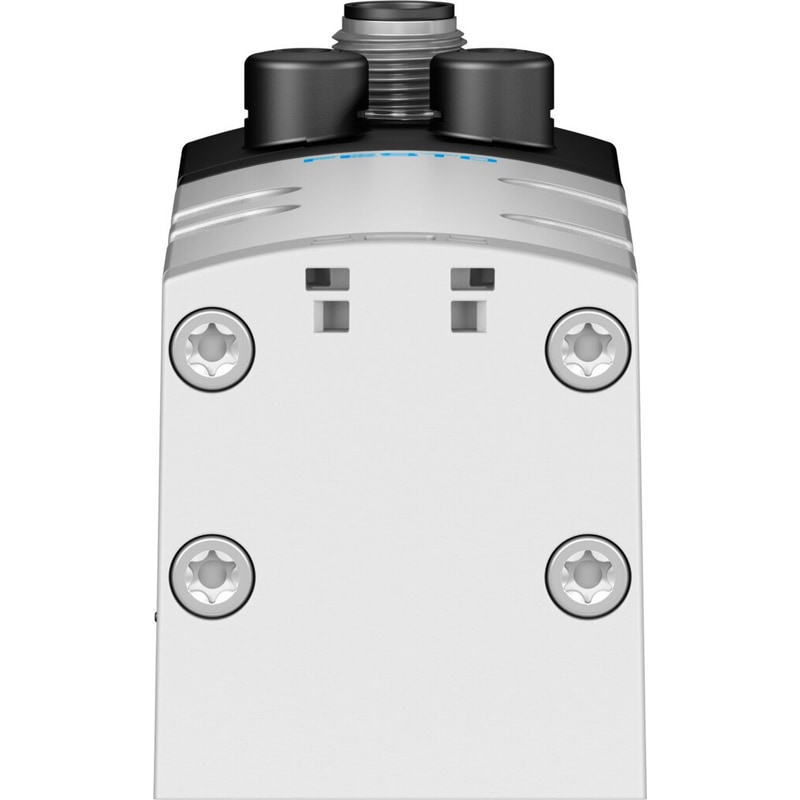

solenoid valve VSVA-B-B52-D-D1-1R5L Valve function=5/2 bistable, Type of actuation=electrical, Width=42 mm, Standard nominal flow rate=1300 l/min, Operating pressure=3 – 10 bar

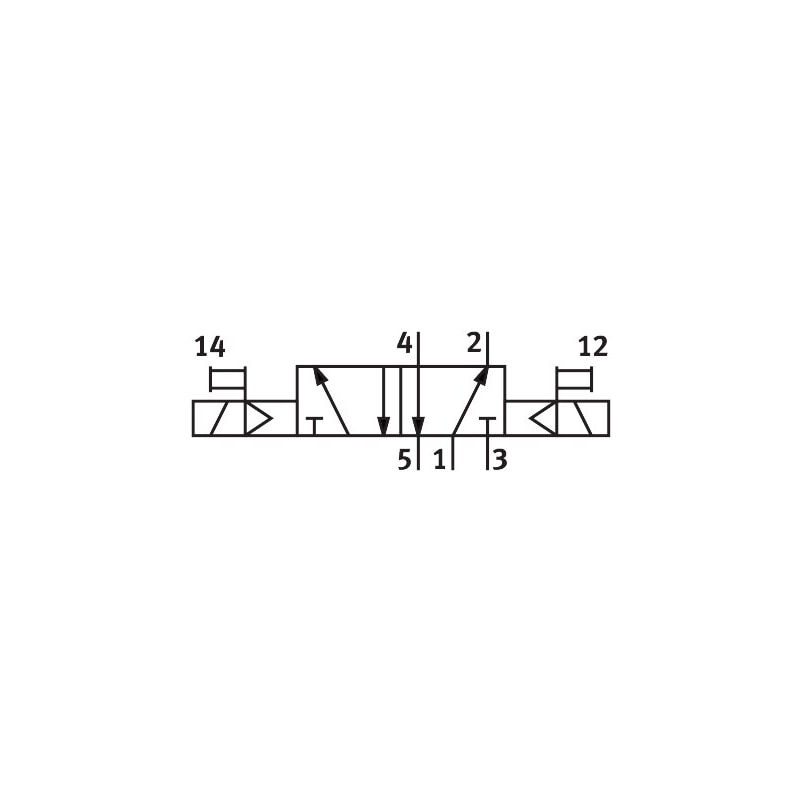

| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Width | 42 mm |
| Standard nominal flow rate | 1,300 l/min |
| Operating pressure | 3 … 10 bar |
| Design structure | Piston slide |
| Protection class | IP65NEMA 4 |
| Authorisation | c CSA us (OL)c UL us – Recognized (OL) |
| Nominal size | 11 mm |
| Grid dimension | 43 mm |
| Exhaust-air function | throttleable- via flow control plate- via individual sub-base |
| Sealing principle | soft |
| Assembly position | Any |
