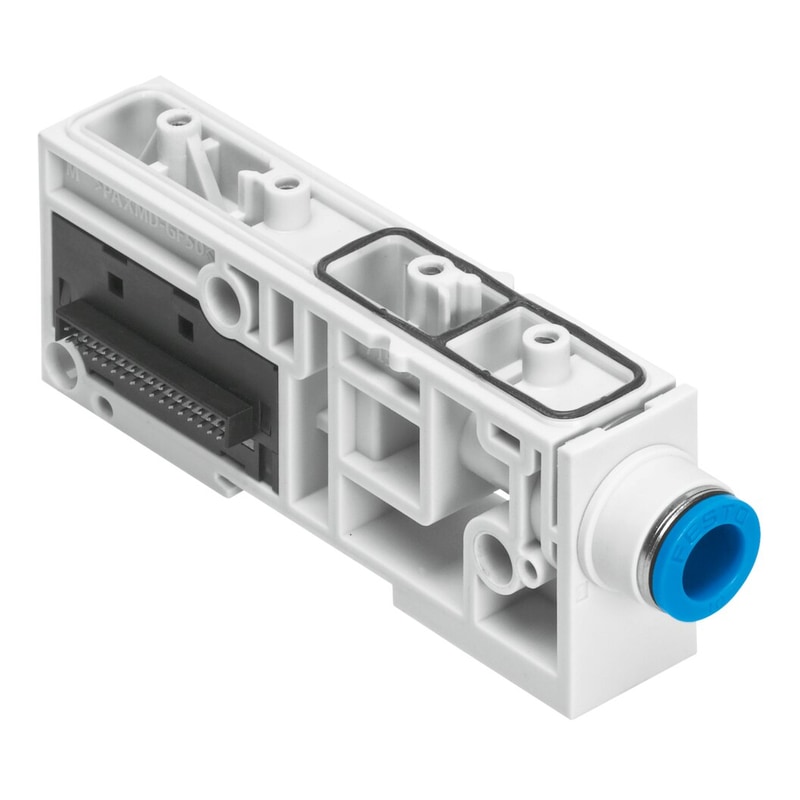

power supply module VMPAL-SP-QS10 Operating pressure=-0,9 – 10 bar, Pilot pressure=3 – 8 bar, Corrosion resistance classification CRC=3 – High corrosion stress, Ambient temperature=-5 – 50 °C, Materials note=Conforms to RoHS
| Width | 23.2 mm |
|---|---|
| Length | 107.3 mm |
| Integrated function | with electrical interlinking module |
| Valve terminal structure | Valve sizes can be mixed |
| Operating pressure | ‘-0.9 … 10 bar |
| Pilot pressure | 3 … 8 bar |
| Corrosion resistance classification CRCÂ | 3 – High corrosion stress |
| Ambient temperature | ‘-5 … 50 °C |
| Product weight | 50 g |
| Pneumatic connection, port 1Â | for tubing, 10mm outside diameter |
| Materials note | Conforms to RoHS |
| Material supply module | Wrought Aluminium alloyPA-reinforced |
