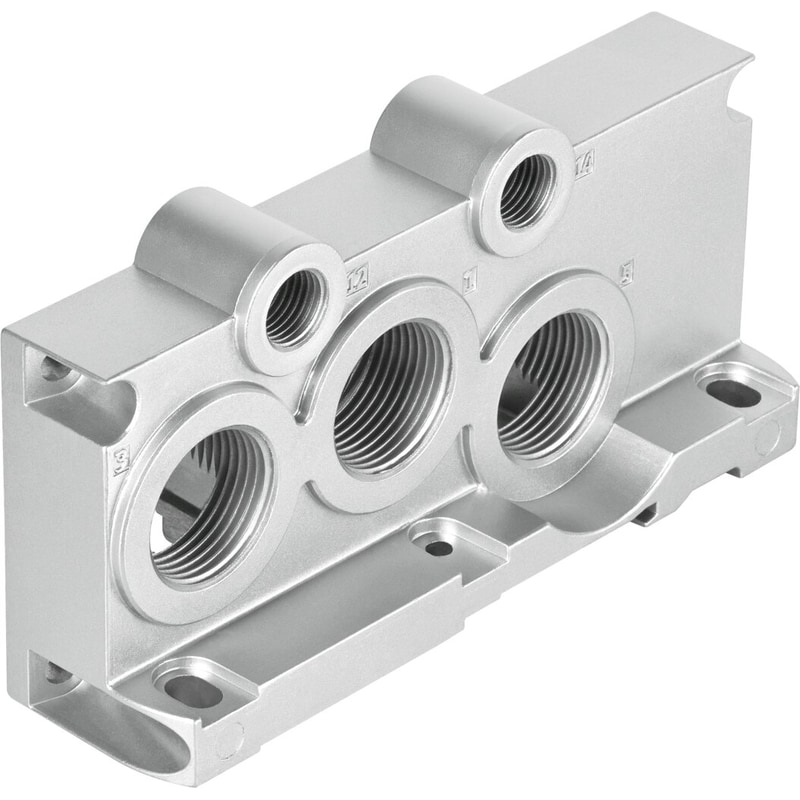

end plate VABE-S6-2RZ-G34 Based on the standard=ISO 5599-2, Assembly position=Any, Valve terminal type=44, Operating pressure=-0,9 – 10 bar, Corrosion resistance classification CRC=0 – No corrosion stress
| Based on the standard | ISO 5599-2 |
|---|---|
| Assembly position | Any |
| Valve terminal type | 44 |
| Operating pressure | ‘-0.9 … 10 bar |
| Corrosion resistance classification CRCÂ | 0 – No corrosion stress |
| Product weight | 336 g |
| Pilot air port 12Â | G1/4 |
| Pilot air port 14Â | G1/4 |
| Pneumatic connection, port 1Â | G3/4 |
| Pneumatic connection, port 3Â | G3/4 |
| Pneumatic connection, port 5Â | G3/4 |
| Materials note | Conforms to RoHS |
| Material end plate | Aluminium die cast |
