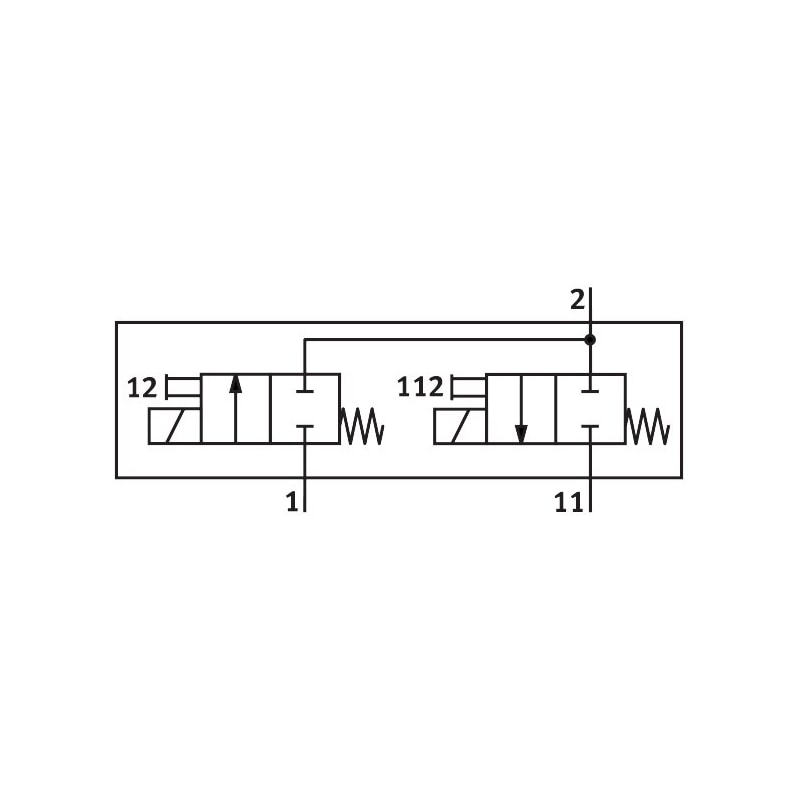

vacuum valve MHA1-2X2/2G-1,5-4-4-3 to be mounted with a screw on any flat surface. Valve function=2×2/2 closed, monostable, Type of actuation=electrical, Width=20 mm, Standard nominal flow rate=30 l/min, Operating pressure=0 – 1,5 bar
| Valve function | 2×2/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Standard nominal flow rate | 30 l/min |
| Operating pressure | 0 … 1.5 bar |
| Type of reset | mechanical spring |
| Protection class | IP40 |
| Width | 20 mm |
| Max connector cable length | 30 m |
| Nominal size | 1.5 mm |
| Grid dimension | 20 mm |
| Exhaust-air function | not throttleable |
| Sealing principle | soft |
