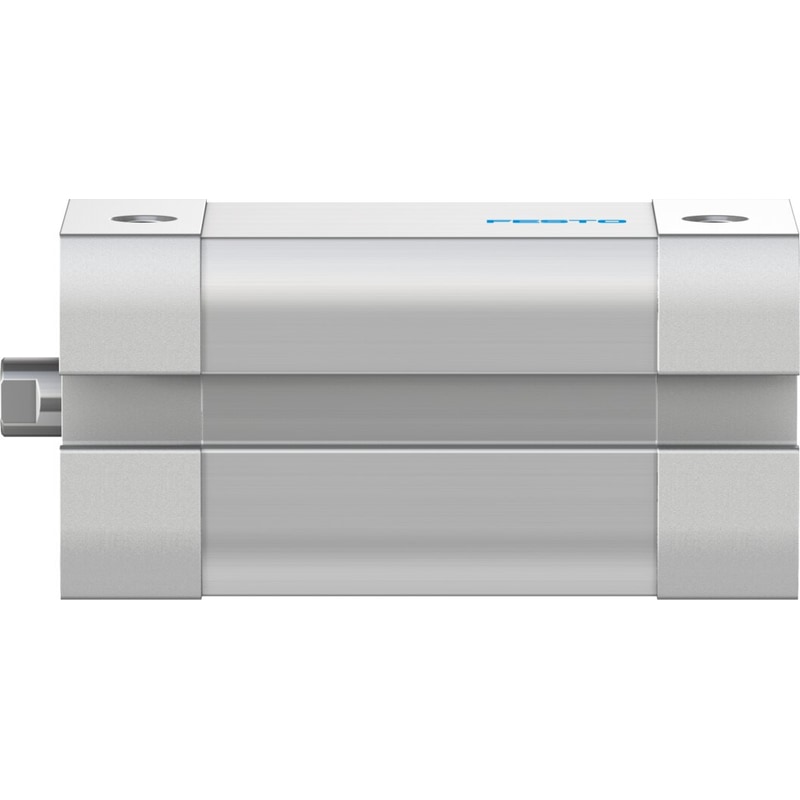

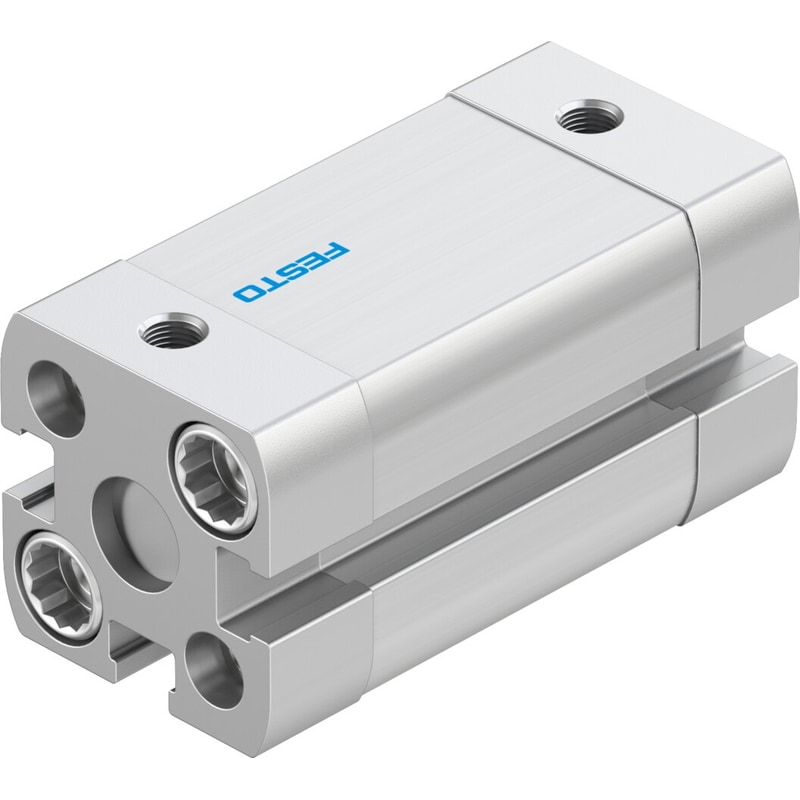

compact cylinder ADN-1/2″-3/4″-I-P-A With position sensing and internal piston rod thread Stroke=0,75 “, Piston diameter=1/2”, Piston rod thread=UNF4-48, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 0.75 “ |
|---|---|
| Piston diameter | 1/2″ |
| Piston rod thread | UNF4-48 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Conforms to standard | ISO 21287 |
| Piston-rod end | Female thread |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 1 … 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
