fork light barrier SOOF-M-FL-SM-C30-P Stable metal housing. Authorisation=(* RCM Mark, * c UL us – Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Contains PWIS substances, * Conforms to RoHS), Measured variable=Position, Measuring principle=Optoelectronic
| Authorisation | RCM Markc UL us – Listed (OL) |
|---|---|
| CE mark (see declaration of conformity)Â | to EU directive for EMC |
| Materials note | Free of copper and PTFEContains PWIS substancesConforms to RoHS |
| Measured variable | Position |
| Measuring principle | Optoelectronic |
| Measurement method | Fork light barrier |
| Type of light | Red |
| Minimal object diameter | 0.5 mm |
| Ambient temperature | ‘-10 … 60 °C |
| Repetition accuracy | 0.02 mm |

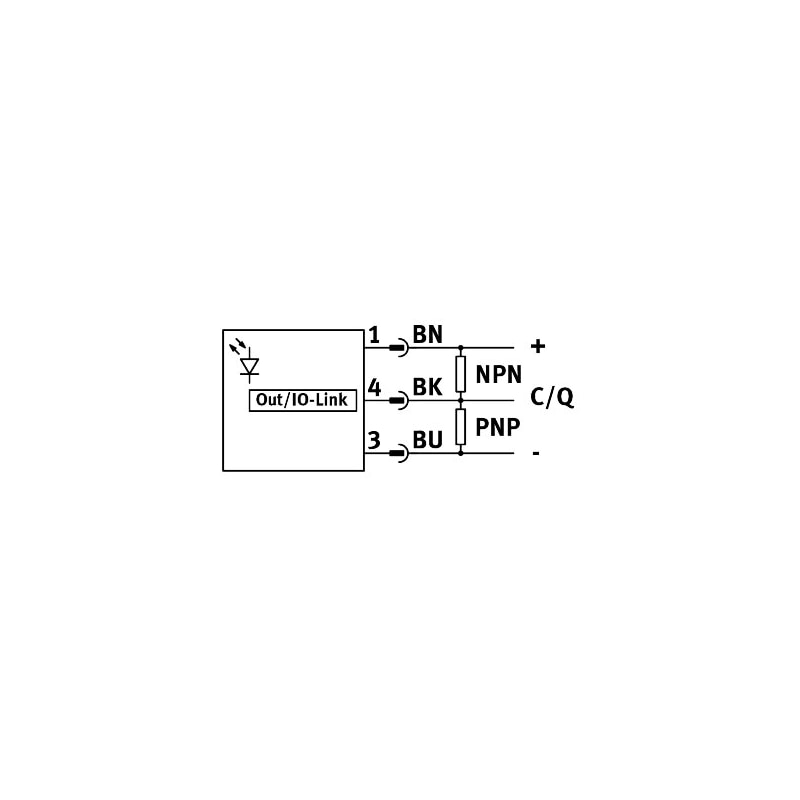

| Switch output | PNP |
| Switching element function | Switchable |
| Hysteresis | <= 0.25 mm |
