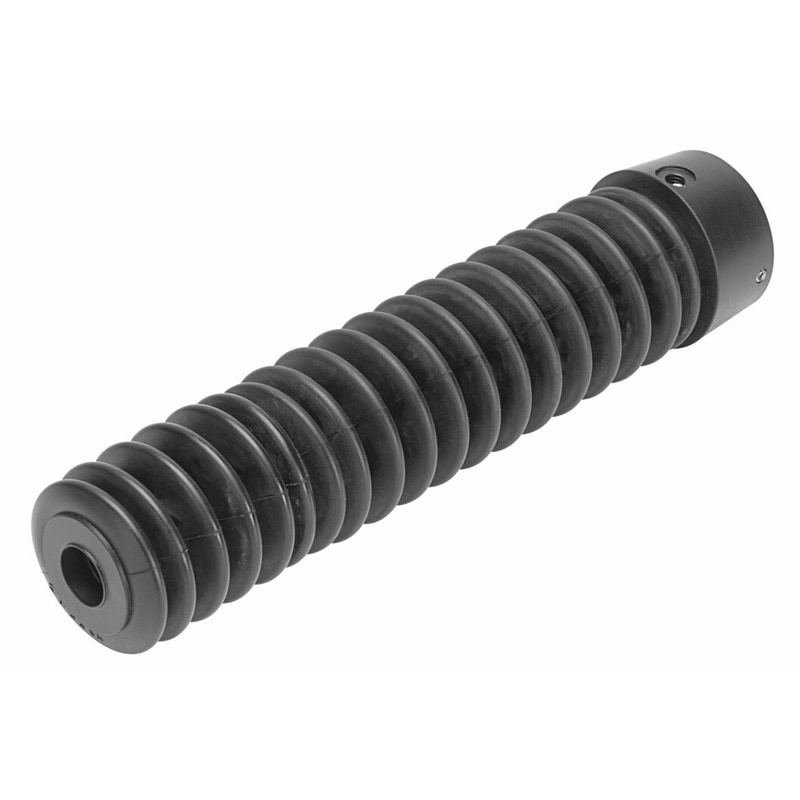

bellows kit DADB-S1-12-S101-150 For standard cylinders to ISO 6432 Outside diameter=22 mm, Size=12, Stroke range=101 – 150 mm, Piston rod extension=48 mm, Design=Round
| Outside diameter | 22 mm |
|---|---|
| Size | 12 |
| Stroke range | 101 … 150 mm |
| Piston rod extension | 48 mm |
| Design | Round |
| Assembly position | Any |
| Design structure | Bellows kitwith ducted exhaust air |
| Corrosion resistance classification CRCÂ | 3 – High corrosion stress |
| Resistance to media | DustChippingsOilsGreaseGasolines |
| Ambient temperature | ‘-10 … 80 °C |
| Product weight | 13 g |
| Mounting type | With threaded pinwith internal (female) thread |
| Pneumatic connection | M5 |
