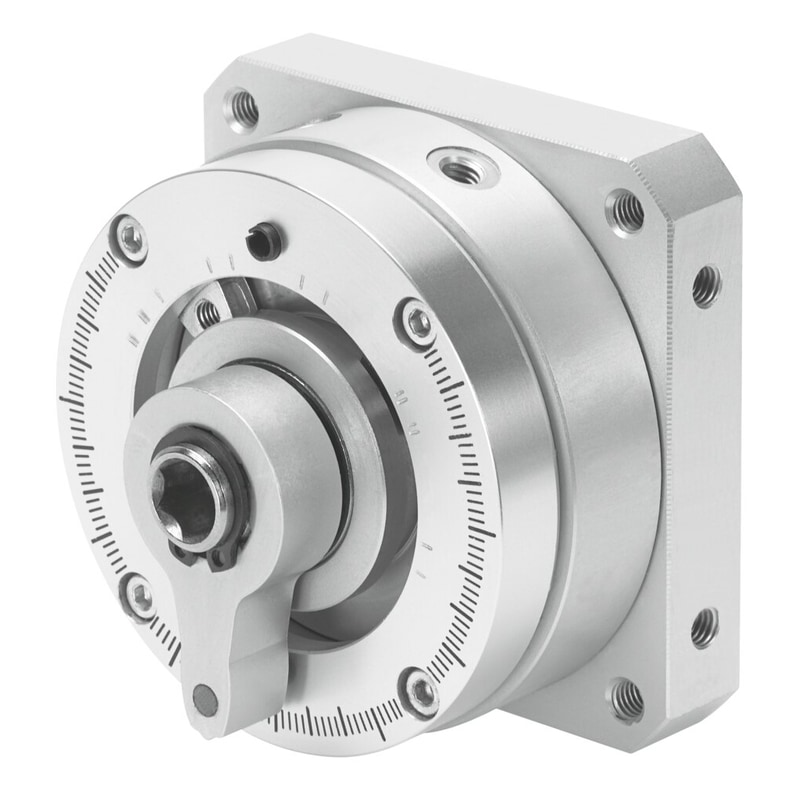

semi-rotary drive DSM-63-270-A-B with spigot shaft and position sensing Size=63, Swivel angle=0 – 270 deg, Assembly position=Any, Mode of operation=double-acting, Design structure=Rotary vane
| Size | 63 |
|---|---|
| Swivel angle | 0 … 270 deg |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | For proximity sensor |
| Operating pressure | 1.5 … 10 bar |
| Max. swivel frequency at 6 bar | 1.6 Hz |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRCÂ | 0 – No corrosion stress |
| Ambient temperature | ‘-10 … 60 °C |
| Max. axial force | 500 N |
| Max. radial force | 500 N |
