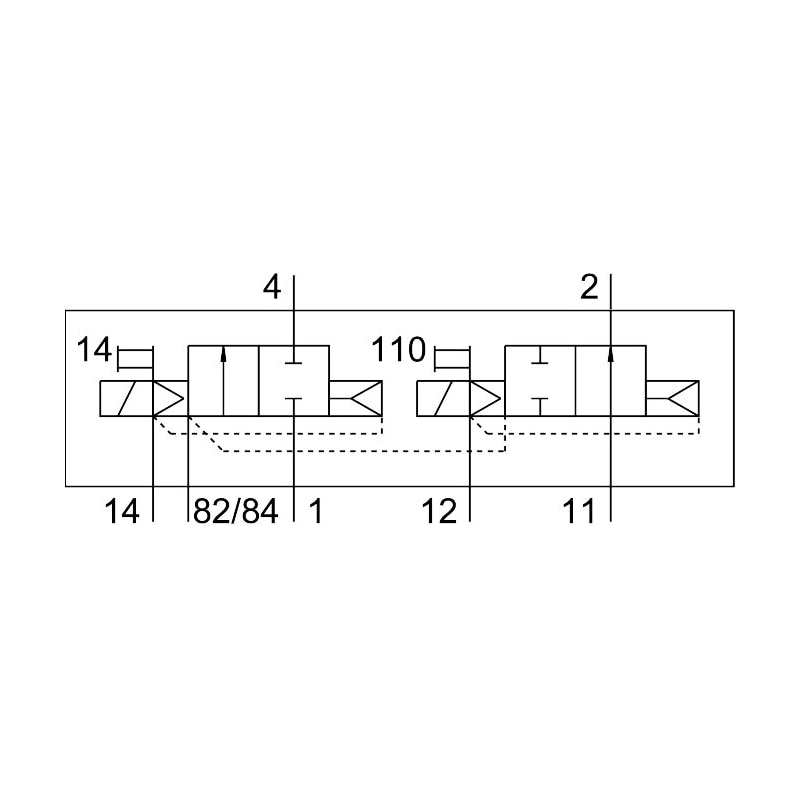

solenoid valve CPV10-M1H-2OLS-2GLS-M7-B-EX For valve terminal CPV. The valve housing contains two 2/2-way valves, one of which is normally open, the other is normally closed, ATEX design. Valve function=2×2/2 open/closed, monostable, Type of actuation=electrical, Valve size=10 mm, Standard nominal flow rate=400 l/min, Operating pressure=0 – 10 bar
| Valve function | 2×2/2 open/closed, monostable |
|---|---|
| Type of actuation | electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 400 l/min |
| Operating pressure | 0 … 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP50 |
| Nominal size | 4 mm |
| Exhaust-air function | not throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushing |
