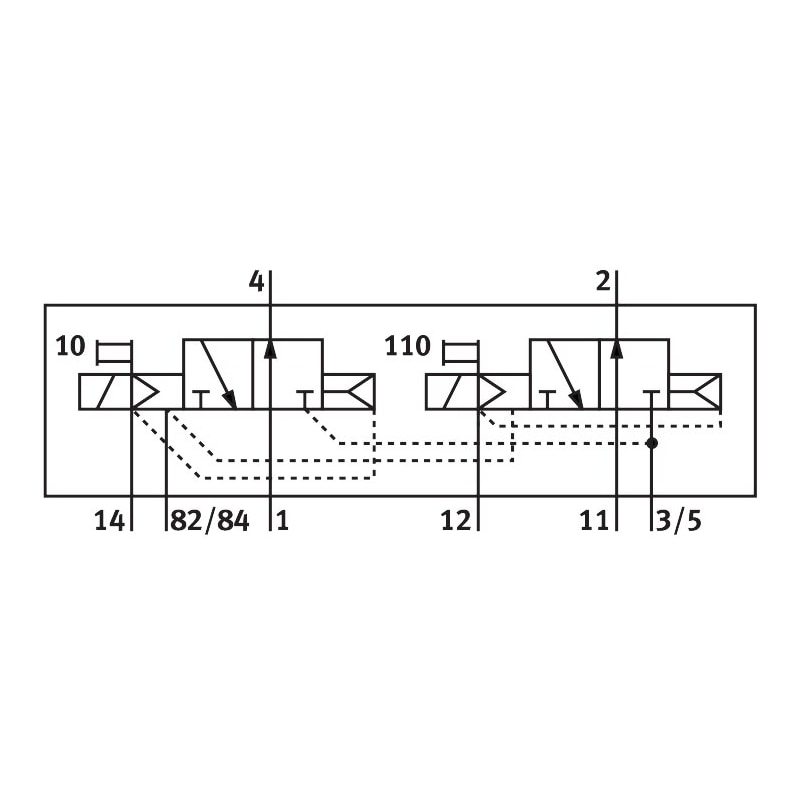

solenoid valve CPV10-M1H-2X3-OLS-M7-B-EX For valve terminal CPV. The valve housing contains two 3/2-way valves, both of which are normally open, ATEX design. Valve function=2×3/2 open, monostable, Type of actuation=electrical, Valve size=10 mm, Standard nominal flow rate=400 l/min, Operating pressure=0 – 10 bar
Valve function | 2×3/2 open, monostable |
---|---|
Type of actuation | electrical |
Valve size | 10 mm |
Standard nominal flow rate | 400 l/min |
Operating pressure | 0 … 10 bar |
Design structure | Piston slide |
Type of reset | Air spring |
Protection class | IP50 |
Nominal size | 4 mm |
Exhaust-air function | not throttleable |
Sealing principle | soft |
Assembly position | Any |
Manual override | detentingPushing |
