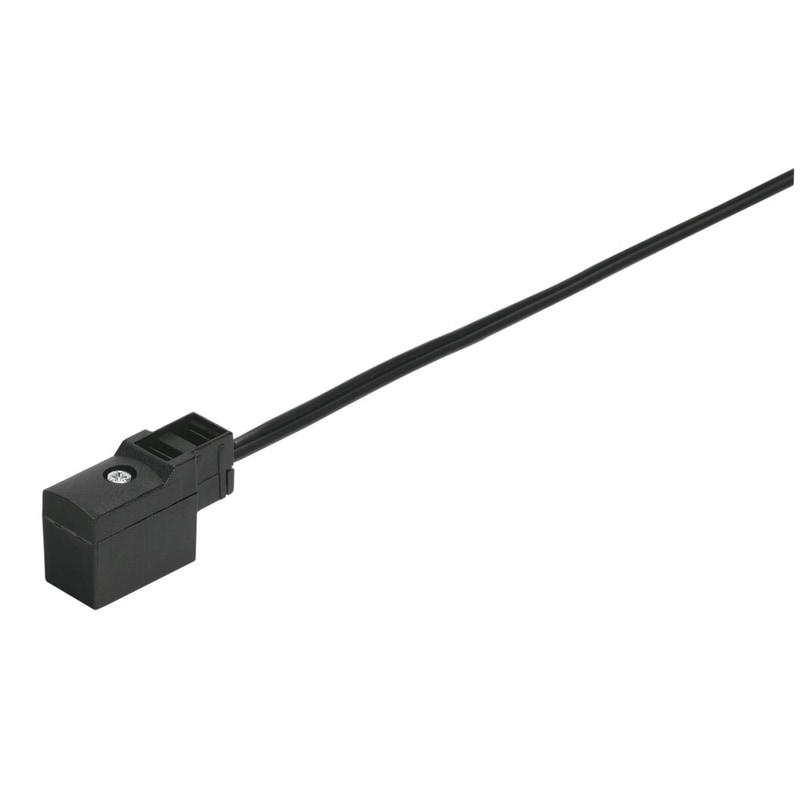

| Type code | KMYZ |
|---|---|
| Maritime classification | See certificate |
| Type of mounting | On air solenoid valve with M2 central screw |
| Product weight | 34.5 g |
| Electrical connection | Socket, angledCableRactangular design MSZB |
| DC operating voltage range | 3 V … 36 V |
| Nominal operating voltage DC | 24 V |
| Protective earth connection | Not available |
| Cable length | 2.5 m |
| Cable characteristic | Standard |
| Cable design | 2 x 0.35 mm² |
| Degree of protection | IP50 |
| Ambient temperature | -10 °C … 50 °C |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Material of cable sheath | PVC |
| Housing material | PA |
| Material of pin contacts | Bronze |
| Mounting position | Any |
| Weight | 0.078705 lbs |
|---|---|
| Dimensions | 5.11811 × 0.787402 × 3.149606 in |
| Electrical connection | Angled socket – Cable – Square design MSZB |
| Cable length | 2.5 m |
