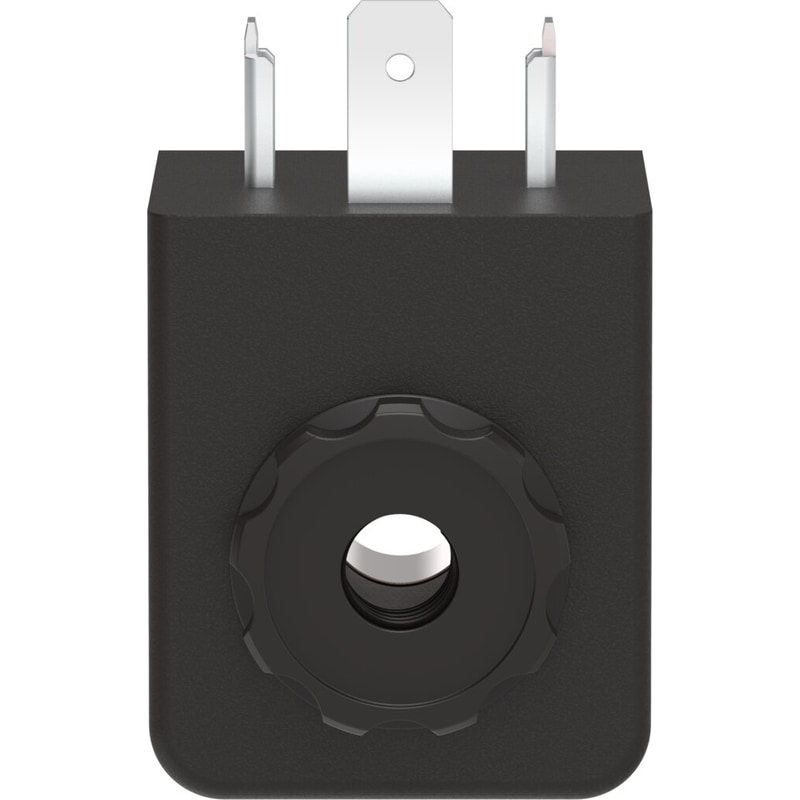

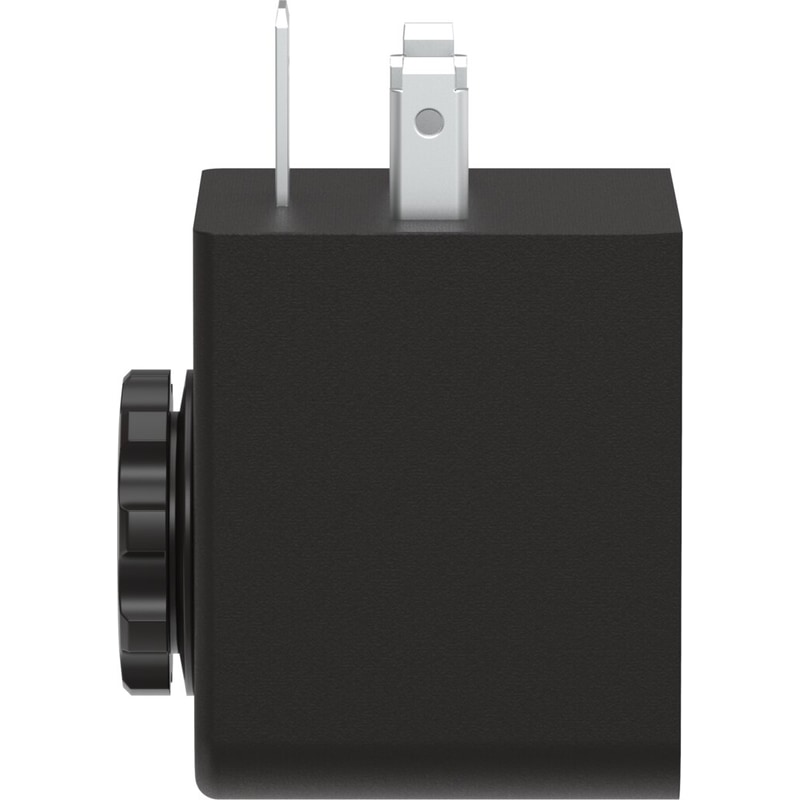

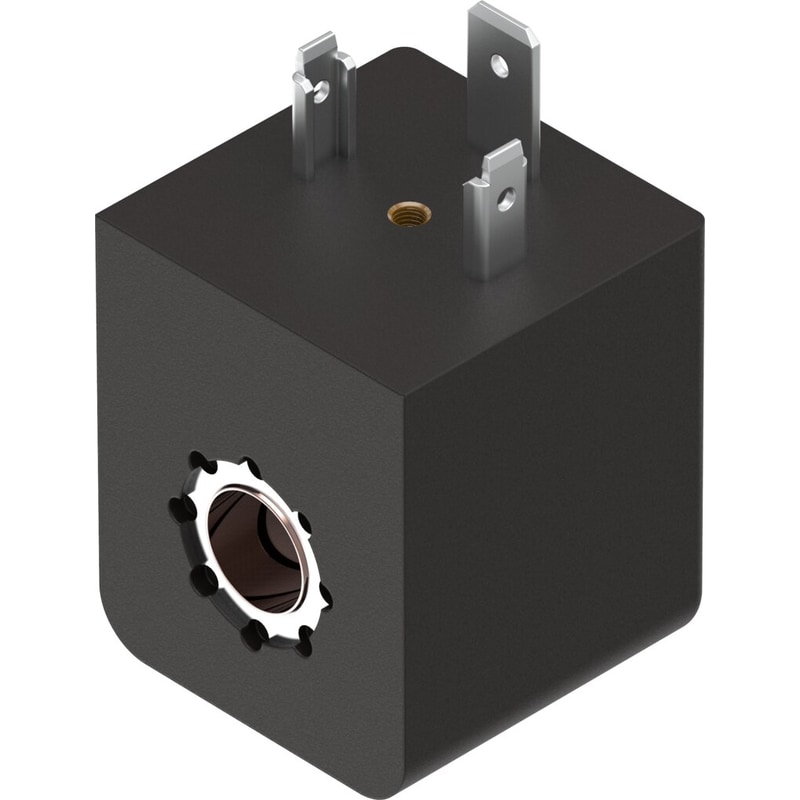

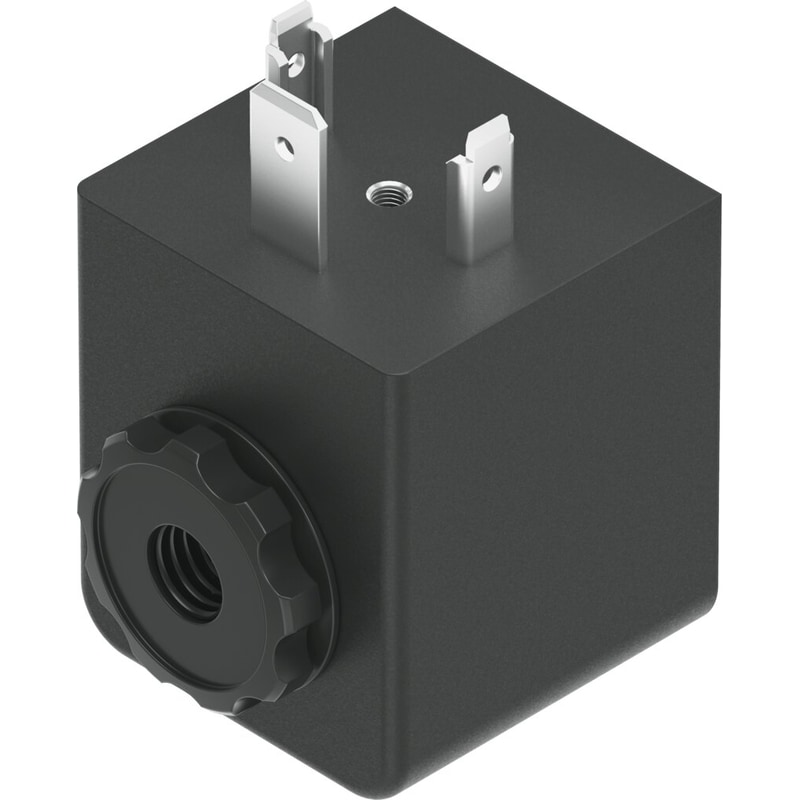

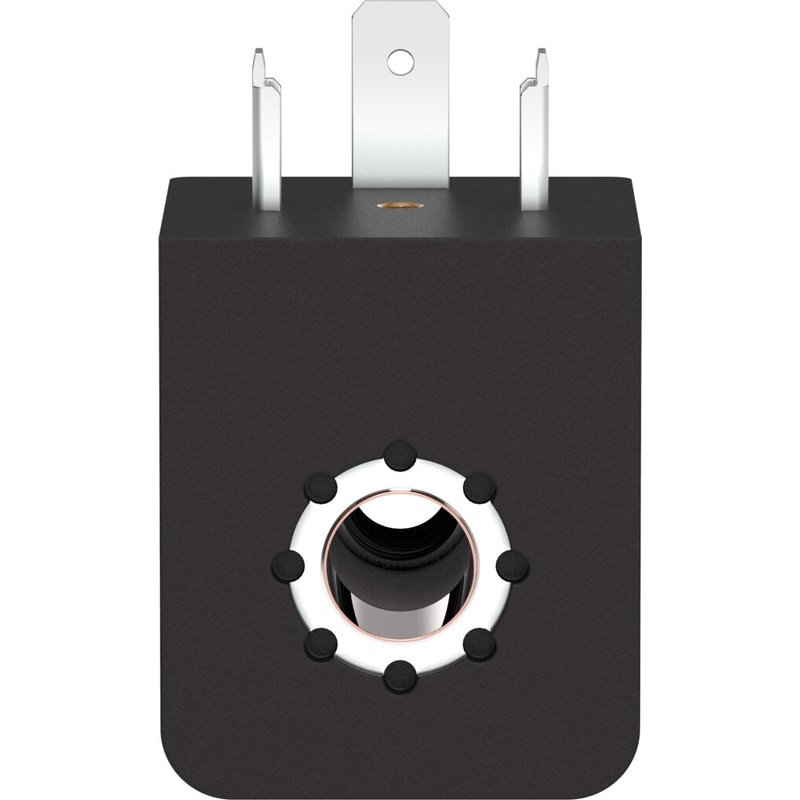

solenoid coil MD-2-110VAC-PA For AC voltage, without plug socket. Assembly position=Any, Duty cycle=100%, Power factor cos {phi}=0,7, Characteristic coil data=110 V AC: 50/60 Hz, pick-up power 14.5 VA, holding power 10.5 VA, Permissible frequency fluctuation=+/- 10 %
| Assembly position | Any |
|---|---|
| Duty cycle | 1 |
| Power factor cos {phi}Â | 0.7 |
| Characteristic coil data | 110 V AC: 50/60 Hz, pick-up power 14.5 VA, holding power 10.5 VA |
| Permissible frequency fluctuation | ‘+/- 10 % |
| Permissible voltage fluctuation | ‘+/- 10 % |
| CE mark (see declaration of conformity)Â | to EU directive low-voltage devices |
| Protection class | IP65 |
| Ambient temperature | ‘-20 … 50 °C |
| Max. tightening torque for fitting | 0.5 Nm |
| Product weight | 110 g |
| Electrical connection | Per DIN EN 175301-803 |
| Mounting type | With knurled nut |
