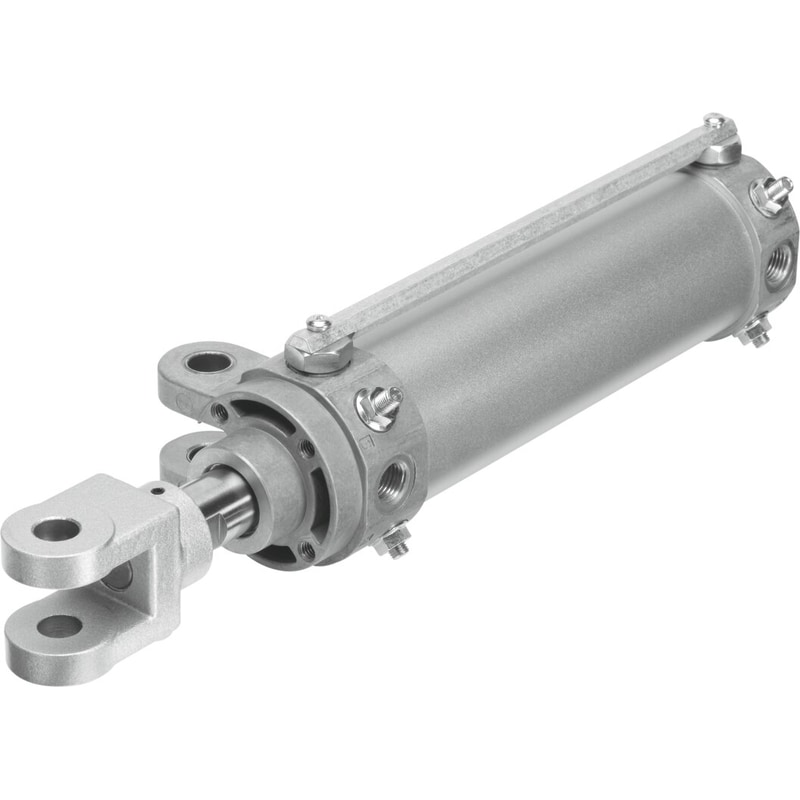

| Stroke | 50mm |
|---|---|
| Piston diameter | 50 mm |
| Piston rod thread | M16x1.5 |
| Wide rod clevis/swivel mounting | 19.5mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Structural design | Piston |
| Velocity control | Integrated flow control at both ends |
| Position sensing | For proximity sensor |
| Piston rod end | External thread with rod clevis |
| Operating pressure | 1bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C |
| Impact energy in the end positions | 0.7J |
| Cushioning length | 20mm |
| Theoretical force at 6 bar, retracting | 990N |
| Theoretical force at 6 bar, advancing | 1178N |
| Moving mass at 0Â mm stroke | 664g |
| Additional moving mass per 10Â mm stroke | 25g |
| Basic weight with 0Â mm stroke | 1338g |
| Additional weight per 10Â mm stroke | 37g |
| Alternative connections | See product drawing |
| Type of mounting | With swivel mounting on bearing cap |
| Pneumatic connection | Rc1/4 |
| Rod clevis material | Cast steel |
| Note on materials | RoHS-compliant |
| Wiper material | Bronze |
| Cover material | Die-cast aluminum |
| Seals material | NBR |
| Piston rod material | Tempered steel |
| Material of cylinder barrel | Wrought aluminum alloy |
| Weight | 3.228163 lbs |
|---|---|
| Dimensions | 12.598425 × 3.937008 × 3.740157 in |
| Piston diameter | 50 mm |
| Stroke | 50 mm |
| Pneumatic connection | Rc1/4 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 1178 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 990 N |
