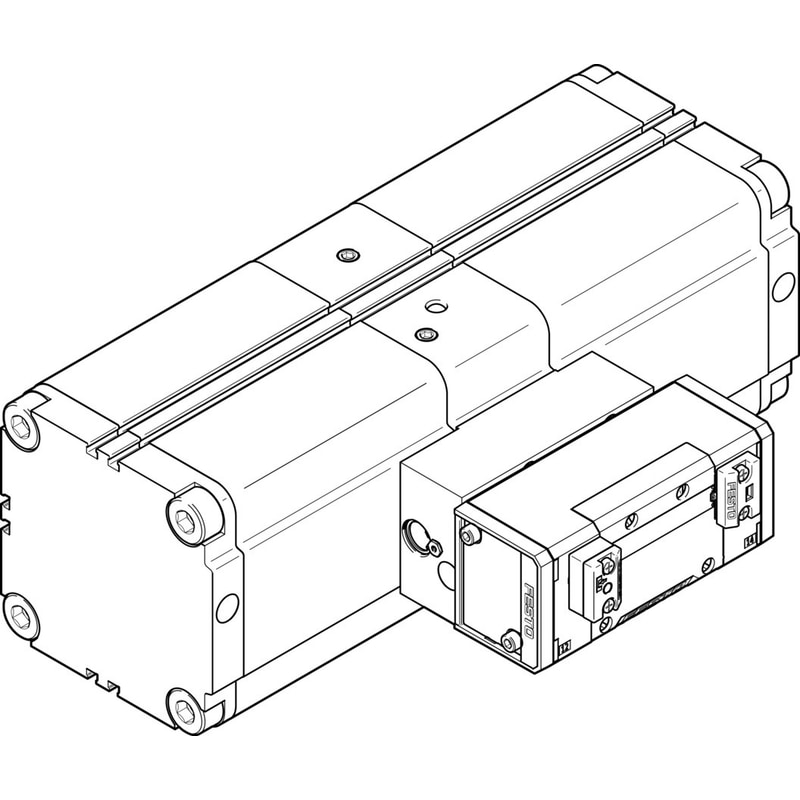

pressure booster DPA-100-D for generating higher pressures. Piston diameter=100 mm, Assembly position=Any, Design structure=Twin-piston pressure booster, Pressure gauge=Prepared for G1/8, Output pressure 2=4 – 16 bar
| Piston diameter | 100 mm |
|---|---|
| Assembly position | Any |
| Design structure | Twin-piston pressure booster |
| Pressure gauge | Prepared for G1/8 |
| Output pressure 2Â | 4 … 16 bar |
| Operating pressure | 2.5 … 8 bar |
| Pressure regulation range | 5 … 16 bar |
| Inlet pressure 1Â | 2 … 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:3:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Storage temperature | 5 … 60 °C |
| Ambient temperature | 5 … 60 °C |
