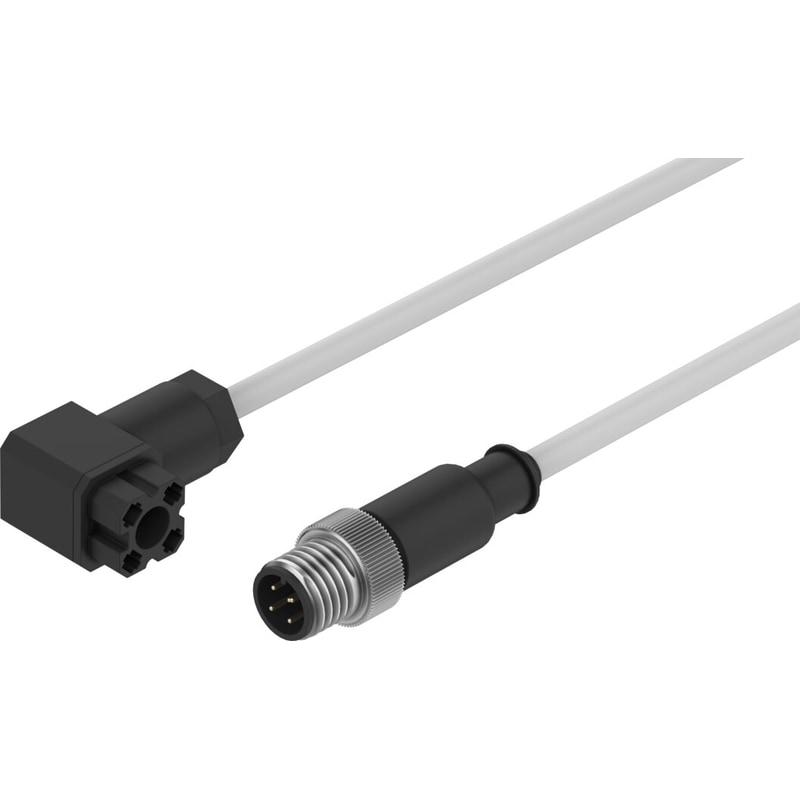

connecting cable NEBC-P1W4-K-0.3-N-M12G5 From the drive or displacement encoder MLO-POT-…-LWG to the sensor interface CASM Based on the standard=EN 61076-2-101, Electrical connection=(* Plug straight, * M12x1, * 5-pin, * Square design/angled), Protective earth connection=Available, Cable length=0,3 m, Min. cable bending radius=90 mm
| Based on the standard | EN 61076-2-101 |
|---|---|
| Electrical connection | Plug straightM12x15-pinSquare design/angled |
| Protective earth connection | Available |
| Cable length | 0.3 m |
| Min. cable bending radius | 90 mm |
| Cable diameter | 5.9 mm |
| Permissible cable diameter | 5.7 … 6.1 mm |
| Cable structure | 4×0,34 |
| Nominal conductor cross-section | 0.34 mm2 |
| Protection class | IP65 |
| Ambient temperature | ‘-25 … 85 °C |
| Ambient temperature with flexible cable installation | ‘-25 … 85 °C |
| Corrosion resistance classification CRCÂ | 0 – No corrosion stress |
