Soft start/quick exhaust valve MS6-SV-1/2-E-10V24-AG

Soft start/quick exhaust valve MS6-SV-1/2-E-10V24-AG - Image 2

Soft start/quick exhaust valve MS6-SV-1/2-E-10V24-AG

Name: Soft start/quick exhaust valve MS6-SV-1/2-E-10V24-AG
Brand: Festo
SKU: 548715
Availability: InStock

$1,010.81

SKU: 548715
UNSPSC: 40141603
GTIN: 4052568190118

SKU: 548715 Category: MS6-SV Tag: Festo-Fast

MS-SV_ENUS.PDF

Brand: Festo

soft-start/quick exhaust valve MS6-SV-1/2-E-10V24-AG With pressure gauge. Series=MS, Size=6, Grid dimension=62 mm, Safety function=(* Exhausting, * Protection against unexpected start-up), Safety Integrity Level (SIL)=Exhausting / SIL 3

Series	MS
Size	6
Grid dimension	62 mm
Safety function	ExhaustingPrevention of unexpected start-up (pressurisation)
Safety Integrity Level (SIL)	Exhausting / SIL 3Prevention of unexpected start-up (pressurisation)/SIL 3
Performance level (PL)	Vent/up to Category 4, PL ePrevention of unexpected start-up (pressurisation)/up to category 4, Performance Level e
Note on forced dynamisation	Switching frequency min. 1/month
Design structure	Piston seat
Freedom from overlap	No
Type of actuation	electrical
Pilot air supply	Internal
Sealing principle	soft
Exhaust-air function	not throttleable

Weight	6.208879 lbs
Dimensions	11.417323 × 6.299213 × 8.070866 in
Series	MS
Size	6
Width dimension	62 mm
Safety function	Exhausting, Prevention of unexpected start-up (pressurization)
Safety integrity level (SIL)	Exhaust/SIL 3, Avoidance of unexpected start-up (pressurization)/SIL 3
Performance Level (PL)	Exhaust/up to category 4, performance level e, Avoidance of unexpected start-up (pressurization)/up to category 4, performance level e
Note on forced dynamization	Switching frequency at least once a month
Structural design	Piston seat
Lap	Underlap
Actuation type	Electrical
Pilot air supply port	Internal
Sealing principle	Soft
Exhaust air function	Without flow control option
Position sensing principle	Piston magnet principle
Conforms to standard	DIN EN ISO 13849-1
Manual override	None
Reset method	Mechanical spring
Type of control	Pilot-controlled

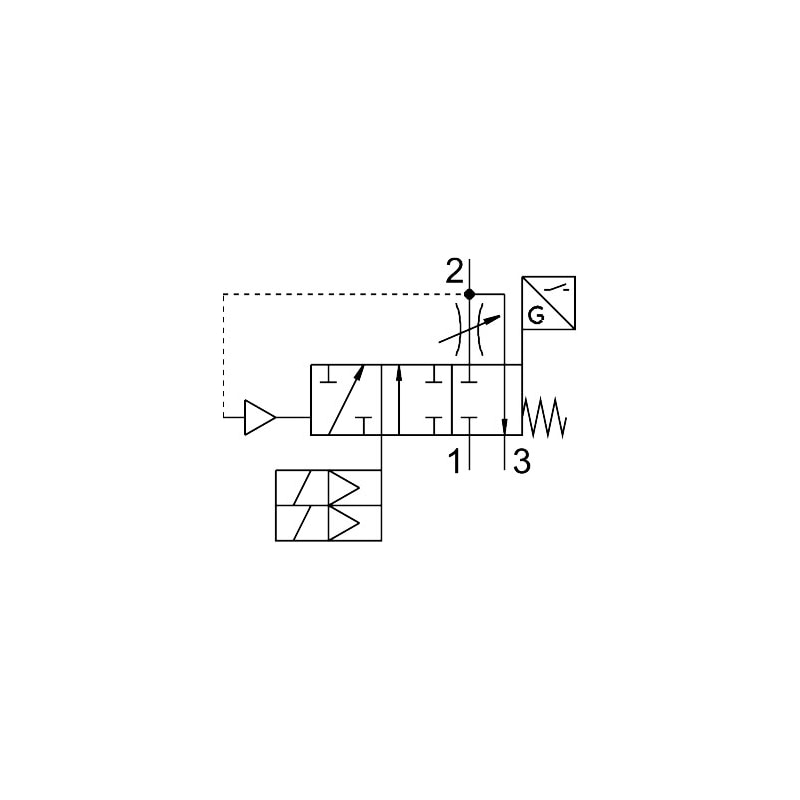

Symbol	00995704
Valve Function	3/2, closed, monostable \| Pressure build-up function
Operating pressure	3.5 bar … 10 bar
Pressure gauge	with pressure gauge
C value	19.3 l/sbar
b-value	0.21
Normal nominal flow rate (normalized to DIN 1343)	4300 l/min
Standard flow rate exhaust 6-> 0 bar	9000 l/min
Max. switching frequency	0.5 Hz
Switching time off	40 ms
On switching time	130 ms
Duty cycle	100%
Signal status display	LED, Floating contact
Nominal operating voltage DC	24 V
Permissible voltage fluctuations	+/- 10 %
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
Note on materials	RoHS-compliant
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Degree of protection	IP65, With plug socket
Temperature of medium	-10 °C … 50 °C
Ambient temperature	-10 °C … 50 °C
Storage temperature	-10 °C … 50 °C
Shock resistance	Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Vibration resistance	Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Certification	RCM compliance mark
KC characters	KC EMC
CE marking (see declaration of conformity)	As per EU EMC directive, as per EU machinery directive, As per EU RoHS directive
UKCA marking (see declaration of conformity)	To UK instructions for EMC, To UK instructions for machines, To UK RoHS instructions
Certificate issuing authority	IFA 1001180, Intertek UK-MCR-0086
For use in the food industry	See supplementary material information
Type of mounting	Optionally: \| Line installation \| With accessories
Mounting position	Any
Product weight	2000 g
Pneumatic connection 1	G1/2
Pneumatic connection 2	G1/2
Pneumatic connection 3	G1
Electrical connection	9-pin \| Sub-D
Housing material	Die-cast aluminum
Seals material	NBR
Piston rod material	High-alloy stainless steel
