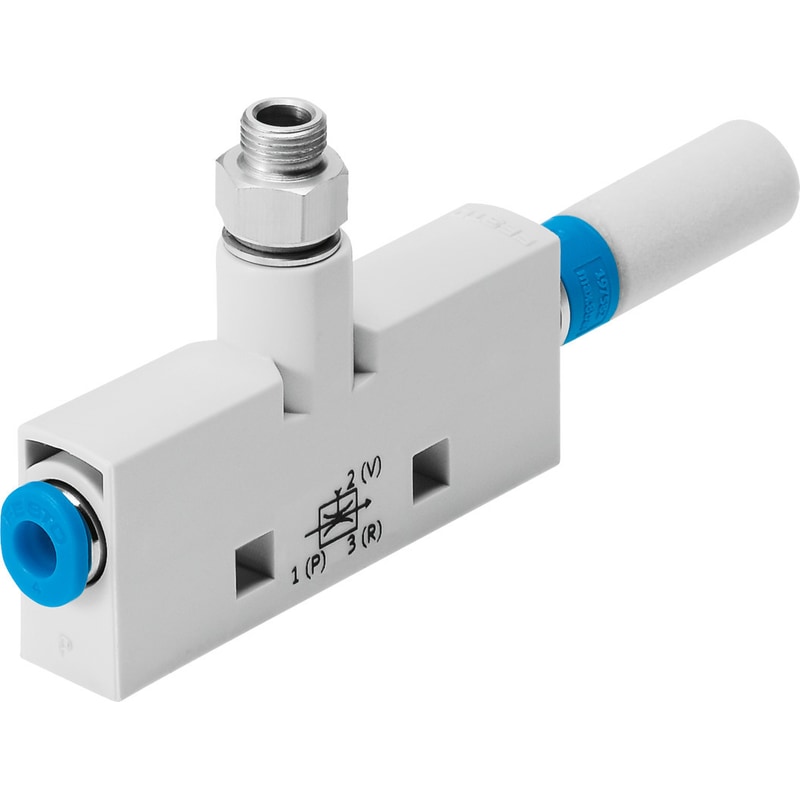

vacuum generator VN-14-L-T4-PQ2-VA5-RO2 Standard, high suction rate, width 18 mm, T shape with plug connector and open silencer Vacuum connection with male thread. Nominal size, Laval nozzle=1,4 mm, Grid dimension=18 mm, Design, silencer=open, Assembly position=Any, Ejector characteristic=(* High suction flow rate, * Standard)
| Nominal size, Laval nozzle | 1.4 mm |
|---|---|
| Grid dimension | 18 mm |
| Design, silencer | open |
| Assembly position | Any |
| Ejector characteristic | High suction flow rateStandard |
| Integrated function | Open silencer |
| Design structure | T-shaped |
| Operating pressure for max. suction rate | 8 bar |
| Operating pressure | 1 … 8 bar |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 90 l/min |
| Air supply time at nominal operating pressure | 0.25 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
