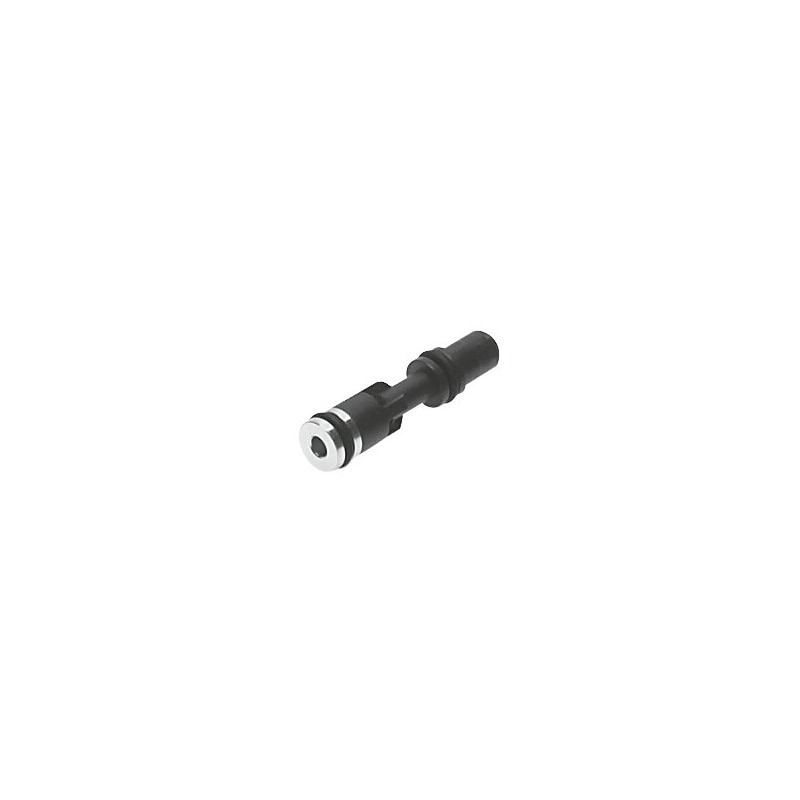

vacuum generator cartridge VN-05-L For VN vacuum generators, high suction rate. Nominal size, Laval nozzle=0,45 mm, Assembly position=Any, Ejector characteristic=(* Standard, * High suction volume), Operating pressure=1 – 8 bar, Nominal operating pressure=6 bar
| Nominal size, Laval nozzle | 0.45 mm |
|---|---|
| Assembly position | Any |
| Ejector characteristic | StandardHigh suction volume |
| Operating pressure | 1 … 8 bar |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 13.6 l/min |
| Air supply time at nominal operating pressure | 2.04 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Medium temperature | 0 … 60 °C |
| Ambient temperature | 0 … 60 °C |
| Product weight | 0.65 g |
