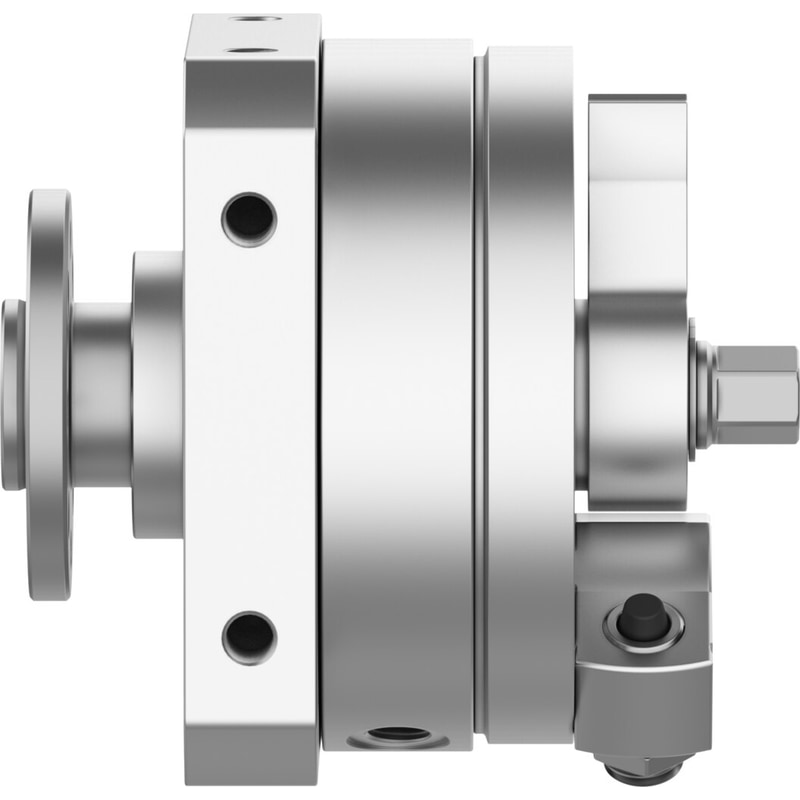

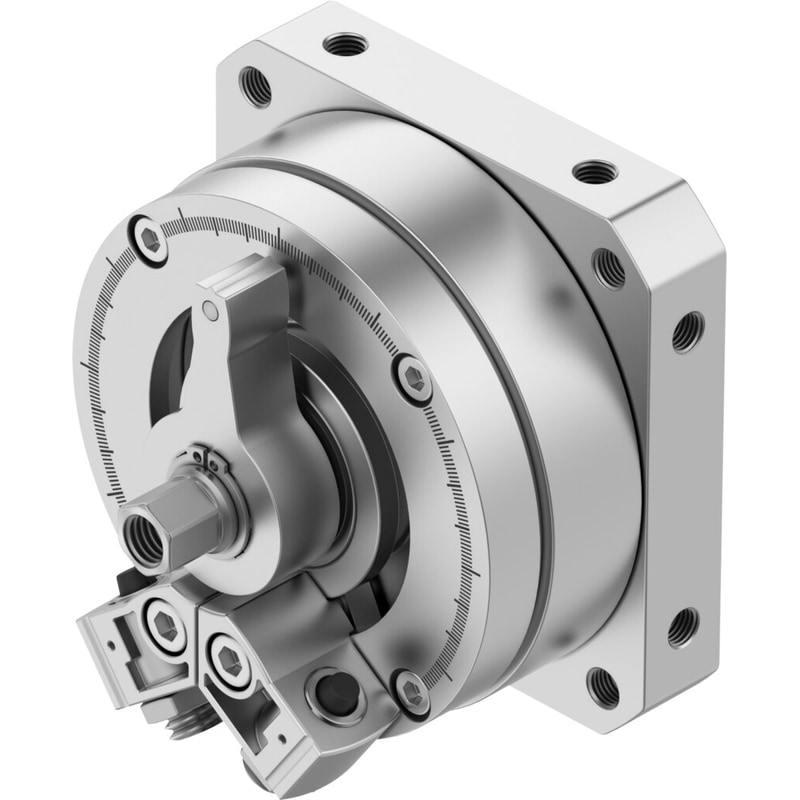

semi-rotary drive DSM-32-270-P-FW-A-B with flanged shaft, fixed stop and position sensing Size=32, Cushioning angle=1,4 deg, Rotation angle adjustment range=0 – 270 deg, Swivel angle=0 – 270 deg, Cushioning=P: Flexible cushioning rings/plates at both ends
| Size | 32 |
|---|---|
| Cushioning angle | 1.4 deg |
| Rotation angle adjustment range | 0 … 270 deg |
| Swivel angle | 0 … 270 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Fine adjustment | ‘-6 deg |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | For proximity sensor |
| Operating pressure | 1.5 … 10 bar |
| Max. swivel frequency at 6 bar | 2 Hz |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
