VBQF-D-G18-E

$36.89

SKU: 547533
UNSPSC: 40141603
GTIN: 4052568092856

SKU: 547533 Category:
Festo

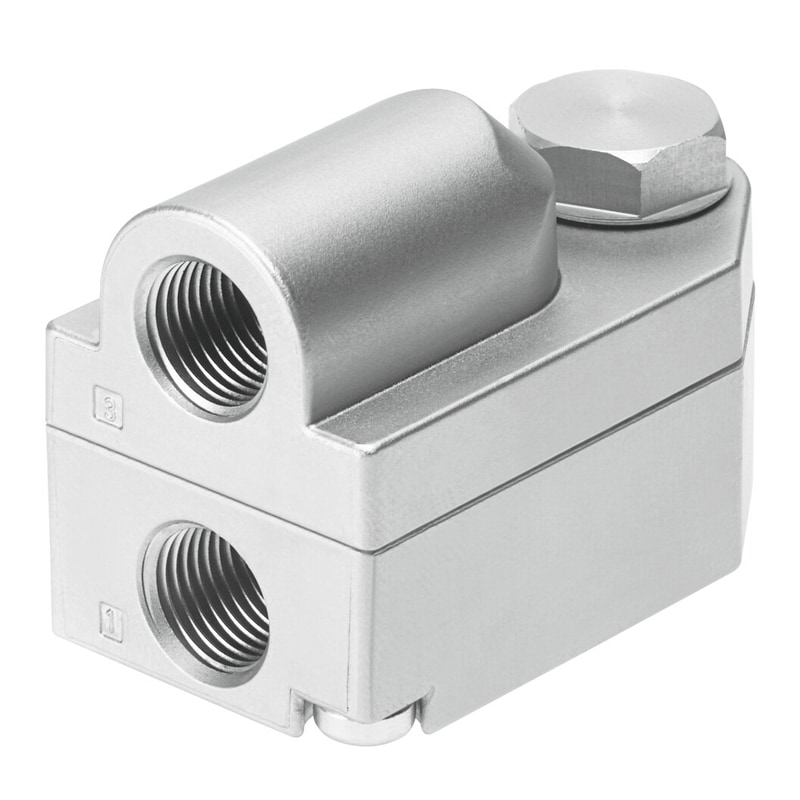

Stop valve with manual override option.

Type code HGL
Maritime classification See certificate
Valve function Unlockable non-return function
Pneumatic connection 1 G1/2
Pneumatic connection 2 G1/2
Pilot air port 21 G3/8
Actuation type Pneumatic
Type of mounting With external threadScrew-in
Operating pressure 0.5 bar … 10 bar
Pilot pressure 1 bar … 10 bar
Ambient temperature -10 °C … 60 °C
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Mounting position Any

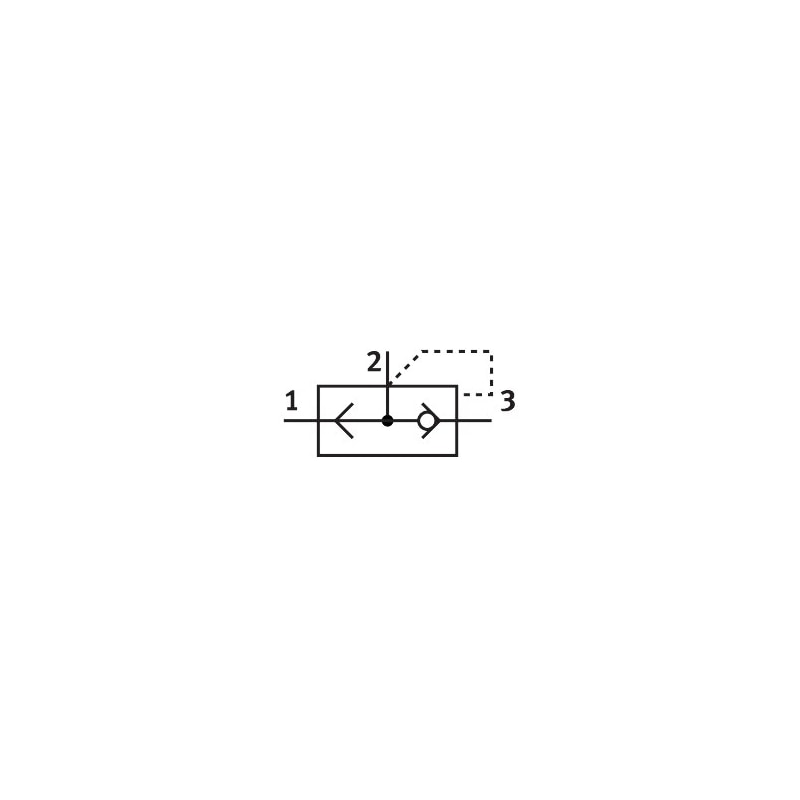

Symbol 00991456
Standard flow rate 1->2 (6-0) 2100 l/min
Standard nominal flow rate 1->2 (6-5) 1600 l/min
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
Storage temperature -10 °C … 60 °C
Temperature of medium -10 °C … 60 °C
Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Nominal tightening torque 14 Nm
Tolerance for nominal tightening torque ± 10%
Product weight 129.4 g
Note on materials RoHS-compliantFree of copper and PTFE
Seals material NBR
Hollow bolt material Wrought aluminum alloyAnodized
Releasing ring material POM
Non-return collar material NBR
Swivel joint material Die-cast zinc
