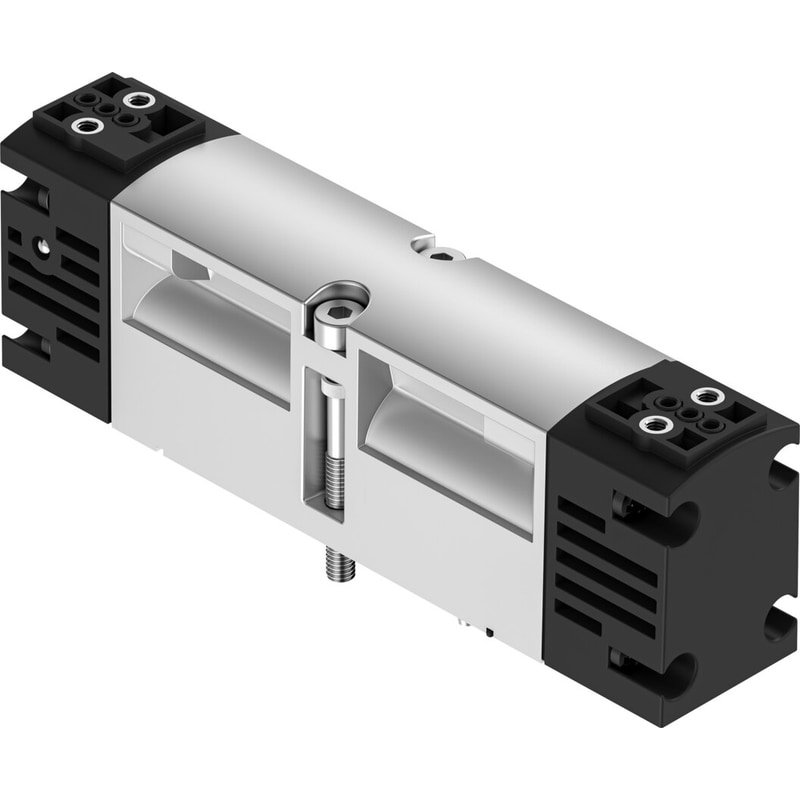

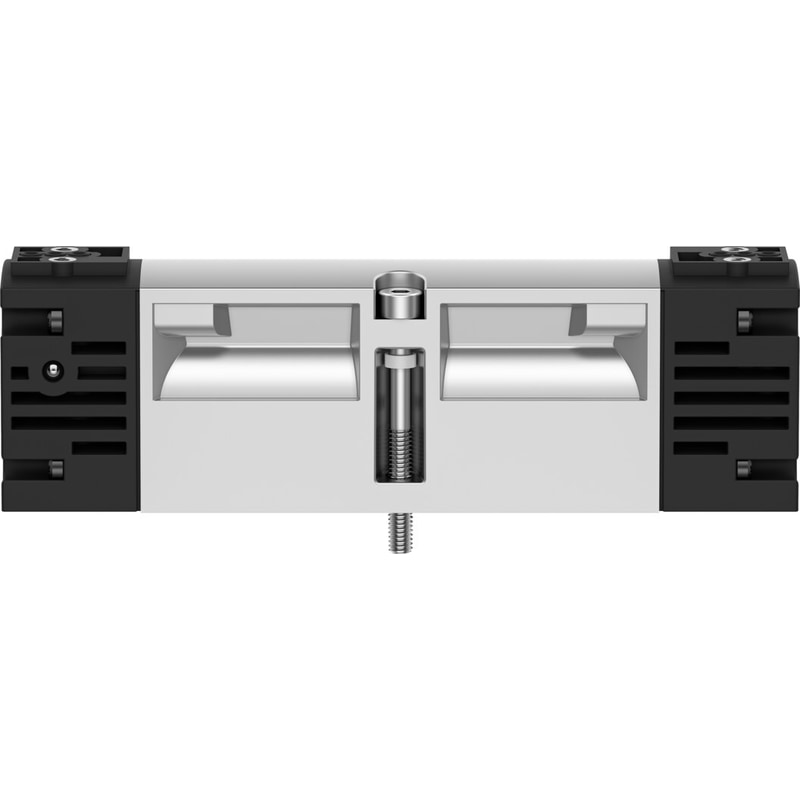

basic valve VSVA-B-B52-A2-P1 Width 18 mm Valve function=5/2 bistable, Type of actuation=electrical, Valve size=18 mm, Standard nominal flow rate=550 l/min, Operating pressure=2 – 10 bar

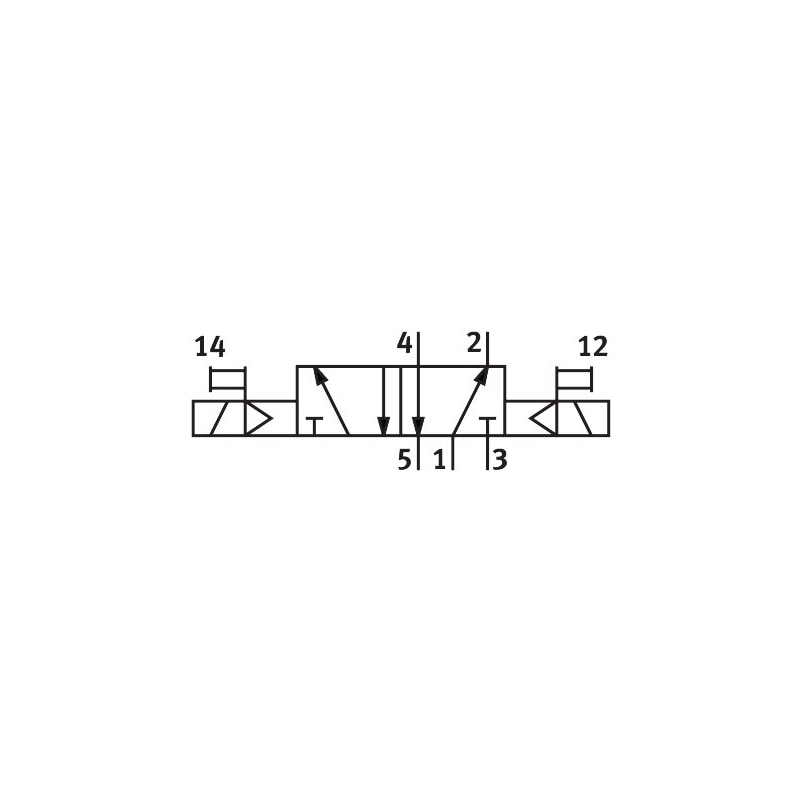

| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Valve size | 18 mm |
| Standard nominal flow rate | 550 l/min |
| Operating pressure | 2 … 10 bar |
| Design structure | Piston slide |
| Protection class | IP65NEMA 4 |
| Authorisation | c UL us – Recognized (OL) |
| Nominal size | 5 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | ISO 15407-1VDMA 24563 |
