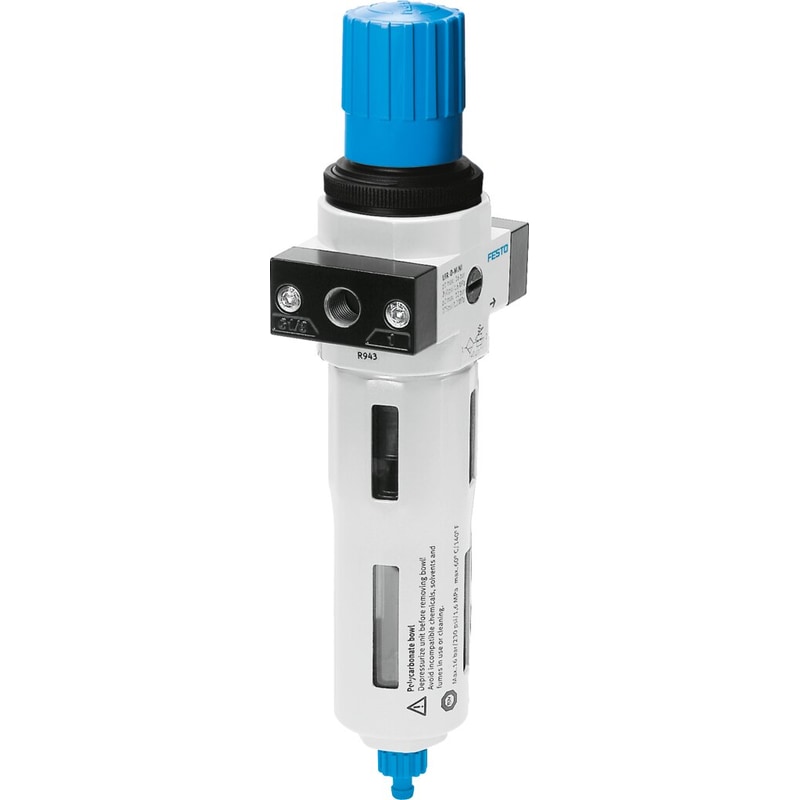

Name: Basic valve LFR-D-7-MAXI-A
Brand: Festo
SKU: 546471
Availability: InStock

filter regulator LFR-D-7-MAXI-A Output pressure max. 7 bar, without pressure gauge, 40 µ filtration grade. Size=Maxi, Series=D, Actuator lock=Rotary knob with lock, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm

Size	Maxi
Series	D
Actuator lock	Rotary knob with lock
Assembly position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	fully automatic
Design structure	Filter regulator without pressure gauge
Max. condensate volume	2.72 oz(l)
Bowl guard	Metal bowl guard
Pressure gauge	Prepared for G1/4
Operating pressure	28 … 180 Psi
Pressure regulation range	6.9 … 105 Psi
Max. pressure hysteresis	6 Psi

Weight	1.835789 lbs
Dimensions	12.598425 × 3.937008 × 2.952756 in
Size	Maxi
Series	D
Actuator lock	Rotary knob with detent
Mounting position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	Fully automatic
Structural design	Filter regulator without pressure gauge
Max. condensate volume	79.968 ml
Bowl guard	Metal bowl guard
Symbol	00991588
Pressure gauge	G1/4 prepared
Operating pressure	2 bar … 12 bar
Pressure regulation range	0.5 bar … 7 bar
Max. pressure hysteresis	0.414 bar
Normal nominal flow rate (normalized to DIN 1343)	42266.95 l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:9:-] \| Inert gas
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-10 °C … 60 °C
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [7:8:4], Inert gas
Temperature of medium	5 °C … 60 °C
Ambient temperature	5 °C … 60 °C
Product weight	1458.608 g
Type of mounting	With accessories
Note on materials	RoHS-compliant
Housing material	Die-cast zinc
Material of bowl	PC
