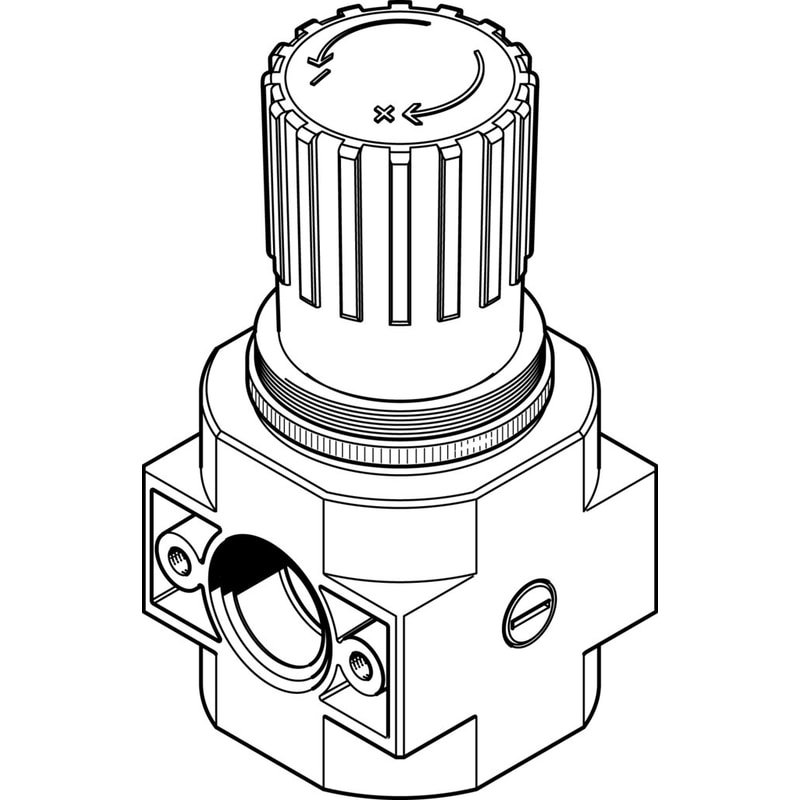

pressure regulator LR-D-MINI without threaded connecting plates. Size=Mini, Series=D, Actuator lock=Rotary knob with lock, Assembly position=Any, Design structure=directly-controlled diaphragm regulator
| Size | Mini |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with lock |
| Assembly position | Any |
| Design structure | directly-controlled diaphragm regulator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaust |
| Pressure gauge | Prepared for G1/8 |
| Operating pressure | 13.8 … 240 Psi |
| Pressure regulation range | 6.9 … 180 Psi |
| Max. pressure hysteresis | 3 Psi |
| Standard nominal flow rate | 28 cfm |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
