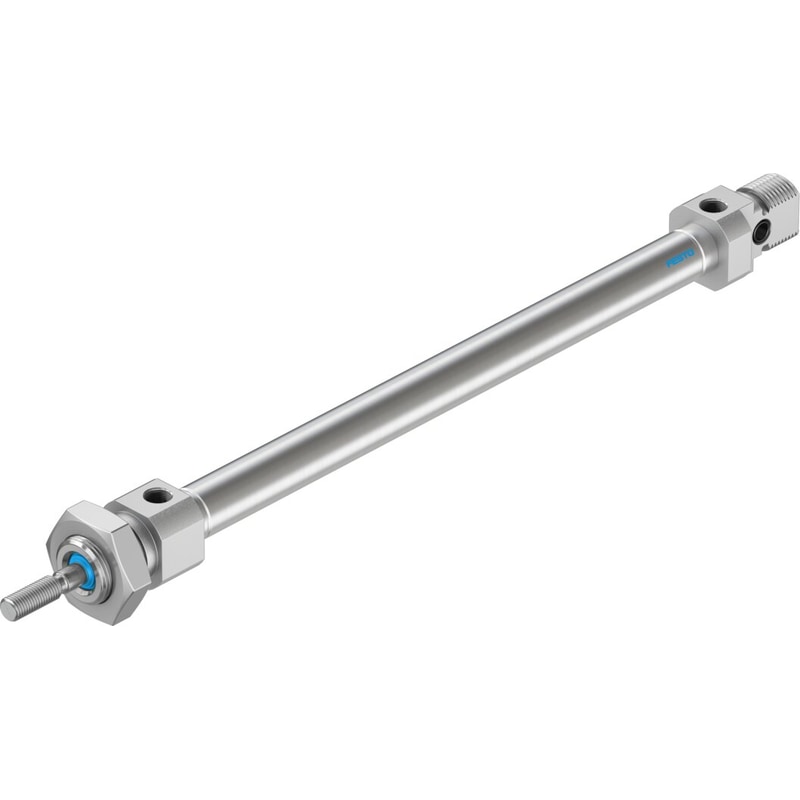

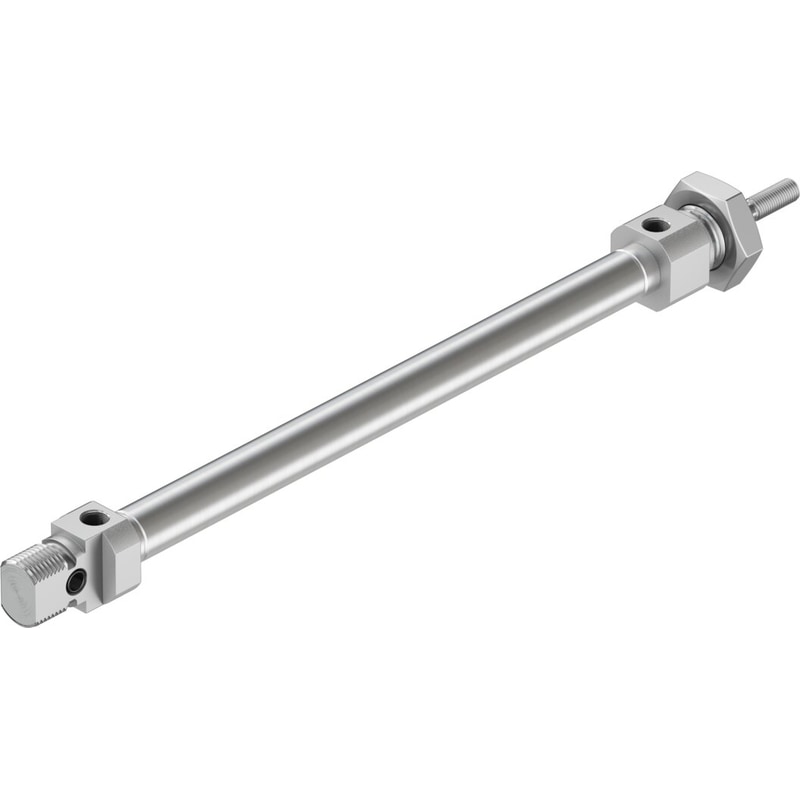

round cylinder DSNU-5/16″-4″-P-A Based on DIN ISO 6432, for position sensing Various mounting options, with or without additional mounting components. With flexible cushioning rings in the end positions. Stroke=4 “, Piston diameter=5/16”, Piston rod thread=UNC6-32, Based on the standard=ISO 6432, Cushioning=P: Flexible cushioning rings/plates at both ends
| Stroke | 4 “ |
|---|---|
| Piston diameter | 5/16″ |
| Piston rod thread | UNC6-32 |
| Based on the standard | ISO 6432 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rod |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 1 … 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
