signal converter SVE4-HS-R-HM8-2P-M8 Converts the analogue output signal of a sensor into switching points Authorisation=(* RCM Mark, * c UL us – Listed (OL)), UL ambient temperature=-20 – 60 °C, CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Free of copper and PTFE, Signal range=For position sensor SMH-S1-HG
| Authorisation | RCM Markc UL us – Listed (OL) |
|---|---|
| UL ambient temperature | ‘-20 … 60 °C |
| CE mark (see declaration of conformity)Â | to EU directive for EMC |
| Materials note | Free of copper and PTFE |
| Signal range | For position sensor SMH-S1-HG |
| Ambient temperature | ‘-20 … 70 °C |

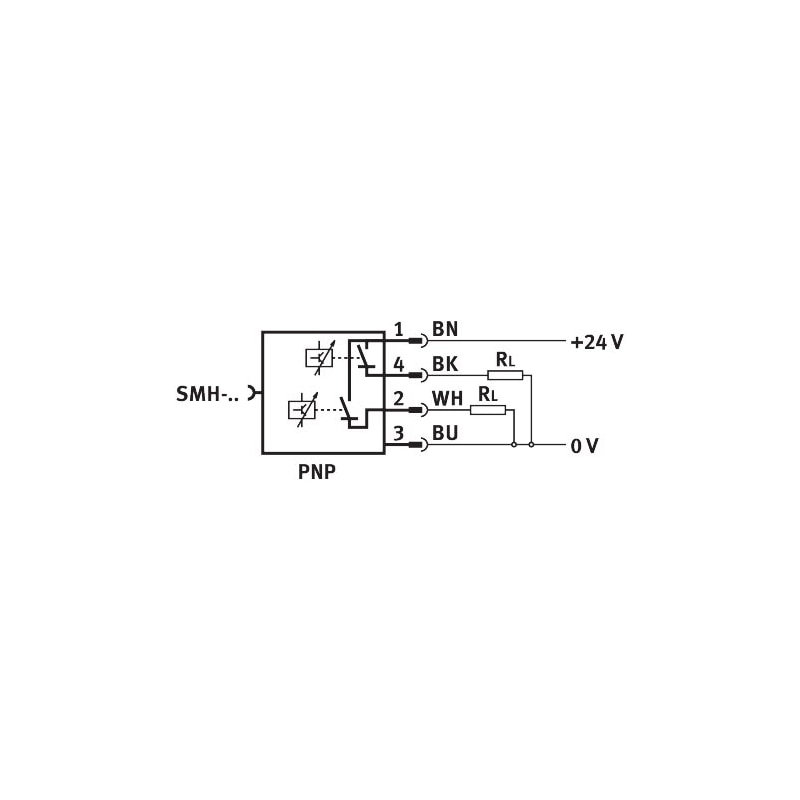

| Switch output | 2xPNP |
| Switching function | Freely programmable |
| Switching element function | Switchable |
| Short circuit strength | Pulsing |
| Overload withstand capability | Available |
| Operating voltage range DCÂ | 10 … 30 V |
| Electrical input connection | Plug socketM8x14-pinto EN 60947-5-2 |
