DGSL-10-100-Y3A

$1,175.59

SKU: 543960
UNSPSC: 31251504
GTIN: 4052568183042

SKU: 543960 Category: Tag:
Festo

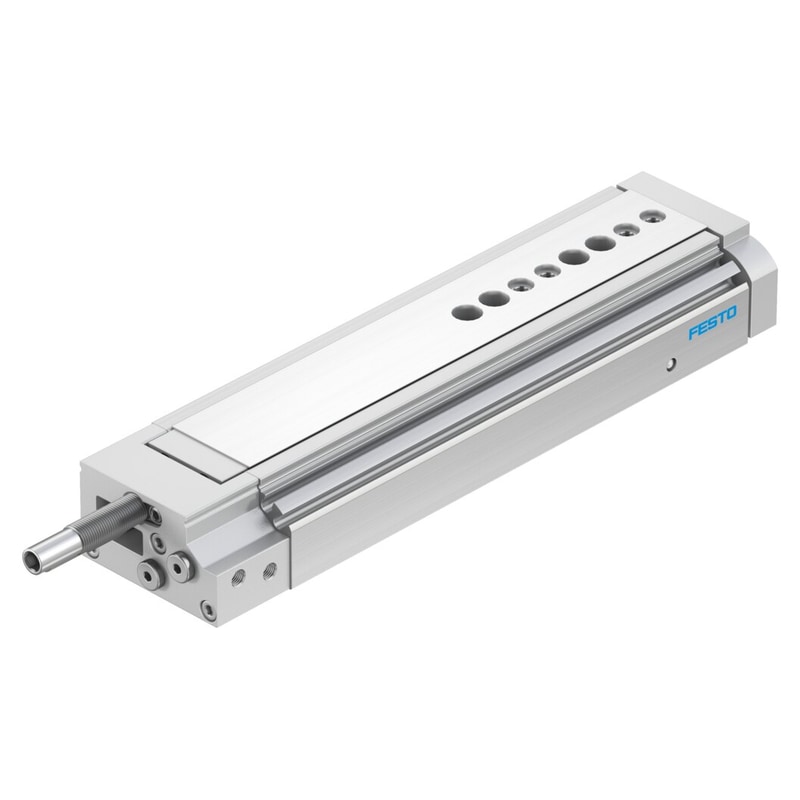

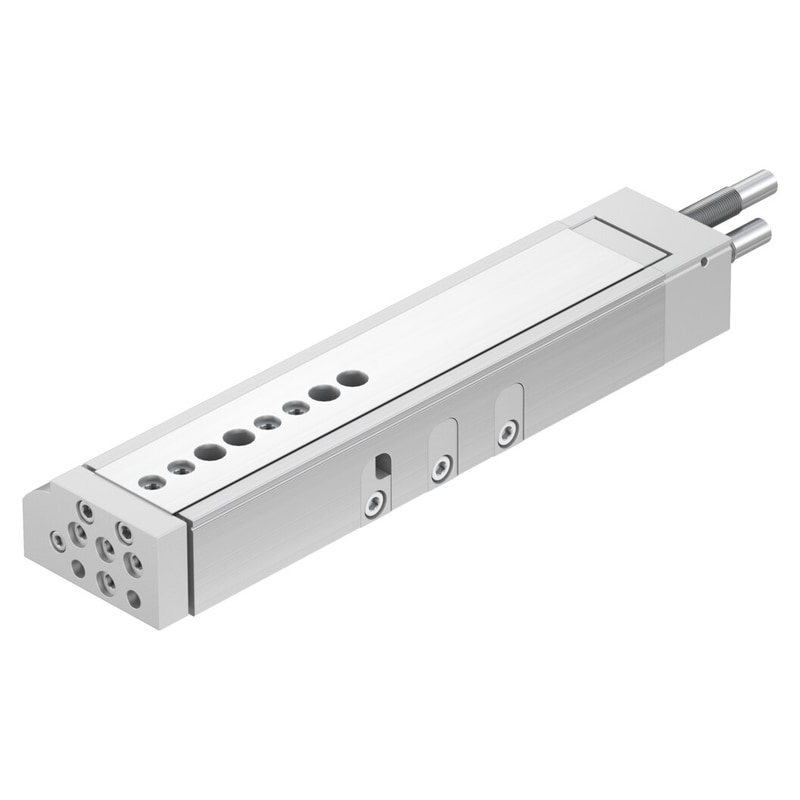

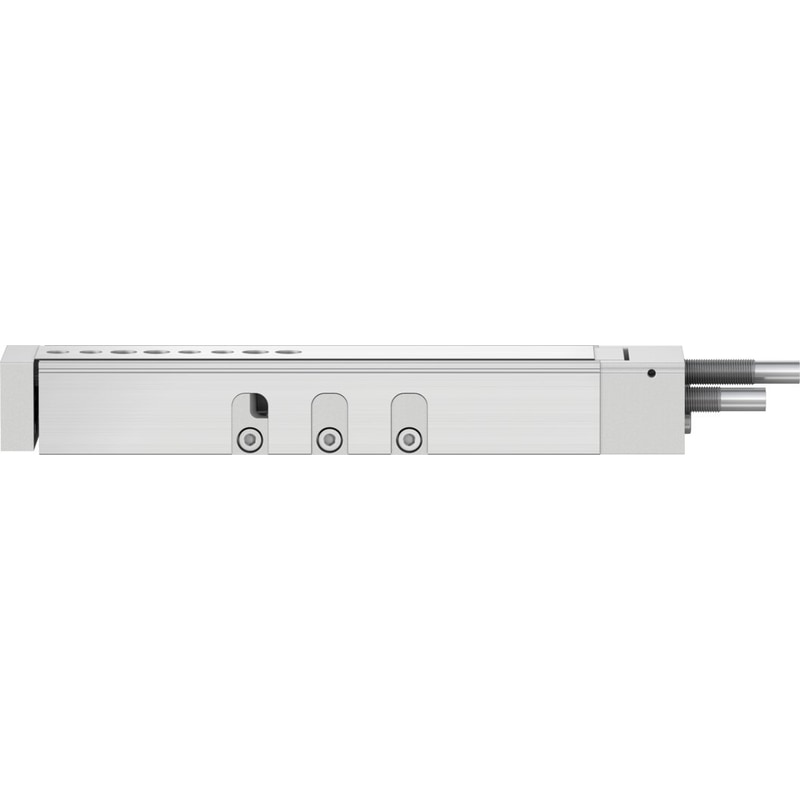

mini slide DGSL-10-100-Y3A For position sensing, with highly accurate, durable ball-cage guide and very high repetition accuracy, hydraulic shock absorbers on both sides (Y3). Stroke=100 mm, Adjustable endposition range/front length=72 mm, Adjustable endposition range/rear length=15 mm, Piston diameter=12 mm, Operating mode of drive unit=Yoke

Stroke  100 mm
Adjustable endposition range/front length  72 mm
Adjustable endposition range/rear length  15 mm
Piston diameter  12 mm
Operating mode of drive unit  Yoke
Cushioning  Y3: Shock absorber at both ends, progressive
Assembly position  Any
Guide  Ball bearing cage guide
Design structure  Yoke kinematics
Position detection  For proximity sensor
Operating pressure  1.5 … 8 bar
Max. speed  0.8 m/s
Repetition accuracy  ±0,01 mm
Stroke

100 mm

Adjustable endposition range/front length

72 mm

Adjustable endposition range/rear length

15 mm

Piston diameter

12 mm

Operating mode of drive unit

Yoke

Cushioning

Y3: Shock absorber at both ends, progressive

Assembly position

Any

Guide

Ball bearing cage guide

Design structure

Yoke kinematics

Position detection

For proximity sensor

Operating pressure

1.5 … 8 bar

Max. speed

0.8 m/s

Repetition accuracy

±0,01 mm
