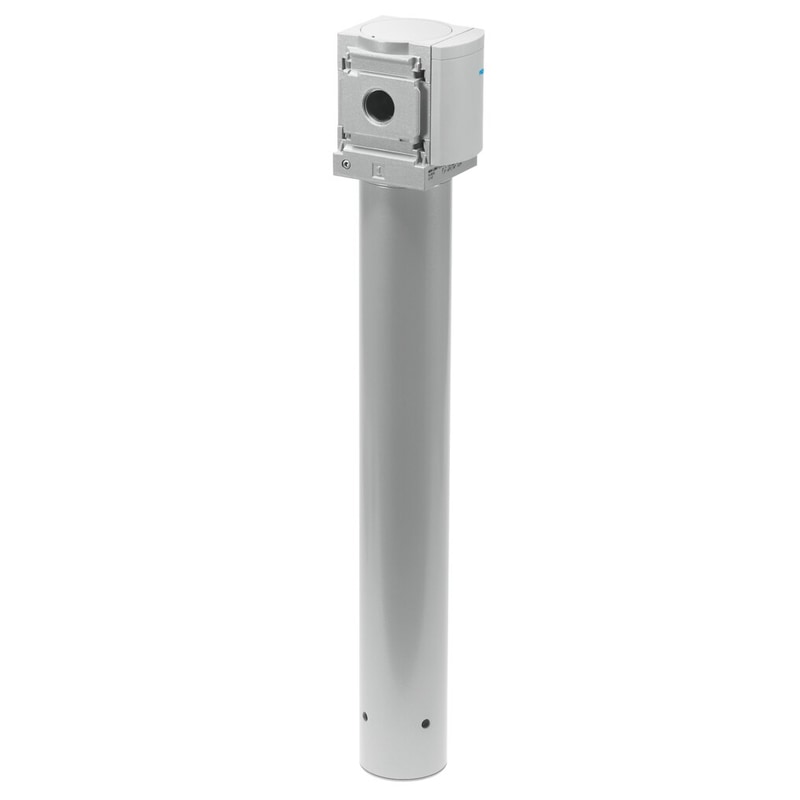

membrane air dryer MS4N-LDM1-1/8-P10 Reduced pressure dew-point, with metal bowl, direction of flow: from left to right Size=4, Series=MS, Assembly position=Vertical +/- 5°, Design structure=Membrane dryer, Operating pressure=3 – 12,5 bar
| product type | Membrane Dryer |
|---|---|
| Port Size | 1/8″ Port Connection |
| flow rate | 100L/min |
| Weight | 1.701969 lbs |
|---|---|
| Dimensions | 16.141732 × 7.874016 × 6.299213 in |
| Size | 4 |
| Series | MS |
| Mounting position | Vertical +/- 5° |
| Structural design | Membrane dryer |
| Symbol | 00991516 |
| Operating pressure | 3 bar … 12.5 bar |
| Normal nominal flow rate (normalized to DIN 1343) | 100 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Pressure dew point reduction | 20 K |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20 °C … 60 °C |
| For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:3:2] |
| Temperature of medium | 2 °C … 50 °C |
| Ambient temperature | 2 °C … 50 °C |
| Product weight | 530 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | 1/8 NPT |
| Pneumatic connection 2 | 1/8 NPT |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum |
| Material of bowl | Wrought aluminum alloy |
