Name: Pressure gauge PAGN-26-10-P10
Brand: Festo
SKU: 543488
Availability: InStock

pressure gauge PAGN-26-10-P10 With display unit in bar and psi. Indicating range [bar]=0 – 10 bar, Conforms to standard=EN 837-1, Nominal size of pressure gauge=26, Design structure=Bourdon-tube pressure gauge, Mounting type=Line installation

Indicating range [bar]	0 … 10 bar
Nominal size of pressure gauge	26
Design structure	Bourdon-tube pressure gauge
Mounting type	Line installation
Operating medium	Inert gasesNeutral fluids
Operating pressure	0 … 10 bar
Alternating load factor	0.66
Measurement accuracy class	4
Protection class	IP43NEMA 4
Medium temperature	‘-20 … 60 °C
Ambient temperature	‘-20 … 60 °C
Materials note	Conforms to RoHS
Position of connection	Rear side central

Weight	0.046958 lbs
Dimensions	1.771654 × 1.771654 × 1.771654 in
Display range	0 psi … 145 psi
Symbol	00991463
Pressure gauge nominal size	26
Explosion prevention and protection	Observe the information on the certificate, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Structural design	Bourdon tube pressure gauge without measuring mechanism
Type of mounting	Line installation
Operating medium	Inert gas \| Neutral liquids
Information on operating and pilot media	No acetylene, No oxygen
Operating pressure	0 psi … 145 psi
Intermittent load factor	0.66
Measurement accuracy class	4
Degree of protection	IP43, NEMA 4
Temperature of medium	-20 °C … 60 °C
Ambient temperature	-20 °C … 60 °C
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Note on materials	RoHS-compliant
Connection position	Centered on rear side
Pneumatic connection	Cartridge 10 mm
Materials in contact with the media	Brass
Material of screwed plug	Brass
Housing material	PA
Inspection window material	PS
Housing colour	Black
Product weight	15 g
Scale	Double scale, bar (außen), psi (internal)

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Pressure gauge PAGN-26-10-P10

Reviews

Reach Out

Connect With Us

Pressure gauge PAGN-26-10-P10

Reviews

Frequently Bought Together

U-1/2-B

VSVA-B-B52-ZD-A1-1T1L

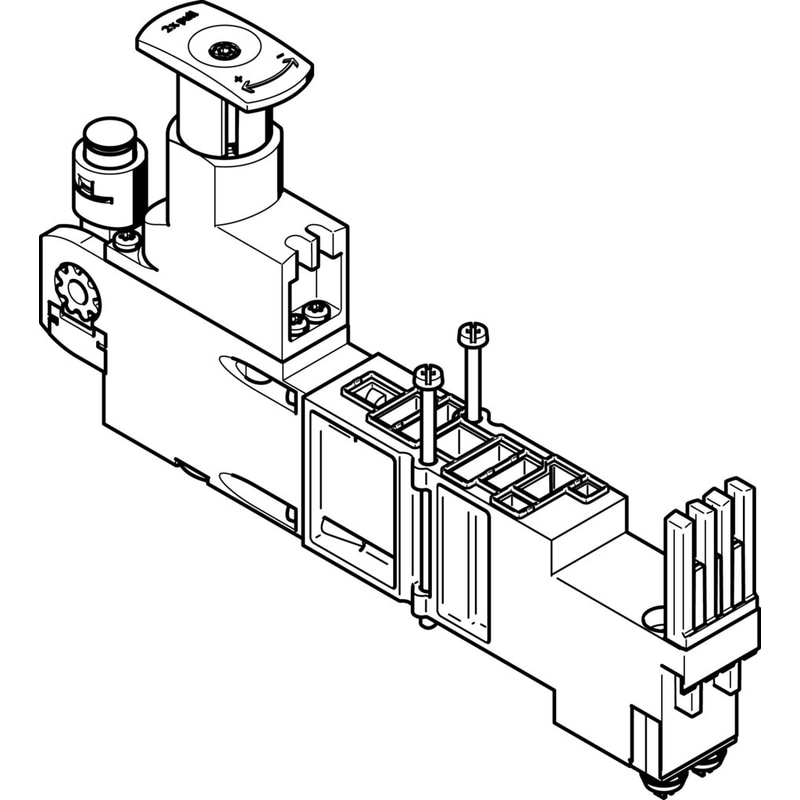

VMPA2-B8-R1C2-C-06
