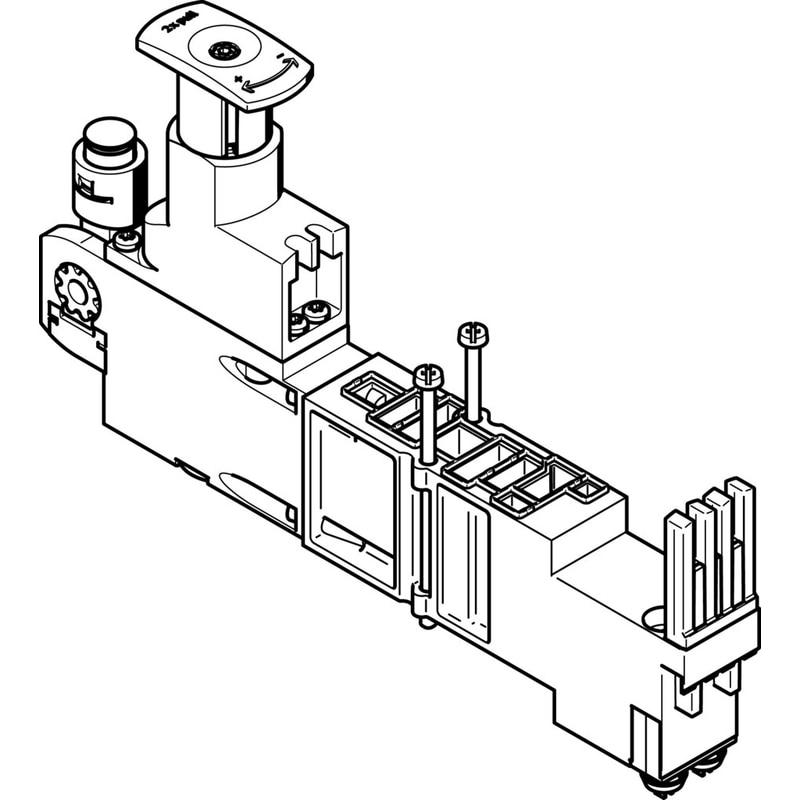

regulator plate VMPA2-B8-R3C2-C-10 Width=21 mm, Assembly position=Any, Pneumatic vertical stacking=Pressure regulator for 4, Controller function=(* Output pressure constant, * with secondary exhaust), Pressure gauge selection=possible
| Width | 21 mm |
|---|---|
| Assembly position | Any |
| Pneumatic vertical stacking | Pressure regulator for 4 |

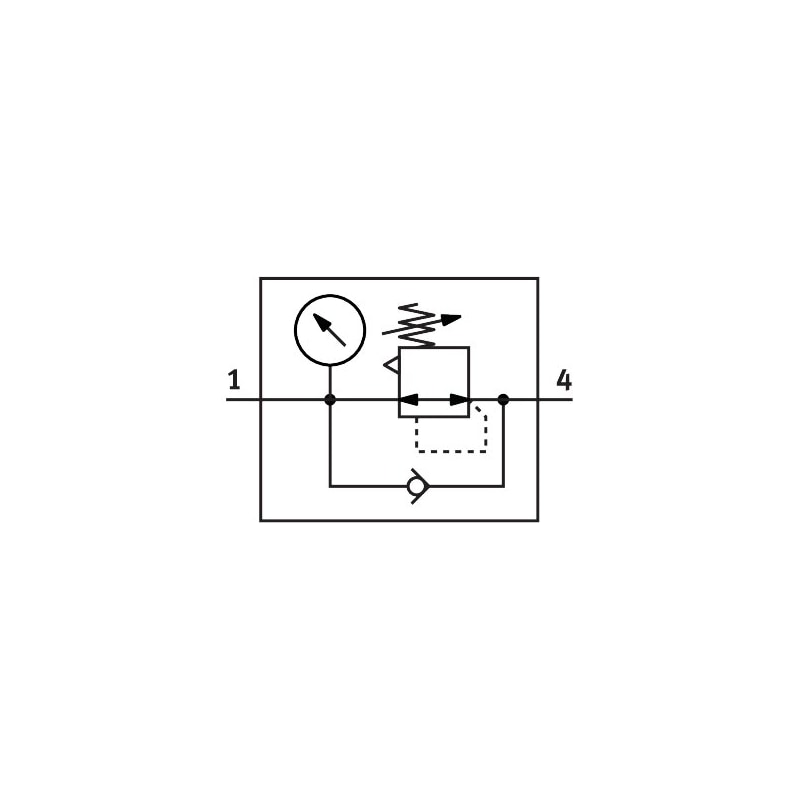

| Controller function | Output pressure constantwith secondary exhaust |
| Pressure gauge selection | possible |
| Pressure regulation range | 2 … 8.5 bar |
| Inlet pressure 1Â | 0.5 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Protection class | IP65to IEC 60529 |
| Ambient temperature | ‘-5 … 50 °C |
| Max. tightening torque | 0.65 Nm |
