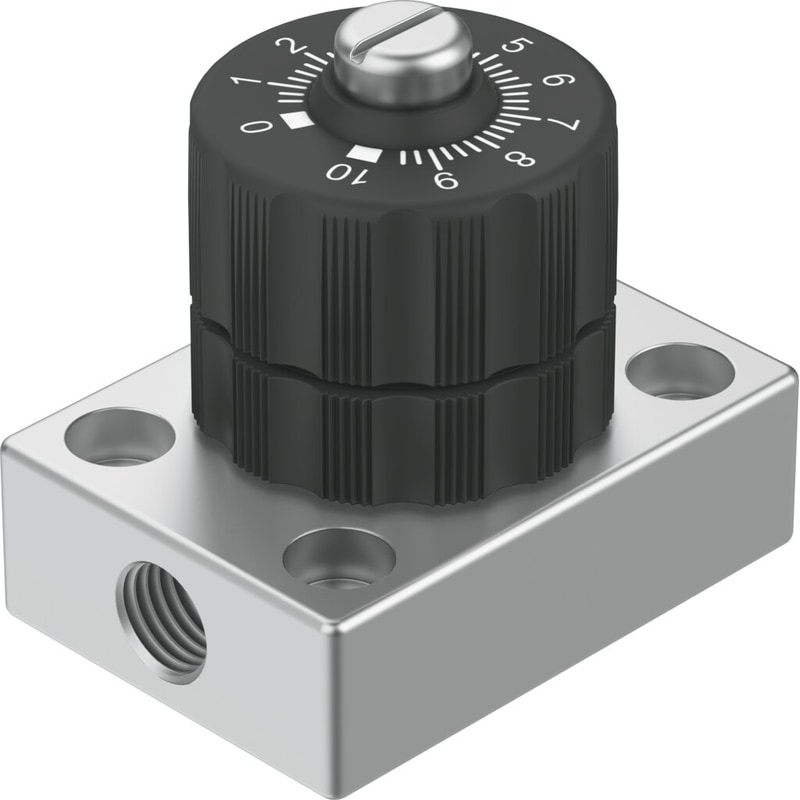

precision flow control valve GRPO-160-1/8-AL is used for precise adjustment of flow rate. Valve function=Throttle function, Pneumatic connection, port 1=G1/8, Pneumatic connection, port 2=G1/8, Type of actuation=manual, Adjusting element=Rotary knob with scale
| Valve function | Throttle function |
|---|---|
| Pneumatic connection, port 1Â | G1/8 |
| Pneumatic connection, port 2Â | G1/8 |
| Type of actuation | manual |
| Adjusting element | Rotary knob with scale |
| Mounting type | On sub-base |
| Standard nominal flow rate in flow control direction | 75.8 l/min |
| Operating pressure | 0 … 8 bar |
| Ambient temperature | ‘-10 … 50 °C |
| Material housing | PA-reinforced |
| Assembly position | Any |
| Operating pressure from 2 to 1Â | 0 … 0.5 bar |
| Standard nominal flow rate in flow control direction from 1 bar to 0 bar | 38 l/min |
