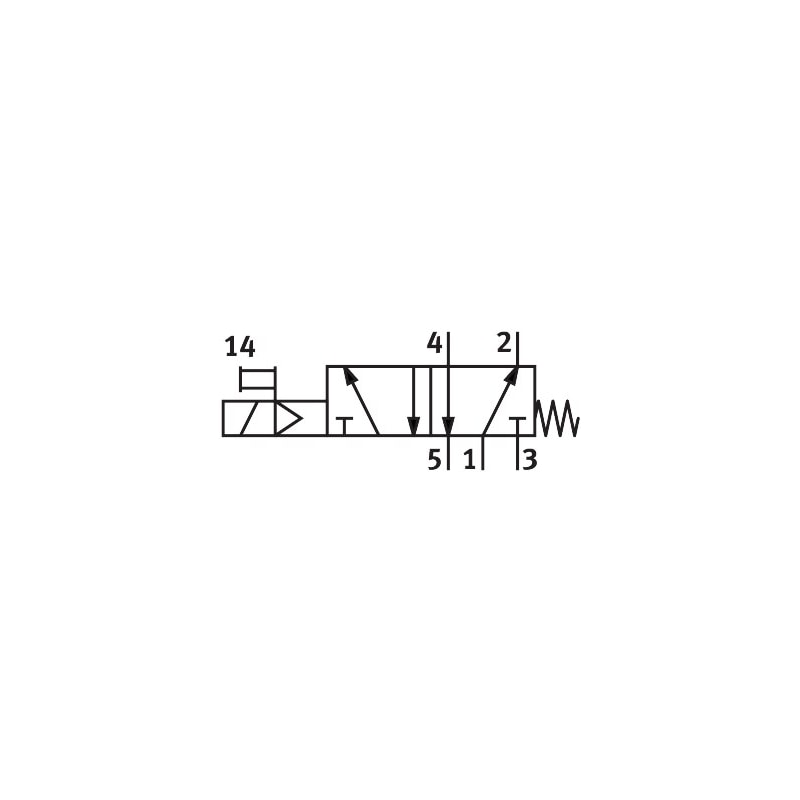

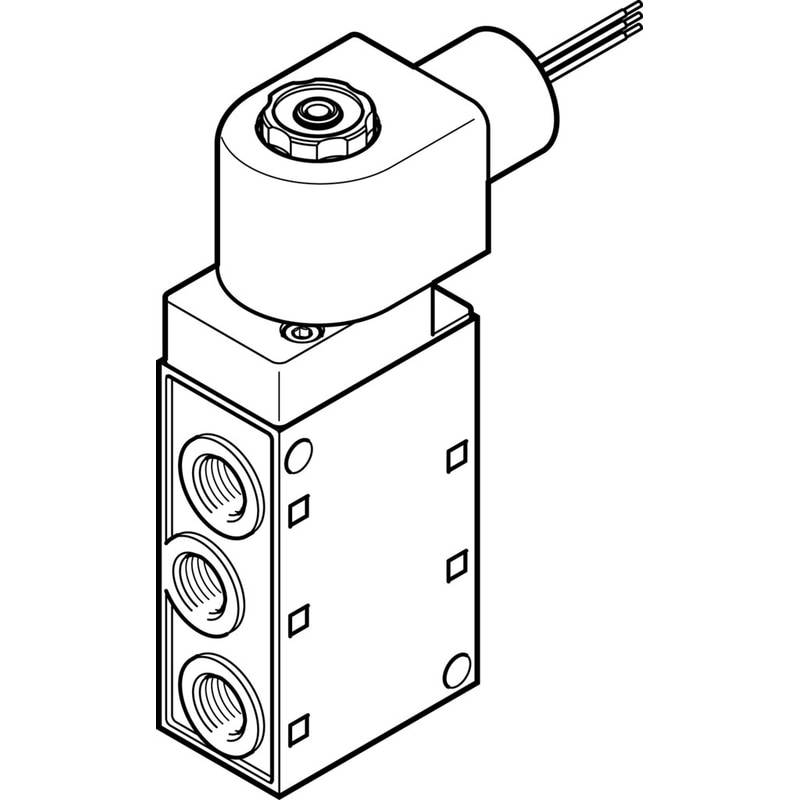

solenoid valve MFH-5-1/4-24-EX Valve function=5/2 closed, monostable, Type of actuation=electrical, Width=73 mm, Standard nominal flow rate=1000 l/min, Operating pressure=2,2 – 8 bar
| Valve function | 5/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 73 mm |
| Standard nominal flow rate | 1,000 l/min |
| Operating pressure | 2.2 … 8 bar |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Nominal size | 7 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detenting |
| Type of piloting | Piloted |
